Quick Details
-
Brand Name:
-
YINUO-LINK
-
Model Number:
-
YN-PS1005-A1
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
ethernet 5 Port passive poe switch
-
PoE Ports:
-
4
-
Warranty:
-
12 Months
-
Certification:
-
CE ROHS
-
Standard:
-
IEEE802.3, IEEE 802.3u,IEEE802.3af
-
Topology:
-
Star
-
MAC Add. Learning:
-
Auto learning and updating
-
OEM:
-
Support
-
Housing:
-
Metal Case
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.0G
-
Brand Name:
-
YINUO-LINK
-
Model Number:
-
YN-PS1005-A1
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
ethernet 5 Port passive poe switch
-
PoE Ports:
-
4
-
Warranty:
-
12 Months
-
Certification:
-
CE ROHS
-
Standard:
-
IEEE802.3, IEEE 802.3u,IEEE802.3af
-
Topology:
-
Star
-
MAC Add. Learning:
-
Auto learning and updating
-
OEM:
-
Support
-
Housing:
-
Metal Case

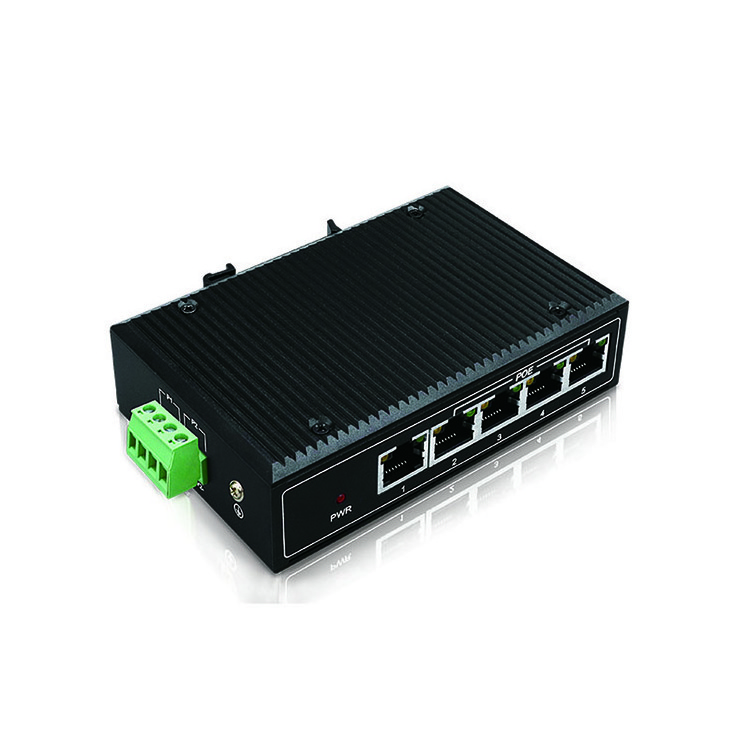

YN-SF105P Industrial Ethernet PoE Switch
Industrial 10/100Mbps Ethernet PoE switch, designed for industrial environment.
1. Support two power access at the same time.
2. Support redundant power supply.
3. Support reverse protection, short circuit overcurrent protection, and surge protection, to ensure uninterrupted work of the device.
4. Industrial grade operating temperature: -30℃~75℃.
5. Redundant backup, greatly improving product power supply reliability.
6. Installation support DIN-rail mounting.
7. High EMC protection level, can work in various harsh environments.
8. Support IEEE 802.3af/at standard, Single port output power to 30W.
9. IP30 Protection can reduce the impact of dust.
10. Aluminum alloy shell, solid and durable.
2. Support redundant power supply.
3. Support reverse protection, short circuit overcurrent protection, and surge protection, to ensure uninterrupted work of the device.
4. Industrial grade operating temperature: -30℃~75℃.
5. Redundant backup, greatly improving product power supply reliability.
6. Installation support DIN-rail mounting.
7. High EMC protection level, can work in various harsh environments.
8. Support IEEE 802.3af/at standard, Single port output power to 30W.
9. IP30 Protection can reduce the impact of dust.
10. Aluminum alloy shell, solid and durable.
| Standard: | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3AF/AT |
| Protocol: | CSMA/CD |
| Data Transfer Rate: | Ethernet:10Mbps (Half Duplex), 20Mbps (Full Duplex) |
| Fast Ethernet: | 100Mbps (Half Duplex), 200Mbps (Full Duplex) |
| LED Indication: | Power, Link/Act |
| Network Media (Cable): |
10Base-T:UTP category 3,4,5 cable (maximum100m) EIA/TIA-568 100ΩSTP(maximum100m)
100Base TX:UTP category 5, 5e cable(maximum100m), EIA/TIA-568 100ΩSTP (maximum100m) |
| Port: | 5*10/100Mbps RJ45 ports |
| Transfer Method: | Store and Forward |
| Frame Forward Rate: |
0Base-T:14881pps/Port
100Base TX:148810pps/Port |
| MAC Address Learning: | Automatically learning, automatically aging |
| Installation: | DIN-rail mounting |
| Dimensions: | 118*75*33.5mm |
| Environmental: |
Operating Temperature: -30
℃
~ 75
℃
Storage Temperature: -30 ℃ ~ 75 ℃ Operating Humidity: 10%RH ~90%RH(non-condensing) Storage Humidity: 5%RH ~ 90%RH(non-condensing) |
| Packaging accessories : | Rail buckle (standard, with 2 screws), power socket, Quick Installation Guide & Warranty Card |
