Quick Details
-
Weight (KG):
-
2100 KG
-
Power (kW):
-
3
-
Power:
-
3kw
-
Machine Size:
-
3000*850*1200mm
-
Frequency:
-
14times/min
-
Name:
-
bamboo toothpick making machine
-
Application:
-
Bamboo processing
-
Usage:
-
toothpick; chopsticks;bbq sticks
-
Function:
-
Multifunctional
-
Raw material:
-
wood; bamboo
-
Package:
-
Wooden Case
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shuliy
-
Machine Type:
-
toothpick machine
-
Weight (KG):
-
2100 KG
-
Power (kW):
-
3
-
Power:
-
3kw
-
Machine Size:
-
3000*850*1200mm
-
Frequency:
-
14times/min
-
Name:
-
bamboo toothpick making machine
-
Application:
-
Bamboo processing
-
Usage:
-
toothpick; chopsticks;bbq sticks
-
Function:
-
Multifunctional
-
Raw material:
-
wood; bamboo
-
Package:
-
Wooden Case
Good Quality Bamboo Splitting Machine / Wood Splitting Machine / Toothpick Making Machine
Process flow :
Selecting the raw bamboo--sawing & cutting--splitting--slicing--drawbench--Chemical Treatment (bleachning and sterilizing)--Rinsing--Drying--Cutting into certain length--Polishing--sharpening and engraving--Packing
Introduction:

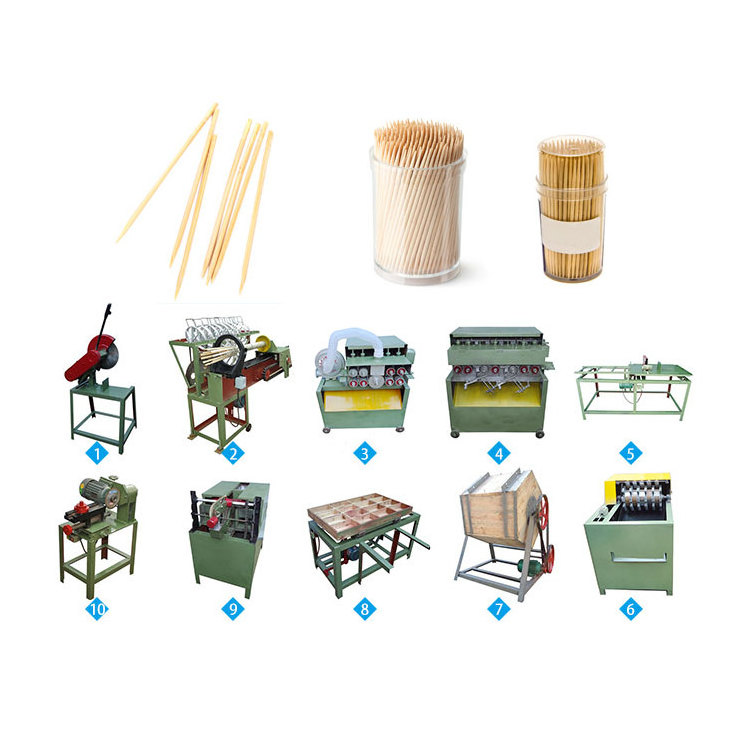

1.The above 10 sets are a production line, producing two pointed toothpicks, with an output of 800,000 in 8 hours, about 100 kg.
2.It is necessary to operate 4-6 employees, using industrial power 380v. One machine of No. 9 was added, and the output doubled, which was 1.6 million.
3. If the user wants to produce a bamboo toothpick with a pointed flower, then replace the No. 9 machine (one sharpening machine), and the same 10 machines are one set. The output of the 8 hours is 600,000, and the number 9 is increased. One), the output doubled, it was 1.2 million.
|
Model |
Raw bamboo sawer |
Bamboo dissection machine |
Fixed thickness and width slicer |
Bamboo filament shaping machine |
Bamboo filament set-size machine |
Polishing machine |
Sharpen machine |
|
Motor |
2.2 KW |
3 KW |
3.7 kw |
8.1-10.2 kw |
0.75 kw |
2.2. kw |
0.37 kw |
|
Working data |
150mm depth/ time |
1.5m/s |
85 m/min |
60m/min |
350 mm |
0.35 m³ |
Speed of rotator 2800 time/min |
Features:
1) Timber dividing and slicing machine
2) Wood wool molding machine
3) Wood wool size setting machine
4) Polishing machine
5) Toothpick size setting machine
6) Toothpick mincing machine
7) Multi-sharpen machineTotal output: 1,200,000pcs/8 hours
Zhengzhou Shuliy machinery Co., Ltd. was found in 2000. Our company specializes mainly produce wood bamboo processing machine . We not only provides customers with cost-effective products, but also provides first-class service support and solutions. Shuliy has passed SGS, ISO, T U V, CE, BV and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
Q1: Are you manufacturer or trade company?
A1: We are a professional manufacturer over 10 years .
Q2: How can I solve the problem I encountered?
A2: English manuals and videos will be provided for showing how to solve the problem.
Q3: How is the quality of your product?
A3: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q4: How long is your warranty?
A4: One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.
Q5: How about the price?
A5: We are a professional manufacturer and be able to p rovide you with the lowest price than market one . We will give you the best quotation.
