Quick Details
-
Model Number:
-
YTM-Z
-
Input voltage:
-
AC220V 50Hz
-
Output voltage:
-
0-50kV
-
Capacity:
-
5kVA
-
Quantity of tests:
-
6 pieces each time
-
Display:
-
LCD display, with all English operational menu
-
Protection fuction:
-
over-current protection; over-voltage protection
-
Setting function:
-
setting time, voltage and leak current value
-
Printer function:
-
can print the voltage and leaked current value of each tested item
-
Measuring accuracy:
-
Voltage ± 2% ( ± 3 digit ), current ± 2% ( ± 3 digit)
-
Weight:
-
Control box: 12kg; Test bench: 60kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
YTM-Z
-
Input voltage:
-
AC220V 50Hz
-
Output voltage:
-
0-50kV
-
Capacity:
-
5kVA
-
Quantity of tests:
-
6 pieces each time
-
Display:
-
LCD display, with all English operational menu
-
Protection fuction:
-
over-current protection; over-voltage protection
-
Setting function:
-
setting time, voltage and leak current value
-
Printer function:
-
can print the voltage and leaked current value of each tested item
-
Measuring accuracy:
-
Voltage ± 2% ( ± 3 digit ), current ± 2% ( ± 3 digit)
-
Weight:
-
Control box: 12kg; Test bench: 60kg

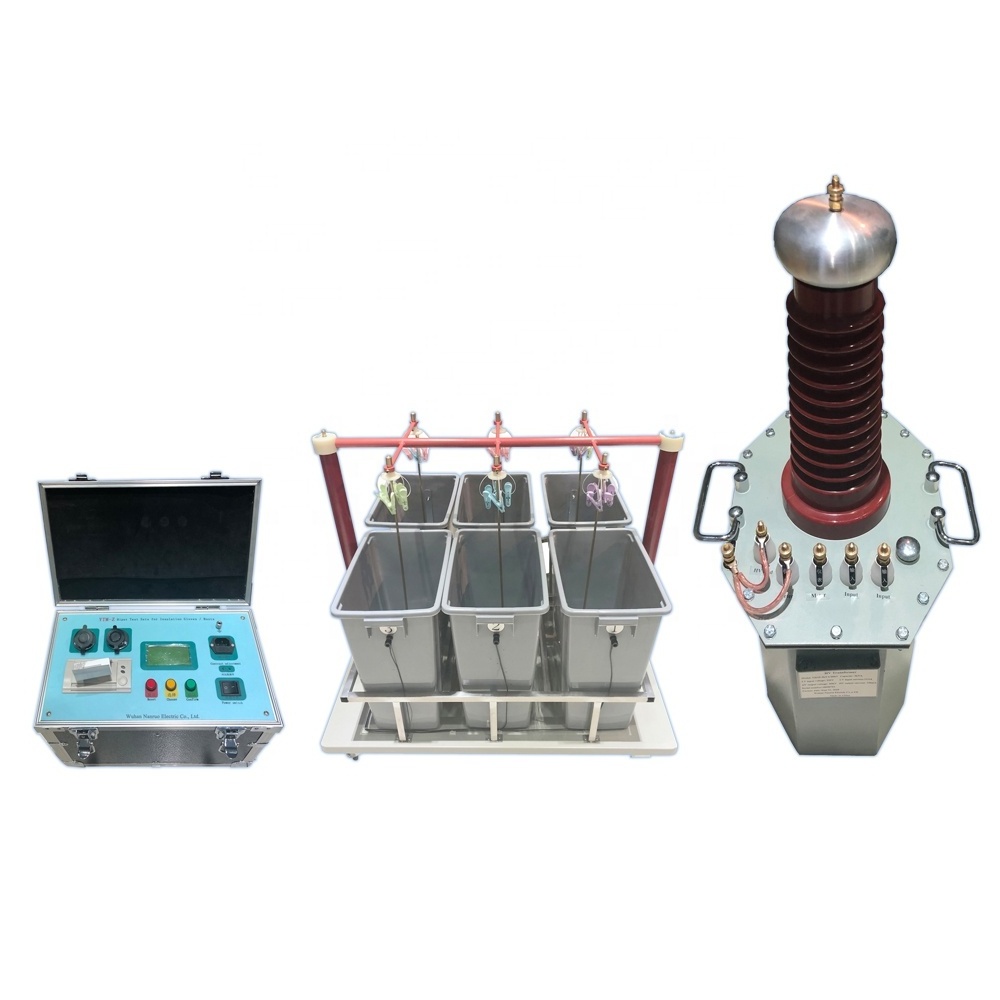

YTM-Z insulating rod and insulation boot test set usage insulated glove hipot tester
1. Producct Introduction
YTM-Z Insulated gloves Hipot Tester is a special equipment for withstand voltage test on insulation boots/ gloves/ rods and other personal protective equipment . It also can test the safety equipment, such as insulation screwdriver and insulation pad etc. The test equipment is comply with the advice of the majority of users. The product has improved work efficiency and protect the working security, it is an ideal special equipment for insulated boots (gloves) test.
2. Technical specification:
|
Item |
Parameter |
|
Input voltage |
AC220V 50Hz |
|
Output voltage |
0-50kV |
|
Capacity |
5kVA |
|
Quantity of test |
6 pieces each time |
|
Display |
LCD display, with all English operational menu |
|
Protection fuction |
over-current protection; over-voltage protection |
|
Customize function |
setting time, voltage and leak current value |
|
Printer function |
can print the voltage and leaked current value of each tested item |
|
Measuring accuracy |
Voltage ± 2% ( ± 3 digit ), current ± 2% ( ± 3 digit) |
|
Weight
|
Controller: around 12kg |
| Test vehicle: around 32.5kg | |
| HV transformer: around 45kg |
3. Product features
1), High voltage, leakage current, withstand voltage time status information and other data will be displayed LCD screen at the same time, with backlight, clear reading and is intuitive.
2), English interface, status notification, reminders, guided working, the operation is simple and straightforward.
3), Light touch panel keys operation, all functions can be set through the keys, to improve product safety and reliability.
4), Full digital calibration, eliminating the old potentiometer adjustment method, the scene extremely easy to use.
5), Adopt hardware and software anti-jamming technology, with stable performance and strong anti-interference.
3. Product Accessories
| Serial No | Description | Quantity | Unit |
| 1 | High voltage transformer | 1 | piece |
| 2 | Controller | 1 | piece |
| 3 | Test vehicle of insulating gloves | 1 | piece |
| 4 | Operation manual | 1 | copy |
| 5 | Factory test report | 1 | copy |
| 6 | Warranty card | 1 |
copy |
(1) Packing with standard fumigation-free plywood case for sea and air transport.
(2) Transporting according to customer's requirement, usually lighter products are transported by Air, and heavy products are transported by Sea.
