Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JF
-
Model Number:
-
TVCF19
-
Certification:
-
ISO9001, ISO14001, RoHS
-
Height:
-
1.5mm~4.3mm
-
Color:
-
Yellow, Nickel plating
-
Packing:
-
Reel
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12V DC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JF
-
Model Number:
-
TVCF19
-
Certification:
-
ISO9001, ISO14001, RoHS
-
Height:
-
1.5mm~4.3mm
-
Color:
-
Yellow, Nickel plating
-
Packing:
-
Reel
| Default type for ordering | ||||||||

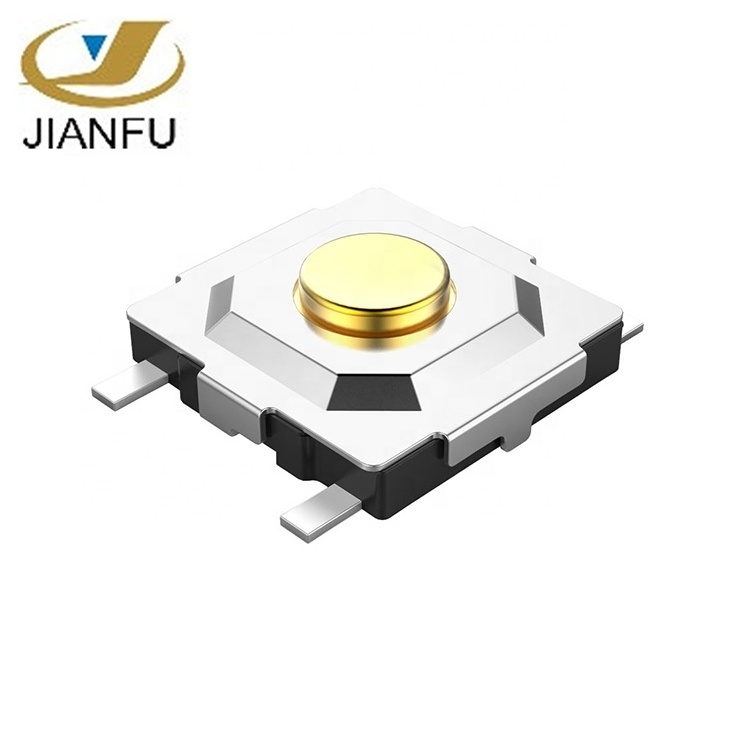

| Product type: | TVCF19-015CY-R | |||||||
| Size: | 5.2x5.2x1.5mm | |||||||
| Operating force: | 250gf | |||||||
| Color: | Black base and brass button | |||||||
| Cover shape | Square | |||||||
| RATING: | 50mA. 12V DC | |||||||
| LIFETIME: | 100,000 cycles | |||||||
| CONTACT RESISTANCE: | 100 m Ω max | |||||||
| INSULATION RESISTANCE: | 100 M Ω min. @ 100V DC | |||||||
| DIELECTRIC STRENGTH: | 250 VAC for 1 min | |||||||
| OPERATING TEMPERATURE: | -30ºC to +85ºC | |||||||
Q1.Are you a factory or trading company?
A1.We are a manufacturer which specializes in switch for 17 years, Our price is pretty competitive.
Q2.How does your factory do regarding quality control?
A2.Our Quality control Department is extremely responsible for quality checking from all raw material to the finished goods in each process with professional machines and testers .
Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.
Q4.Can you provide some samples for me?
A4.We can provide free samples to you,but you should afford the shipping fee yourself.
Q5.What is the price of shipping?
A5.Depending upon the port of delivery, price varies.
Q6.Do you accept small orders?
A6.Of course.We will do our best to serve you no matter what the quantity is.
