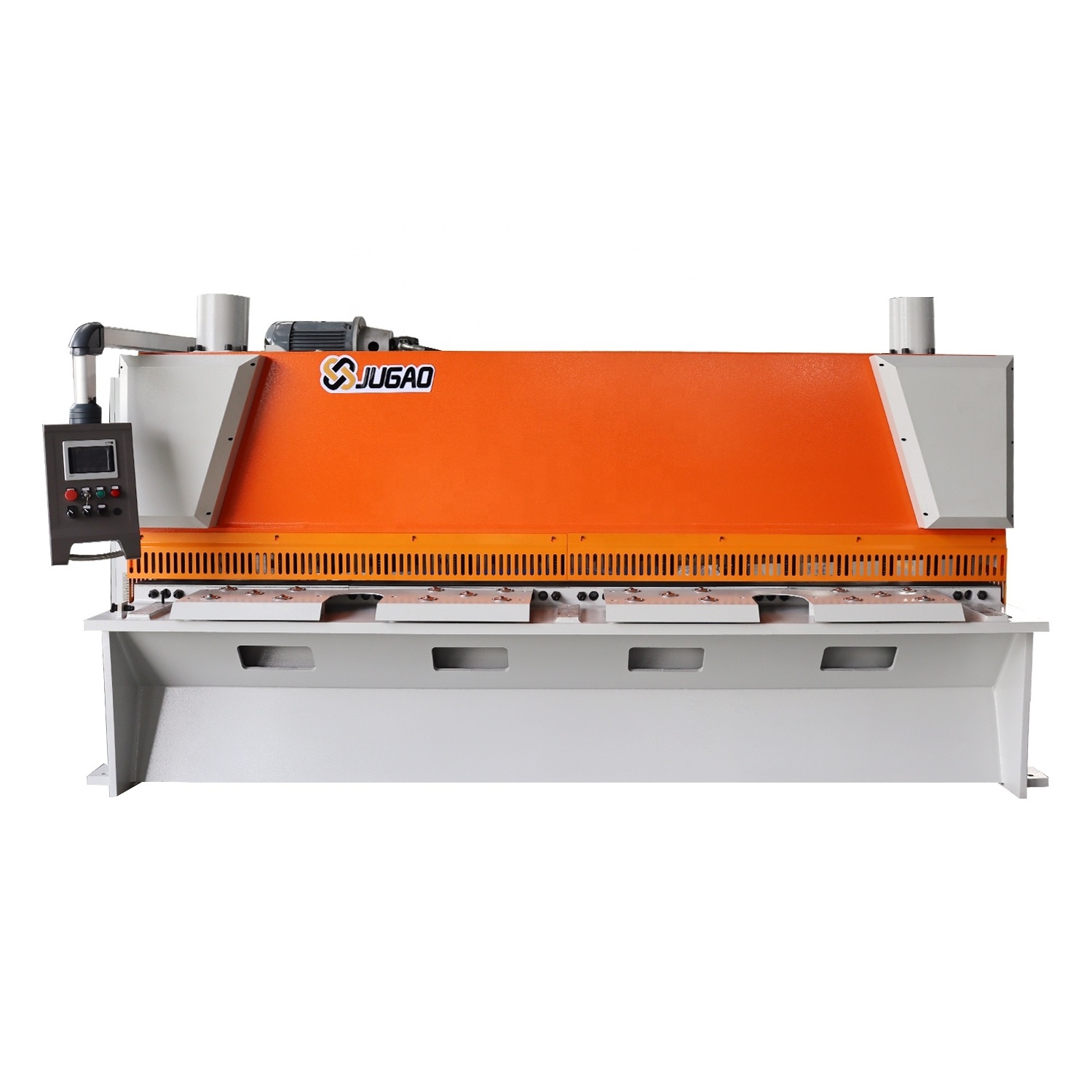

Hydraulic Guillotine Metal Shearing Machine With Pneumatic Back Support Guillotine Shears

Hydraulic Guillotine Metal Shearing Machine With Pneumatic Back Support Guillotine Shears

Performance characteristics

1.Cutting angle can be adjusted. It is used for cutting metal sheets of different materials. So as to ensure cutting quality.

2. Four edges of blade can be used. So service life of blade is double that of ordinary machines.

3. Electric blade edge clearance adjustment. Simpler operation.

4. Upward movement of the blade is controller by accumulator . No need to add nitrogen gas in future use.

5. Cutting steel plate with thickness greater than 12mm. The cutting quality is better.

STANDARD EQUIPMENTS

√ Hardened blades.

- Top blades : 2 sides

- Bottom blades : 4 sides

√ E21S controller.

√ 250mm throat depth.

√ 600mm motorized backgauge system with 0,1 mm accuracy.

√ 800mm side gauge and front support arms.

√ Metric and inch rulers.

√ Front, side and back safety panels which are suitable for CE norms.

√ Sheet sliding system.

√ Schneider Electric System.

√ Rexroth hydraulic system.

√ Hold down cylinders.

√ Moveable foot pedal.

√ Manual  blade gap adjustment.

√ Emergency stop button.

√ Collapsible finger protection.

OPTIONAL EQUIPMENTS

√ Optional throat depth.

√ Front angle gauge.

√ Side gauge and front support arms in optional lengths.

√ Sheet conveyor and stacking system.

√ Front Gauge X1, X2 axis and backgauge X3, X4 axis.

√ Optional backgauge stroke.

√ Sheet support system for thin sheets.

1- Pneumatic support system. (Lever type)

2- Pneumatic support system. (Monobloc panel type)

√ Hydraulic oil cooling and heating system.

√ Optional solid table.

√ Stainless steel blades.

√ Ability to increase stroke amount per minute.

√ Light safety system for finger protection.

√ Optional alternative colors.

√ Coolant system or heater can be placed in electric panel during ambient conditions.

√ Double foot pedal.

√ Electrical panel or controller can be placed on right side of the machine.

√ Laser cutting line.

√ Central lubrication system.

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
