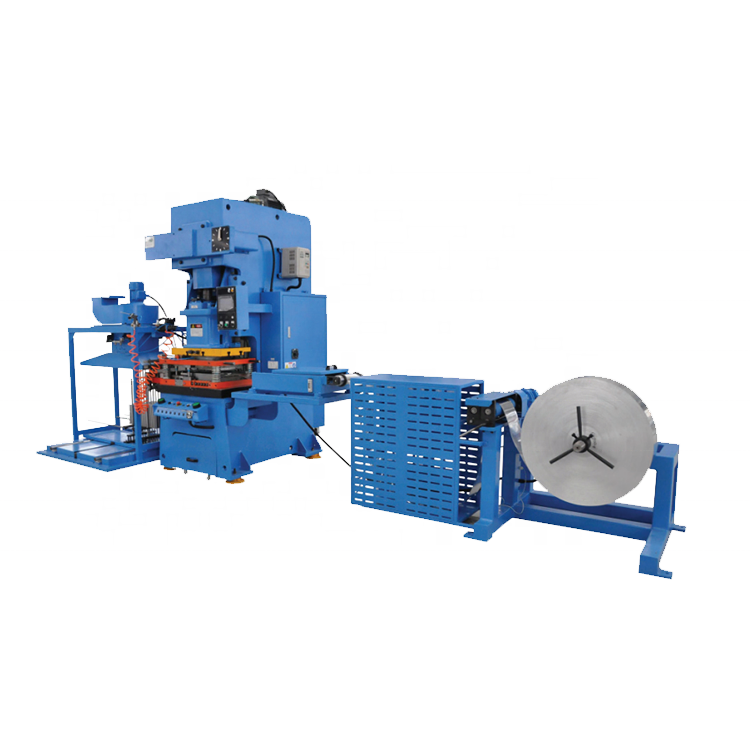

ZJMECH fin press production line for air condition fin coil machine

ZJMECH fin press production line for air condition fin coil machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $25460

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: fin press production line

Color:: as your requirement

Brand:: ZJMECH

Function:: Fin Press

Power supply:: 11 kw

Refrigerant:: Yes

Voltage:: As customer

Quick Details

Weight (KG):: 100

Place of Origin:: Jiangsu, China

Brand Name:: SMAC

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: fin press production line

Color:: as your requirement

Brand:: ZJMECH

Function:: Fin Press

Power supply:: 11 kw

Refrigerant:: Yes

Voltage:: As customer

Recommend Products

Products Description

Characteristic：

⭐The slide has hydro-lifting function which will be convenient for dies installation/commissioning;

⭐ Power press speed & vacuum sucker is controlled by inverter;

⭐ Collector has protecting system for fault operation, material shortage warming, oil shortage warming;

⭐ Hydraulic overload protection for main machine;

⭐ Equipped with hydraulic rapid-dies changing device , making dies change more quickly and convenient;

⭐ Touch screen and PLC electrical control system ensuring the reliable operation of the automatic stamping.

Detail parts

The main components:

♦ aluminum foil uncoiling mechanism (photoelectric induction automatic discharge)
♦ aluminum foil
♦ aluminum foil protective device of oil device
♦ with a new design
♦ low noise, high speed precision press
♦ high speed precision fin die
♦ single and double jump mechanism ( optional),
♦ a material pulling mechanism
♦ the latest design guide rod type finned stacking device
♦ fertilizer collecting device
♦ the man-machine interface of professional electrical control system

Note:Die height can be customized ,depending on the specific circumstances

Mould

Optional accessory:

Crimp dischanrge rack
Expanding discharge within the frame
Set pan rack
Rotary aggregate rack

Products

Specifcation

Item			Specification
Item				ZCPC-45	ZCPC-65	ZCPC-85
Capacity	KN	450	650	850
Nominal pressure Stroke	mm	1.5	1.5	1.5
Storke of Slide	mm	40-60	40-60	40-60
Storke	S.P.M	120-200	120-200	120-200
Max.die-set height	mm	270	290	290
Die Height Adjustment	mm	60	75	80
Distance between Uprights	mm	510	570	650
Size of Table(L-RxF-B)	mm	580x850/660x850	580x850/660x850	920x700
Thickness of Table	mm	80	80	90
Bottom Size of Slide(L-RxF-B)	mm	300x400	360x500	680x400
Main Motor Power	KW	5.5	5.5	7.5
Width of Material	mm	310	310	360
Stack Length	mm	1200/1500/2000	1200/1500/2000	1200/1500/2000
Collecting Height of Material	mm	600-800	600-800	600-850
Inner Diameter of Material Rolling	mm	Φ75/Φ150	Φ75/Φ150	Φ75/Φ150
Outer Diameter of Material Rolling	mm	Φ850	Φ850	Φ850
Overall Dimonsions(L-RxF-BxH)	mm	7000x2500x2650	7200x2580x2950	7500x2630x3100
Total Weight	kg	6500	7800	9500
