Quick Details
-
Color Temperature(CCT):
-
2700/3000/4000/6500K
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
12V/ 24V
-
Lamp Luminous Efficiency(lm/w):
-
105LM/W
-
Lamp Luminous Flux(lm):
-
1260LM
-
Warranty(Year):
-
3-YEARS
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Weight（kg）:
-
0.15
-
Item Type:
-
Flex Light Strips
-
LED Brand:
-
Hongli/Everlight
-
LED Light Source:
-
LED Chip with COB Package
-
PCB Width:
-
4mm/5mm/ 8mm/10mm
-
PCB Color:
-
White/Black
-
Package:
-
5M/Reel
-
LED Quantity:
-
480 Chips/m
-
Beam Angle:
-
180 Degree
-
Feature:
-
No Dot lights/uniform lighting
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDODM
-
Model Number:
-
SL-COB-480D
-
Color Temperature(CCT):
-
2700/3000/4000/6500K
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
12V/ 24V
-
Lamp Luminous Efficiency(lm/w):
-
105LM/W
-
Lamp Luminous Flux(lm):
-
1260LM
-
Warranty(Year):
-
3-YEARS
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Weight（kg）:
-
0.15
-
Item Type:
-
Flex Light Strips
-
LED Brand:
-
Hongli/Everlight
-
LED Light Source:
-
LED Chip with COB Package
-
PCB Width:
-
4mm/5mm/ 8mm/10mm
-
PCB Color:
-
White/Black
-
Package:
-
5M/Reel
-
LED Quantity:
-
480 Chips/m
-
Beam Angle:
-
180 Degree
-
Feature:
-
No Dot lights/uniform lighting

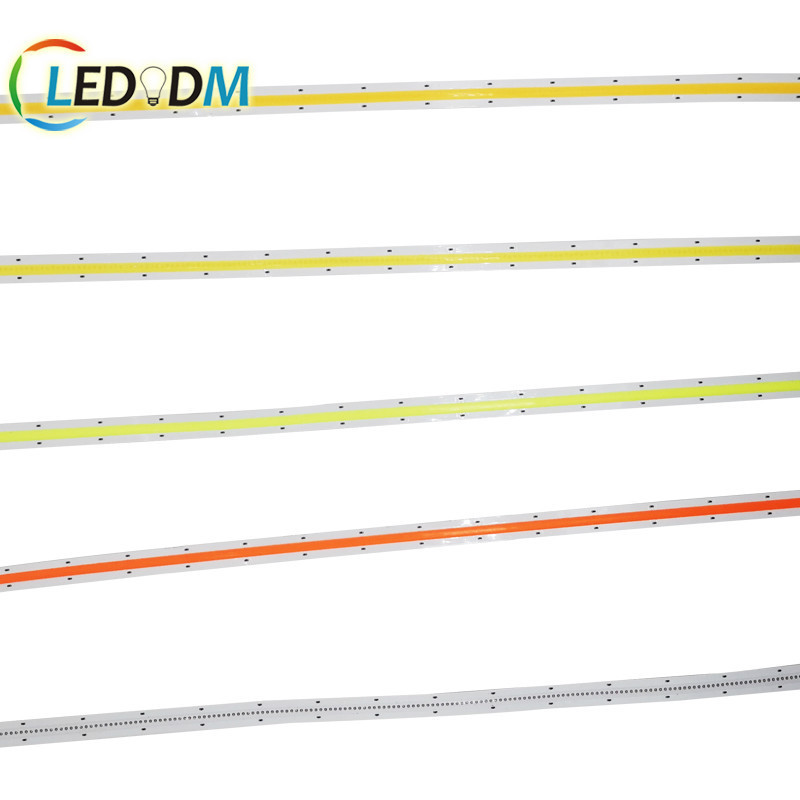

Dot Free Flexible DC 12V 24V LED Strip Light IP68 Waterproof 5m roll LED COB Light dot-less cob CSP led strip
Introduction :
COB is the abbreviation of the Chip On Board. That means is to directly package the chip on the circuit board. It is a kind of LED integrated package technology, the newest innovation in 2019. COB LED Strip Lights, which called cob led ligt tape, has high dentisy chips and prodvides a completely uniform light line without any light dot or dark area. It's very different from normal smd led strip light, it only has chip inside, that's why cob led strip can be single row even if 320/480/545/608/840 chips.
Production Features:
|
Shenzhen Ledodm Lighting Co.,Ltd Multiple choices and customized services for you |
|
| Item Name | COB LED Strip Light |
| Voltage | DC 5V/ 12V/24V |
| Chip QTY | 384Chips/M, 480 Chips/M, 512Chips/M, 840Chips/M |
| IP Grade | IP20 /IP65/IP66/IP67/IP68 |
|
CRI (RA) |
80 / 90 / 95 |
|
Color Options |
2700K, 3000K, 4000K, 5000K, 6000K, 6500K, 7000K Red / Green / Blue / Yellow / UV / RGB / RGBW / Addressable / DMX / Red&Blue 5:1 |
| Certificate | ETL CE ROHS |
|
Warranty |
5Years / 3 Years / 2Years / 1 Years (It depends on the materials) |
|
Package |
5M/Reel |
Brand Chip & LED
Produced with golden wire and copper circuit board, good quality assurance and long lifespan.
Double Layers PCB
All strips are double-sided pcb, at least 2 ounces pcb, low voltage drop and good heat dissipation.
1BIN LED & 3 SDCM are available
Can make sure the 1 Batch, Multi-Batch color consistency.
Lifetime
LED with 50000hours lifetime and have passed LM-80.
3M Tape on the Back
3M Adhesive tape with strong adhesion, easy and convenient to use on any surface.
Cuttable Length
DIY cutting, 12v you can cut every 3leds, 24v, you can cut every 6leds.
Power supply solution:
ABOUT LEDODM
Founded in 2008, LEDODM is a national high-tech enterprise specialized in R&D, manufacturing, sales and after-sales. Currently has more than 20 product patents, and all products have passed CE, ROHS, ETL (5014155) certification etc.
Main product line:
LED Strip
Neon LED Strip
Aluminum Profile
Related Accessories
LEDODM has always insisted on using high-quality light sources, electronic parts, materials and processes. The product quality inspection level is synchronized with the international level to ensure that the product qualification rate is over 99.8%.
PACKAGE
Standard export carton packing
DELIVERY TIME
3-15 days after confirming order, detail delivery date should be decided according to production season and order quantity.
