- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
OEM service
-
Weight:
-
Depending
-
Certification:
-
International
-
Application:
-
Gold Recovery
-
Feeding size:
-
OEM service
-
Capacity:
-
0-500 tons/hr
-
After sale service:
-
Engineers available to service machinery overseas
-
Usage:
-
Mining Separatoion
-
Recovery rate:
-
90-99%
Quick Details
-
Production Capacity:
-
90%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yongli
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
OEM service
-
Weight:
-
Depending
-
Certification:
-
International
-
Application:
-
Gold Recovery
-
Feeding size:
-
OEM service
-
Capacity:
-
0-500 tons/hr
-
After sale service:
-
Engineers available to service machinery overseas
-
Usage:
-
Mining Separatoion
-
Recovery rate:
-
90-99%
Product Description

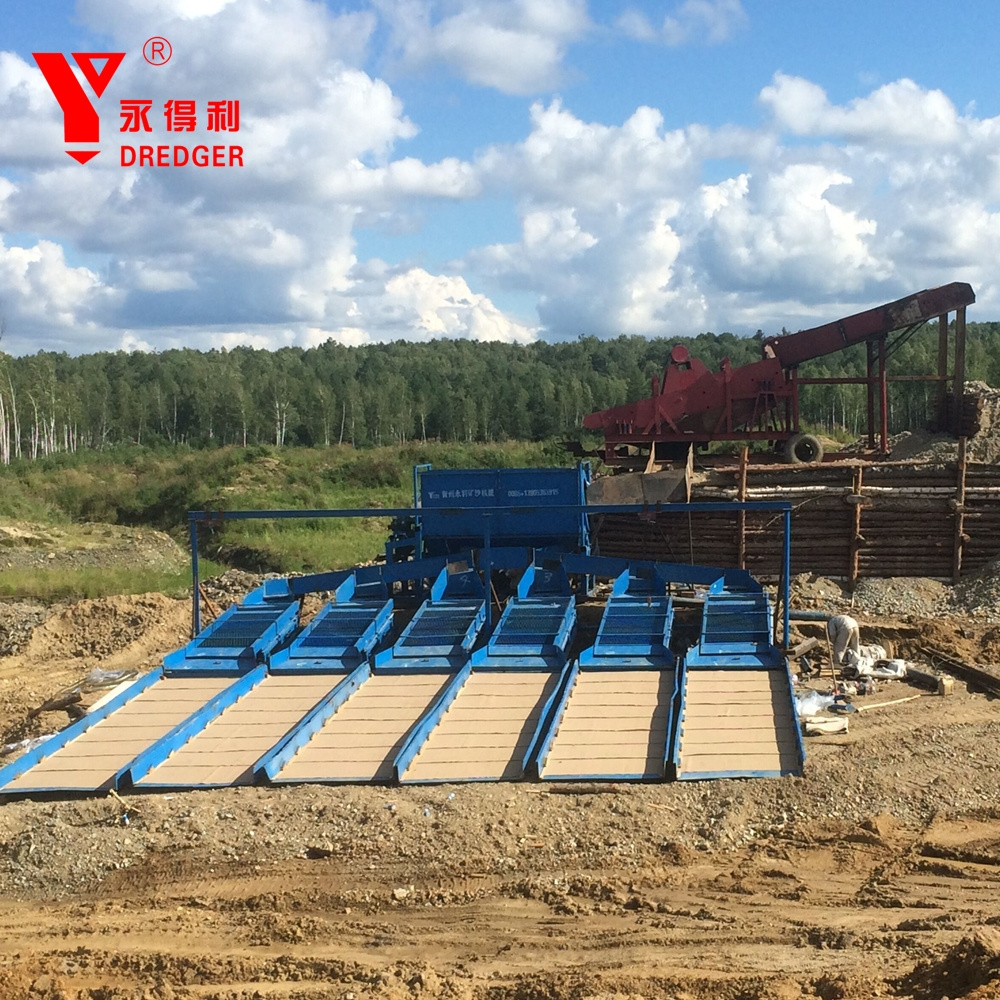

Yongli gold washing plant used to mine gold mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond and zirconium in raw ore. If the percentage is high in the raw ore, Iron ore needs to be retrieved first with magnetic separator, then gold, diamond, zirconium will be concentrated, or the effectiveness will be affected.
This set of mining equipments are composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the recovery efficiency about 90% after series of separation.
Product Paramenters
Several models of Yongli series
|
Model
|
Capacity(t/h)
|
Water consumption(
m³/h)
|
Power
|
Recovery(%)
|
|
YLG-02
|
2
|
4
|
1.1
|
60-70
|
|
YLG-04
|
4
|
8
|
1.5
|
60-70
|
|
YLG-25
|
25
|
50
|
30
|
90
|
|
YLG-100
|
100
|
200
|
92
|
90
|
|
YLG-150
|
150
|
300
|
100
|
90
|
|
YLG-250
|
250
|
400
|
118
|
90
|
|
YLG-300
|
300
|
500
|
180
|
90
|
Remarks:
Models above are just reference plans, trommel screen can be equipped with cutter teeth, pulsating sluice box, water supply pump and so on.
Yongli has reguar products which are in stock and also can provide OEM&ODM service, providing our customers rational and economic solutions.
Advantages of Pulsating sluice box
Pulsating Sluice Box has an enhanced gold recovery, especially for the gold of fine particles. The recovery can be up to 85% to 90%.
To compare the normal sluice box and pulsating sluice box, normal sluice box is with good recovery rate for the big size gold as the volumn and gravity is bigger than the buoyancy of water, so the big particle will go down the sluice. But when the gold is very fine or in flake, it will be difficult to be down.
The pulsating sluice box solves the problems of raw ore hardening because the steel bar and holes on the grid from turbulence, which prolongs the time of gold separating from sand and stones. These create good conditions for fine and flake gold.
1. Easy and fast for cleaning.
2. The clay will not be deposited in the carpet.
3. High recover rate and low price.
4. Perfect combination of sluice and jigging machine
Details Images
Trommel scrubber
Trommel screen can be equiped with Cutter teeth in order to deal with stick clay.
Pulsating sluice box
This is an optional equipment, solving the problem of raw ore hardening.
Movable
Movable and detachable devices make work availbale in different areas
High capacity plant
The disign of trommel drum and different numbers of sluice box make different capacities possible.
Our services
1. Our company signs a long-time after-sale service agreement with customers.
2. We provide rational and practical design according to customers' request.
3. We send engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide free training of operation and maintenance for customers.
6. We supply high quality accessories in low price .
7. We make an excellent filing of customers for long-term following-up service.
Customer Photos
Need For Reply
d. What is the gold particle size in the raw ore ?
e. Do you need the diesel generator ?
Of course, Yongli has been in the gold washing business for decades of years, established itself not only as a efficient production facility, but also as a dedicated gold washing knowledge center which our customers can rely on. Better understanding of customer needs lead to perfect solution.
