Quick Details
-
Warranty:
-
30years
-
Brand Name:
-
Sunket
-
Model Number:
-
SKT480M6
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2094*1038*30mm
-
Production name:
-

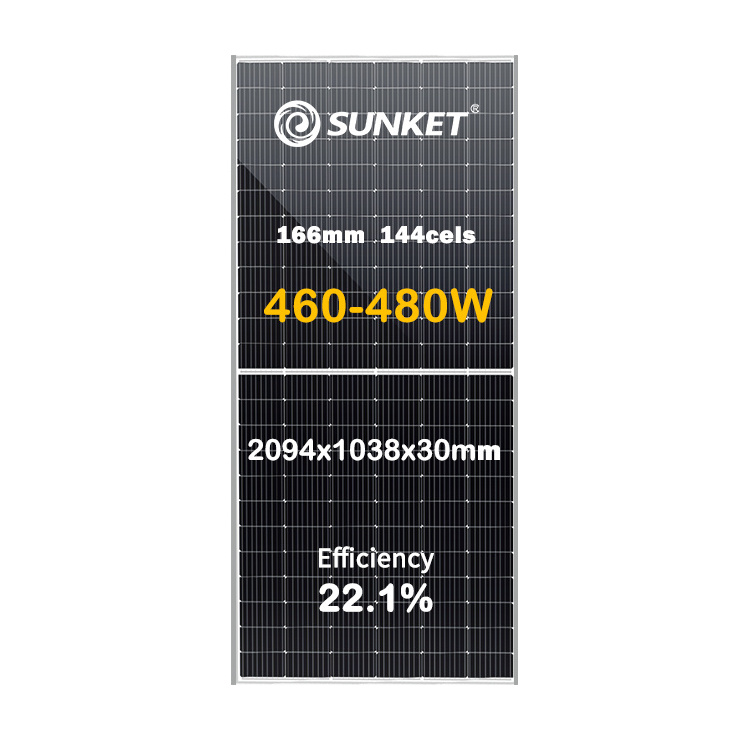

480W Mono Solar Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Solar cell:
-
Mono 166mm Cell
-
Connector:
-
optional
-
Junction Box:
-
IP68
-
Weight:
-
27KG
-
OEM Order:
-
Acceptable
-
Module dimension:
-
2094*1038*30mm
-
packing:
-
carton on pallet
-
Certificate:
-
TUV/CE/IEC/ISO9001
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
Half Cell, Bifacial, Double-glass, HJT
-
Panel Efficiency:
-
22.1%
-
Warranty:
-
30years
-
Brand Name:
-
Sunket
-
Model Number:
-
SKT480M6
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2094*1038*30mm
-
Production name:
-
480W Mono Solar Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Solar cell:
-
Mono 166mm Cell
-
Connector:
-
optional
-
Junction Box:
-
IP68
-
Weight:
-
27KG
-
OEM Order:
-
Acceptable
-
Module dimension:
-
2094*1038*30mm
-
packing:
-
carton on pallet
-
Certificate:
-
TUV/CE/IEC/ISO9001
Product Introduction
|
Electrical Characteristics(STC)
|
|
|
|
|
|
|||||
|
Module Type
|
SKT460M6
|
SKT465M6
|
SKT470M6
|
SKT475M6
|
SKT480M6
|
|||||
|
Rated Power-Pm (W)
|
460
|
465
|
470
|
475
|
480
|
|||||
|
Open-circuit Voltage-Voc(V)
|
53.22
|
53.35
|
53.48
|
53.61
|
53.74
|
|||||
|
Short-circuit Current-Isc(A)
|
10.58
|
10.64
|
10.70
|
10.76
|
10.82
|
|||||
|
Working Voltage-Vmp(V)
|
45.24
|
45.44
|
45.66
|
45.86
|
46.08
|
|||||
|
Working Current-Imp(A)
|
10.18
|
10.24
|
10.30
|
10.36
|
10.43
|
|||||
|
Module Efficiency (%)
|
21.2
|
21.4
|
21.6
|
21.9
|
22.1
|
|||||
|
Power Tolerance(W)
|
(0,+4.99W)
|
|
|
|
|
|||||
|
Mechanical Specifications
|
|
Packing Configuration
|
|
|
|||
|
External Dimensions
|
2094x1038x30mm
|
2094x1038x30mm
|
|
|
|||
|
Weight
|
27kg
|
Container
|
20'GP
|
40'HQ
|
|||
|
Solar Cells
|
Mono crystalline 166mm (2x72pcs)
|
Pieces per Pallet
|
35
|
35
|
|||
|
Front Glass
|
AR Coated 2mm+2mm tempered glass
|
Pallets per Container
|
5
|
22
|
|||
|
Frame
|
Anodized aluminum alloy
|
Pieces per Container
|
175
|
770
|
|||
|
Junction Box
|
IP68
|
|
|
|
|||
|
Output Cables
|
4.0mm², 50cm(+),50cm(-), length can be customized
|
|
|
|
|||
|
Connector
|
MC4 Compatible
|
|
|
|
|||
|
Mechanical Load
|
Front Side Max.5400Pa, Rear Side Max.2400Pa
|
|
|
|
|||
