LED drivers play an important role in LED lamps as their "heart". LED drivers can be a confusing part of LED technology. There are so many different types and variations that it can seem a little overwhelming at times.
UL approved LED drivers meet the Safety Sandards of North American market.The model is belong to our UL series with non-dimming and application for
5W -16W
LED downlights, LED panel lights
and so on.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Linkuan
-
Model Number:
-
LKAD011DV
-
Output Frequency:
-
50~60Hz
-
Type:
-
Class 2
-
Certification:
-
cUL
-
Input votage:
-
100-132V ac
-
Output Voltage:
-
20-42V dc/8-22v dc
-
Output current:
-
250-400mA/400-700mA
-
Efficiency:
-
80%
-
Dimmable Function:
-
triac/phase cut
-
Feature:
-
IP65
-
Warranty:
-
5 year
-
Dimension:
-
Phi 50*23mm
Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
0.3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Linkuan
-
Model Number:
-
LKAD011DV
-
Output Frequency:
-
50~60Hz
-
Type:
-
Class 2
-
Certification:
-
cUL
-
Input votage:
-
100-132V ac
-
Output Voltage:
-
20-42V dc/8-22v dc
-
Output current:
-
250-400mA/400-700mA
-
Efficiency:
-
80%
-
Dimmable Function:
-
triac/phase cut
-
Feature:
-
IP65
-
Warranty:
-
5 year
-
Dimension:
-
Phi 50*23mm
Product Description
5W-16W led driver 100-132V AC input 20-42V/8-22V DC Output 250-400mA/400-700mA UL approval
Product Paramenters
|
INPUT
|
Input Voltage
|
100-132VAC
|
|
|
|
Input frequency
|
50/60Hz
|
|
|
|
Power Factor
|
>0.95
|
|
|
OUTPUT
|
DC Voltage
|
20-42VDC/8-22V dc
|
|
|
|
Rated Current
|
250-400mA,400-700mA
|
|
|
|
Rated Power
|
5-16W
|
|
|
|
SETUP Rise Time
|
<0.5s
|
|
|
PROTECTION
|
Short circiut
|
Recovers automatically after fault condition is removed
|
|
|
|
Overload
|
Overload protected @110-130% above peak rating
|
|
|
|
Over Temperature
|
Shut down o/p voltage . re-power on to recover
|
|
|
|
IP Code
|
IP65
|
|
|
ENVIRONMENT
|
Working TEMP.
|
-30-+50℃ (refer to output load derating curve)
|
|
|
|
Storage TEMP.
|
-40-+80℃
|
|
|
Safety & EMC
|
Safety Standards
|
CUL
|
|
|
|
EMC Test Stardands
|
FCC
|
|
|
DIMENSION
|
∅65*25mm/∅75*26mm
|
|
|

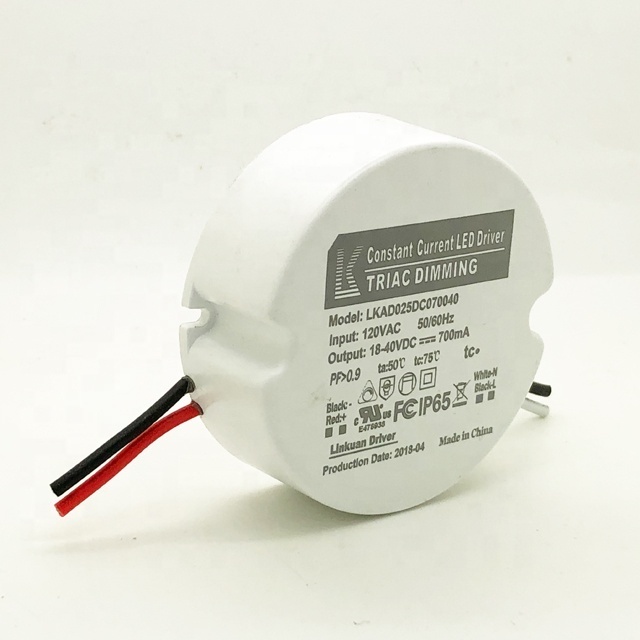

Details Images
Certifications
Our products have TUV,CE,SAA,UL,FCC,CCC certifictes.
