Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allrasie
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
8500x1900x1400mm
-
Weight:
-
1700kg, 1700kg
-
PLC Brand:
-
none
-
Name:
-
sheet paper gathering machine/paper collating machine
-
Model:
-
OR-OC12-650
-
Max. paper size:
-
650*450mm
-
Min. paper size:
-
297*210mm
-
Paper thickness:
-
30-1000gsm
-
Max .loading height:
-
450mm
-
Max. speed:
-
2000 sheets/hour
-
Power:
-
380V 50Hz 10kw
-
Dimensions:
-
8500x1900x1400mm
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE
Quick Details
-
Type:
-
paper collating machine
-
Production Capacity:
-
2000 sheets/hour
-
Max. workable width:
-
650*450mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allrasie
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
8500x1900x1400mm
-
Weight:
-
1700kg, 1700kg
-
PLC Brand:
-
none
-
Name:
-
sheet paper gathering machine/paper collating machine
-
Model:
-
OR-OC12-650
-
Max. paper size:
-
650*450mm
-
Min. paper size:
-
297*210mm
-
Paper thickness:
-
30-1000gsm
-
Max .loading height:
-
450mm
-
Max. speed:
-
2000 sheets/hour
-
Power:
-
380V 50Hz 10kw
-
Dimensions:
-
8500x1900x1400mm
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE

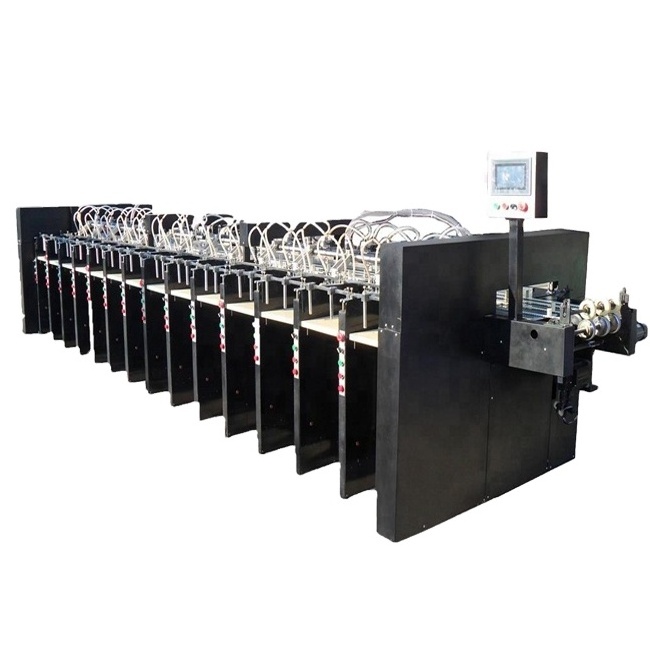

paper collator machine/sheet paper gathering machine/paper collating machine
Email:helen@ allmachine.cn WhatsApp/WeChat/Skype:+8615737313646 QQ:2187713951
Parameters of paper collator machine/sheet paper gathering machine/paper collating machine
|
Model |
OR-OC4-440 |
OR-OC6-560 |
OR-OC12-650 |
|
Max. paper size |
440*300mm |
560*400mm |
650*450mm |
|
Min. paper size |
297*210mm |
||
|
Paper thickness |
30-1000gsm |
||
|
Max .loading height |
450mm |
||
|
Max. speed |
2000 sheets/hour |
||
|
Power |
380V 50Hz 5.5kw |
380V 50Hz 6.8kw |
380V 50Hz 10kw |
|
Dimensions |
3200x1700x1300mm |
3800x1400x1300mm |
8500x1900x1400mm |
|
Weight |
800kg |
1000kg |
1700kg |
Features of paper collator machine/sheet paper gathering machine/paper collating machine
1.The automatic gathering machine has compact structure, small footprint. It can be customized to more pages collating without affecting the collating speed.
2. Advanced PLC touch screen control.
3. Paper feeding in vertical direction and paper carried in horizontal direction by accurate timing belt conveying device. Paper are collected by vibration to ensure the tidiness of final collated pages.
4. Equipped with highly advanced paper detection device such the missing page be automatically filled, double sheet alarm device etc.
5. The book sewing part or book stitching part is optional.
