Quick Details
-
Brand Name:
-
Kayson
-
Model Number:
-
level switches
-
keyword:
-
level switches
-
Resistive load:
-
107 times
-
Point capacity:
-
50W
-
Installation method:
-
horizontal type
-
Working temperature:
-
±10~120℃
-
Switching voltage:
-
220VAC/200DC
-
Contact impedance:
-
<100m
-
Product name:
-

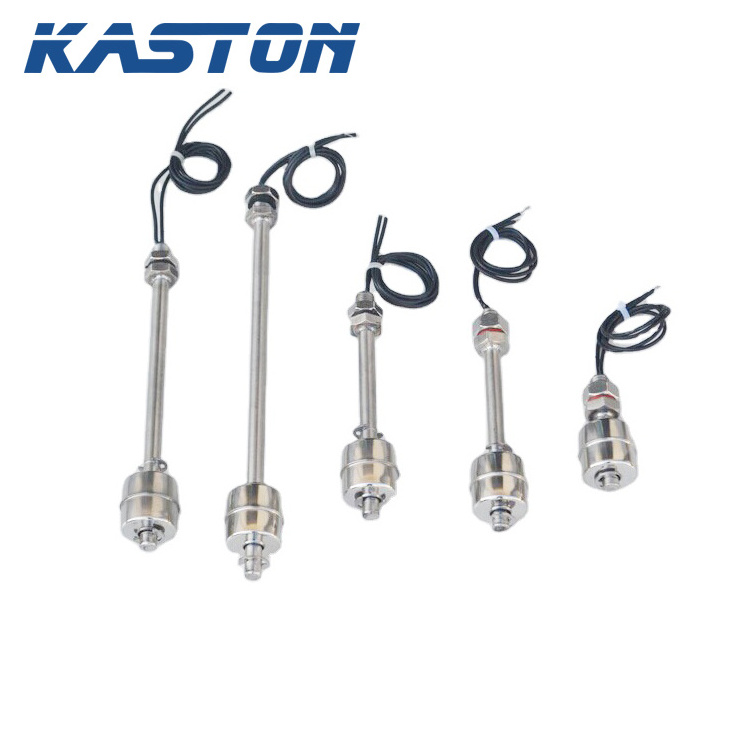

water level Fuel liquid vertical stainless steel float level switch
-
Certification:
-
ISO CE ROHS
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kayson
-
Model Number:
-
level switches
-
keyword:
-
level switches
-
Resistive load:
-
107 times
-
Point capacity:
-
50W
-
Installation method:
-
horizontal type
-
Working temperature:
-
±10~120℃
-
Switching voltage:
-
220VAC/200DC
-
Contact impedance:
-
<100m
-
Product name:
-
water level Fuel liquid vertical stainless steel float level switch
-
Certification:
-
ISO CE ROHS
Float level switch is a simple structure, easy to use level control device, it does not need to provide power,
no complicated circuit, it has a smaller than the general mechanical switch, long life and other advantages
| Material | Stainless Steel |
| Point capacity | 50W |
| Resistive load | 107 times |
| Switching voltage | 220VAC/200DC |
| Working temperature | ±10~120℃ |
| Switching current | 0.5A |
| Insulation resistance | >10Ω |
| Contact impedance | <100m |
| Switch material | SUS304 |
| Working pressure | <1.0MPA |
| Installation method | horizontal type |
2: High temperature resistant line, good acid resistance, alkali resistance, anti-fungal
3: Normally closed and normally open can be adjusted manually
4: A variety of specifications can be customize
working principle:
The level sensor is mainly composed of a reed switch and a float, which contains magnetic material, one or more reed switches in a closed non-permeable metal pipe or plastic tube, and then passes the conduit through one or more With a magnetic material of the float, and the use of fixed double-ring control float and reed switch in the relevant position, the float with the liquid rise or fall, the use of the ball near the beginning of the magnetic spring contacts, For level control or indication (when the float is close to the reed switch is turned on; off when the switch is off).
