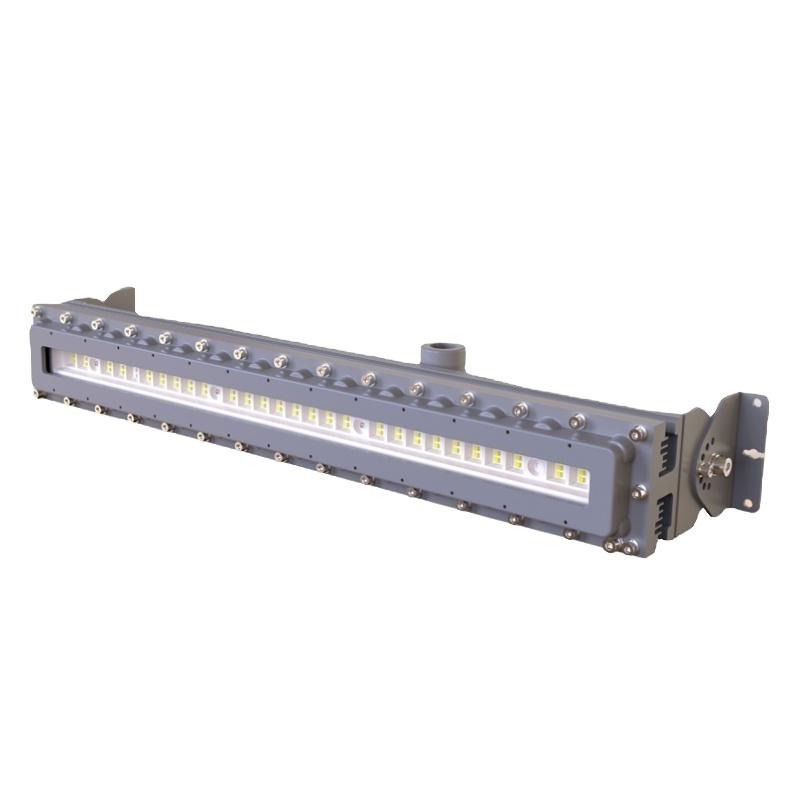

The CES-LN-02P series is widely used in the hazardous locations, such as gas station, factory workshop, petrochemical plant and so on.
It is the most popular product in our company, this product is a high sales volume of our company every year. As picture showed is LN-02P Linear light for LNG plant in Singapore, it is also used in an
China National Offshore Oil Corporation Lighting Engineering Project - CNOOC
. The image below is a physical images of all kinds of projects.
- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
2700k - 6500k optional, 2700-6500K
-
Input Voltage(V):
-
100-277V
-
Product Weight（kg）:
-
8
-
CRI (Ra>):
-
73
-
Lamp Luminous Flux(lm):
-
7200
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Item Type:
-
Explosion-proof Lights
-
Ex-Certificate:
-
UL844/UL1598
-
Hazardous location:
-
Class I Divsion 2, Groups A B C and D
-
Material:
-
ADC12 die cast aluminum alloy + 10MM high tempered glass
-
Driver:
-
Meanwell
-
IP Grade:
-
67
-
Body color:
-
Gray or Yellow
-
Reflector:
-
white reflector/silver reflector
-
Led Driver:
-
Taiwan Meanwell driver
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Warranty(Year):
-
5-Year
-
Working Temperature(℃):
-
-40 - 50
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
2700k - 6500k optional, 2700-6500K
-
Input Voltage(V):
-
100-277V
-
Product Weight（kg）:
-
8
-
CRI (Ra>):
-
73
-
Lamp Luminous Flux(lm):
-
7200
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Item Type:
-
Explosion-proof Lights
-
Ex-Certificate:
-
UL844/UL1598
-
Hazardous location:
-
Class I Divsion 2, Groups A B C and D
-
Material:
-
ADC12 die cast aluminum alloy + 10MM high tempered glass
-
Driver:
-
Meanwell
-
IP Grade:
-
67
-
Body color:
-
Gray or Yellow
-
Reflector:
-
white reflector/silver reflector
-
Led Driver:
-
Taiwan Meanwell driver
Product Description
Product Paramenters
Parameters
|
Model
|
Power(W)
|
Input voltage : AC 100V-277V; Frequency: 50/60 Hz;
|
|
|
|
|
|
|
||||||
|
|
|
CCT: 3000K/4000K/6500K
|
|
|
|
|
|
|
||||||
|
|
|
Power factor:0.97
|
|
|
|
|
|
|
||||||
|
|
|
Luminous flux (LM)
|
Light efficiency (Lm/W)
|
LEDs Chip
|
LEDs Type
|
LED Driver
Model
|
Weights
(kg)
|
Lengths
(m)
|
||||||
|
CES-EX-LN-02-50A
|
50
|
6000-7000
|
120-140
|
224PCS
|
3030(6V)
|
SS-50H-42HL
|
10
|
0.2
|
||||||
|
CES-EX-LN-02-40A
|
40
|
4800-5600
|
|
|
|
|
|
|
||||||
|
CES-EX-LN-02-36A
|
36
|
4320-5040
|
|
|
|
SS-35H-42HL
|
|
|
||||||
|
CES-EX-LN-02-30A
|
30
|
3600-4200
|
|
|
|
|
|
|
||||||
|
CES-EX-LN-02-36B
|
36
|
4320-5040
|
|
112PCS
|
|
SS-35H-42HL
|
5.5
|
0.6
|
||||||
|
CES-EX-LN-02-30B
|
30
|
3600-4200
|
|
|
|
|
|
|
||||||
|
CES-EX-LN-02-20B
|
24
|
2400-2800
|
|
|
|
|
|
|
||||||
T-Class
|
Ta
Model
|
-40°C ~ 45°C
|
-40°C ~ 50°C
|
-40°C ~ 55°C
|
|
CES-EX-LN-02N-50A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-40A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-36A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-30A
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-36B
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-30B
|
T6
|
T6
|
T6
|
|
CES-EX-LN-02N-20B
|
T6
|
T6
|
T6
|
Installation Instructions
Indonesia
- Explosion Proof LED Flood Light
- Explosion Proof LED Flood Light
Netherlands - Seaside Oil Refinery
CESP LED Explosion proof Lights
for Powder Magazine in Chile
for Powder Magazine in Chile
Natural Gas Hanling Facility in Malaysia- 120W Led EX-proof Light Project
Australian Gas Station Lighting - CES-J100
CES-J series is used for
Oil depot lighting
WIDE APPLICATIONS
CES-EX-LN-02P Linear Light replace to the ex-proof fluorescent light in Singapore
Control Room - United States
CES-EX-LN-02P Ex-Proof Linear Light
CES-EX-LN-02P Ex-Proof Linear Light
Italy - these luminaries are installed in explosion-proof boxes
CES-EX-LN-02P
CNOOC -
China National Offshore Oil Corporation Lighting Engineering Project.
