- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
1%
-
Voltage:
-
AC 220V 50HZ 1phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHANGE
-
Dimension(L*W*H):
-
120*75*55 cm
-
Weight:
-
120 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Semiauto Liquid Paste Filling Machine
-
Motivity style:
-
Pneumatic
-
Compressed air:
-
0.4--0.6MPa, 0.02CBM/min
-
Filling volume:
-
25-250ML. 50-500ML.100-1000ML.250-2500ML
-
Applicable products:
-
Various liquid or paste, cream, shampoo, lotion, detergent, oil, water
-
Filling speed:
-
10-35times/min(Depends on actual filling volume)
-
Gross weight:
-
50kg-120kg
-
Delivery date:
-
3-7 working days
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
400BPH
-
Packaging Material:
-
Glass plastic metal bottles jars tin can barrel
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
1%
-
Voltage:
-
AC 220V 50HZ 1phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHANGE
-
Dimension(L*W*H):
-
120*75*55 cm
-
Weight:
-
120 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Semiauto Liquid Paste Filling Machine
-
Motivity style:
-
Pneumatic
-
Compressed air:
-
0.4--0.6MPa, 0.02CBM/min
-
Filling volume:
-
25-250ML. 50-500ML.100-1000ML.250-2500ML
-
Applicable products:
-
Various liquid or paste, cream, shampoo, lotion, detergent, oil, water
-
Filling speed:
-
10-35times/min(Depends on actual filling volume)
-
Gross weight:
-
50kg-120kg
-
Delivery date:
-
3-7 working days
-
Certification:
-
CE

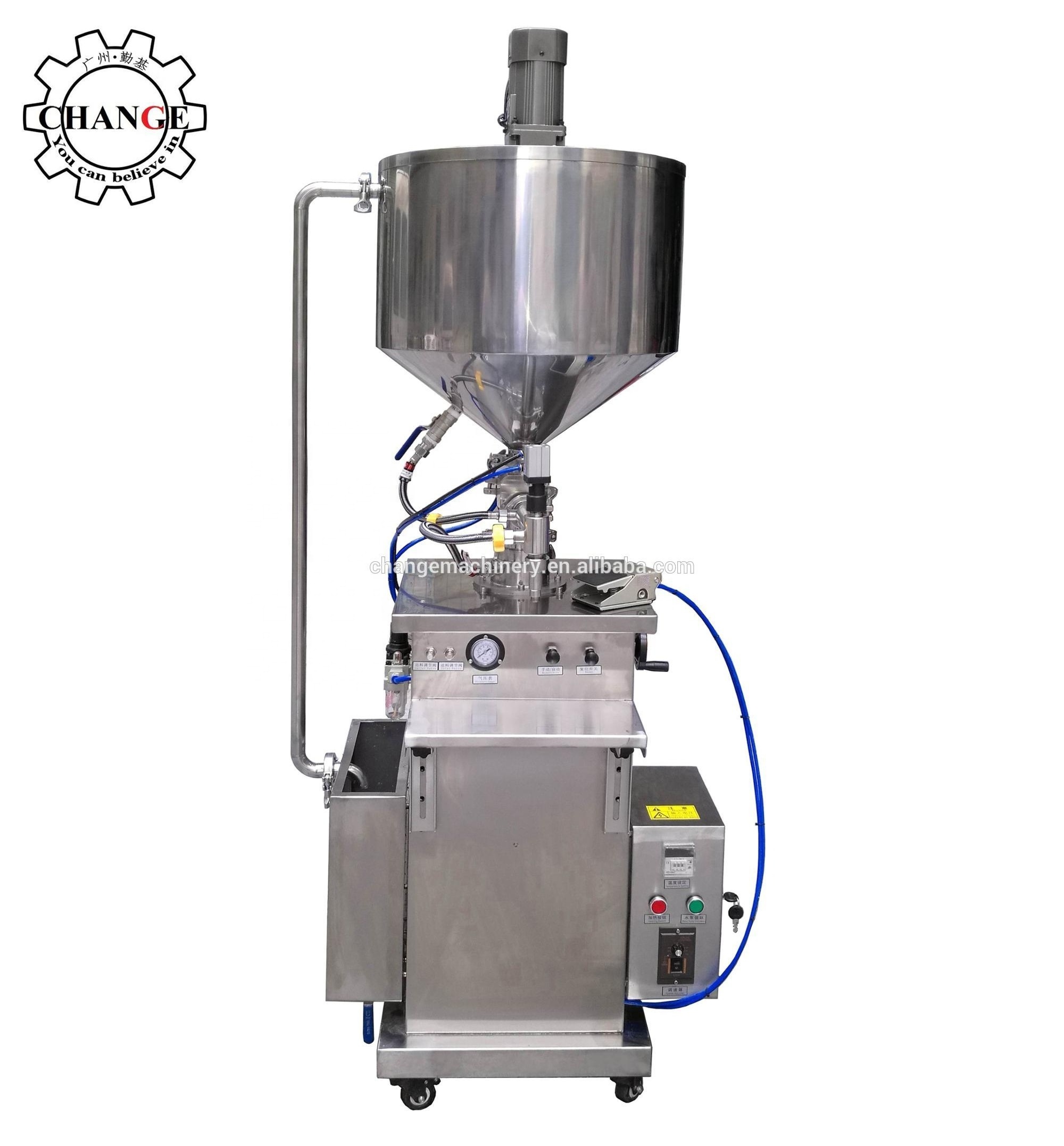

Reference photos
Technical parameters
|
Name |
Semiauto Liquid Paste Products Filling Machine Semiauto Filler |
|
Model |
CHFM-500S |
|
Article |
This filler can fill both thin liquid products, such as shampoo, lotion, liquid detergent, oil, sauce, tomato paste, also can heat and fill thick or sticky cream or paste, such as, vaseline, wax, mascaram cream, jelly, creamy yogurt, etc. |
|
Volume |
0-500ml (Filling volume range can be customized to be 5000ml maximumly). |
|
Material |
SUS 304 |
|
Tank capacity |
35 Litters |
|
Filling head |
1-2 pc. |
|
Driving force/Motivity |
Compressed air (Air compressor is self-prepared by users.) |
|
Heating system (Optional) |
Thermal heaters, circulating hot water, filling system and filling head also with heat preserve sleeve. |
|
Filling sytem |
Cylinder+piston pump |
|
Precision |
±1% |
|
Pneumatic |
0.4--0.6Mpa, 0.2cbm/min |
|
Caliber |
≥ 5mm |
|
Capacity |
10-30 bottles/min |
|
G.W. |
120Kg. |
|
Dimension |
Vertical style filler: L650*W850*H1850mm Horizontal style filler: L1200mm*W650mm*H550mm |
|
Package material |
Polyboard box |
|
Delivery date |
7 working days |
Q1. What price and payment terms your company can offer?
We can offer EXW or EX-Factory price, FOB, CNF or CIF price.
Usually, we accept T/T or in cash, 30% of the total payment as prepayment / deposit, the remaining 70% will be paid off before we deliver the machines.We can also accept LC payment.
Q2 . How long it will take if I put an order of your machines?
Depends on the sizes and complexity of the machines, delivery date various from 5 to 60 working days.
Q3. What is the warranty of your machines? If any part of the machines broken, how we can get the new replacements?
We provide one year warranty for all of our machines.
During the warranty period, if any part broken because of the quality defect, we will send the new replacements to you for free. If it exceeds the warranty period, or caused by users’ misuse, or irresistible factors, the clients will have to pay for the new replacements.
Q4. Can your company send technicians to help us to install and test run the machines?
Yes, we can send our technicians to your factory to install and test run the machines, and train your workers. Your company will afford the round air tickets, hotel and foods and other necessary charges when our technicians in your city.
