Lab scale pulp molding machine disposable tableware Integrated pulp molding machine

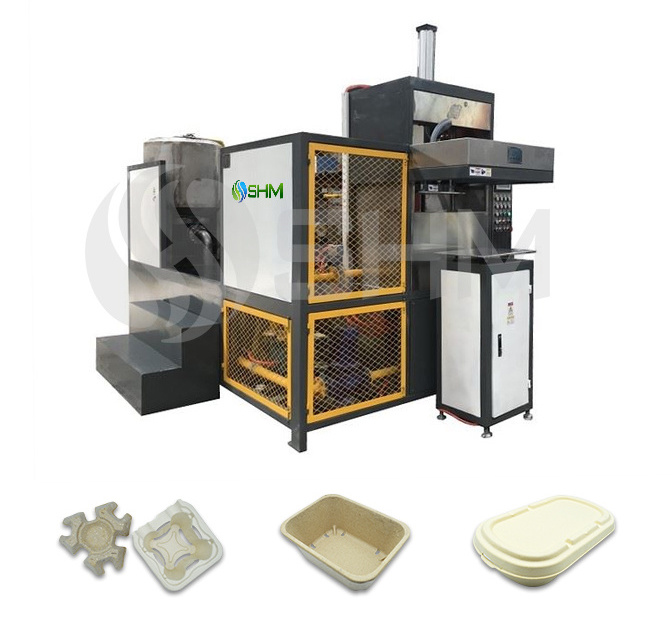

What is L ab scale pulp molding machine ?

L ab scale pulp molding machine is a small paper pulp molding machine for pulp molded products prototyping or small quantity production . It’s integrated by forming system, pulping system at one platform. SHW-360 is quite mature and popular, and we have a patent certificate for this lab-scale machine .

Pulp Packaging Molded Machine

Shuanghuan is a premier manufacturer of molded pulp packaging machine for production of molded paper pulp packaging including custom applications.

Machines including: sugar cane bagasse pulp making machine/bagasse pulp moulding machinery/bagasse food container machine/egg box making machine.

Raw material: wood pulp paper/bagasse pulp board/bagasse sugarcane waste

Pulp molding machine assembly instructions:

1. Forming machine

2. Hydrapulper

3. Air Compressor

4. Air compressor storage tank

5. Agitator

6. Control cabinet

7.Pulp pump

8.Pulp pool

9.Water pool

10.Vacuum pump

11. Receiving table

Small pulp molding machinery for sale

1. N ormal model:

SHW-360, machine size: 4 1 00X2 1 00X2700mm

Platen and mold size customized.

2. Minimum number of units: up to your product size

3. Forming efficiency: 1 - 6 times/minute

4. Production line overall dimension: length≥4 .3 m,width≥2 .7 m

5. Production line power: 18 kw- 30 kw. Actual total energy power consumption by 70%.

6. This production line is configured as standard, if it is used to produce egg cartons recyclable,fruit and vegetable display trays, disposable coffee tray, bagasse pulp plate etc, it needs auxiliary equipment, like hot press machine, edge trimming machine , or printing machine etc. Corresponding area, total power, worker quantity will be increased.

7. W ater is recycled.

8. One-year warranty service after installation.

Except college lab test, you can use small pulp molding machine at home too, when you want to start project before large quantity, this small business greatly reduces your risk and can be used to make products to customers in the future .

Small sized production pulp molding machine features:

- Stainless steel stock container

- Robust stainless steel construction

- Built-in air compressor and reservoir

- Customized-shape mold

- Compact, easy to install and user friendly

- Manual heat press

Why choose a small scale pulp making machine?

With the objectives of identifying important variables in the molded pulp process, pulps and white water samples from an industrial pulp and paper mill were analyzed at the laboratory scale. The laboratory trials were carried out using a factorial design. The laboratory trays represent well the behaviour of the industrial trays. Also, the suspended solids of white water at laboratory reproduce the quality of industrial water correctly. Finally, the establishment of reference values for the raw material quality indices is an interesting technique for those mills that use recycled paper. So more and more colleges purchasing this kind of small pulp molding machine for their lab.

Please feel free to send us an inquiry if you want to consult this kind of Small Laboratory Pulp Molding Machine. You can get this kind of small paper pulp molding machine by online from S HM .

Optional accessories

1. Metal d rying line /Shelf: since the product quantity is small, you can just let them dry on the shelf, more cost-effective than metal drying line.

2. Hot pressing machine: for shaping the products, like food containers, cell phone trays.

3. Edge trimming machine: make the edge smoothly.

CNC Molding Center

We have also developed different molding dies, such as egg carton mold, shoe tray molding machine, seedling tray making machine, etc.

Looking for a custom product, we offer prototype tooling in our work shop. With our sample machine we can produce in-house samples for product trials. This will ensure the product your customer needs is what they get.

What’s the raw material?

Make paper egg tray raw material: cardboard,newspapers notebooks, magazines, A4 paper,used egg trays, recycled paper products.

Custom industrial molded pulp packaging: Bagasse pulp sheet, straw pulp sheet, bamboo pulp sheet etc.

Why choose S HM ?

SH Machinery ha s engaged in pulping molding filed since 1986.

Advantages includes:

1. 30 years technology accumulation for EU,USA PRODUCT manufacturers

2. Approvals from Top 10 USA packaging compan y

3. CE and ISO9001 certificate

4. OEM and ODM both accepted.

5. Own designing team for new products development

6. Quick delivery time for decent orders

7. 24 hours online sales/after sales services

SERVICE

1. Engineering research and technical consultation ;

2. Manufacture ;

3. Project Schedule ;

4. Preparation of documents and drawings ;

5. Training of maintenance and operation personnel ;

6. Guide Assembly line installation ;

7. Electrical and mechanical design ;

8. System integration ;

9. System test and handover ;

10. One year of after-sales support ;

11. Spare parts are included ;

12. Installation within the scope of supply ;

13 Operation support for the buyer’s factory ;

14. System test after equipment delivery ;

15. Documentation of assemble line .

Let's aim for a plastic free world with recyclable and compostable paper based packaging solutions!
