High Voltage Circuit Breaker Dynamic Characteristic Tester
-
Power supply:
-
220V 50Hz
-
Keyword:
-
Circuit breaker analyzer
-
Speed range:
-
20m/s
-
Temperature:
-
-10~40℃
-
Humidity:
-
≤80%RH
-
Insulation resistance:
-
>2MΩ
-
Time Range:
-
250-20000ms
-
Atmospheric pressure:
-
86~106kpa
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Run Test
-
Model Number:
-
Run-SC01
-
Product name:
-
High Voltage Circuit Breaker Dynamic Characteristic Tester
-
Power supply:
-
220V 50Hz
-
Keyword:
-
Circuit breaker analyzer
-
Speed range:
-
20m/s
-
Temperature:
-
-10~40℃
-
Humidity:
-
≤80%RH
-
Insulation resistance:
-
>2MΩ
-
Time Range:
-
250-20000ms
-
Atmospheric pressure:
-
86~106kpa
-
Certification:
-
ISO
Feature
1
.Measure the inherent opening and closing time of 12-way metal fracture, time tolerance in same phase, time tolerance in different phase,close-open time and no flow time in process of close-open, open-close, open-close-open, closing bounce time,Some models can measure the pre-cast time of the closing resistance.
2 .Record and measure the closing bounce time, bounce times, bounce process, and bounce waveform of each fracture.
3 .Record and measure opening/closing speed, maximum speed, average speed, overall limit, clearance, overtravel limit switch,rebound amplitude, time-travel characteristic curve.
4 .Record the opening/closing current value and current waveform of the opening/closing coil, and provides DC5-270V/10A (20A) digital adjustable circuit breaker operation power supply, automatically completes the low voltage test of the circuit breaker, and measures the operating voltage value of the device.
5.Simultaneously measure 6-way closing resistance value and its pre-casting time in some models.
2 .Record and measure the closing bounce time, bounce times, bounce process, and bounce waveform of each fracture.
3 .Record and measure opening/closing speed, maximum speed, average speed, overall limit, clearance, overtravel limit switch,rebound amplitude, time-travel characteristic curve.
4 .Record the opening/closing current value and current waveform of the opening/closing coil, and provides DC5-270V/10A (20A) digital adjustable circuit breaker operation power supply, automatically completes the low voltage test of the circuit breaker, and measures the operating voltage value of the device.
5.Simultaneously measure 6-way closing resistance value and its pre-casting time in some models.
Specification
|
Item
|
Parameters
|
Inaccuracy
|
|
Input Power
|
220V±10%，50Hz±10%
|
|
|
Air pressure
|
86 ~ 106 KPA
|
|
|
Temperature
|
≦80%RH, non-condensing
|
|
|
Relative Humidity
|
＞2MΩ
|
|
|
Dielectric strength
|
1.5KV withstand voltage to chassis for 1 minute, no flashover and arcing
|
|
|
Timing
|
Range:250-4000ms, resolution: 0.1ms
Range:10000-20000ms, resolution: 1ms |
0.1ms±1 digit
1m± 1 digit |
|
Speed
|
Range: 20.00m/s, resolution: 0.001m/s
|
±0.01m/s±1 digit
|
|
Current
|
Range: 10A, Resolution: 0.01A
|
1% ±0.1A
|
|
Output Power
|
DC5 – 270V digital adjustable 10A(instant)
|
|
|
Type
|
Range(mm)
|
Resolution(mm)
|
Inaccuracy
|
|
Vacuum circuit breaker
|
50
|
0.1
|
1%±1digit
|
|
SF6 Circuit breaker
|
300
|
|
|
|
Minimum circuit breaker
|
1000
|
|
|
Product Description

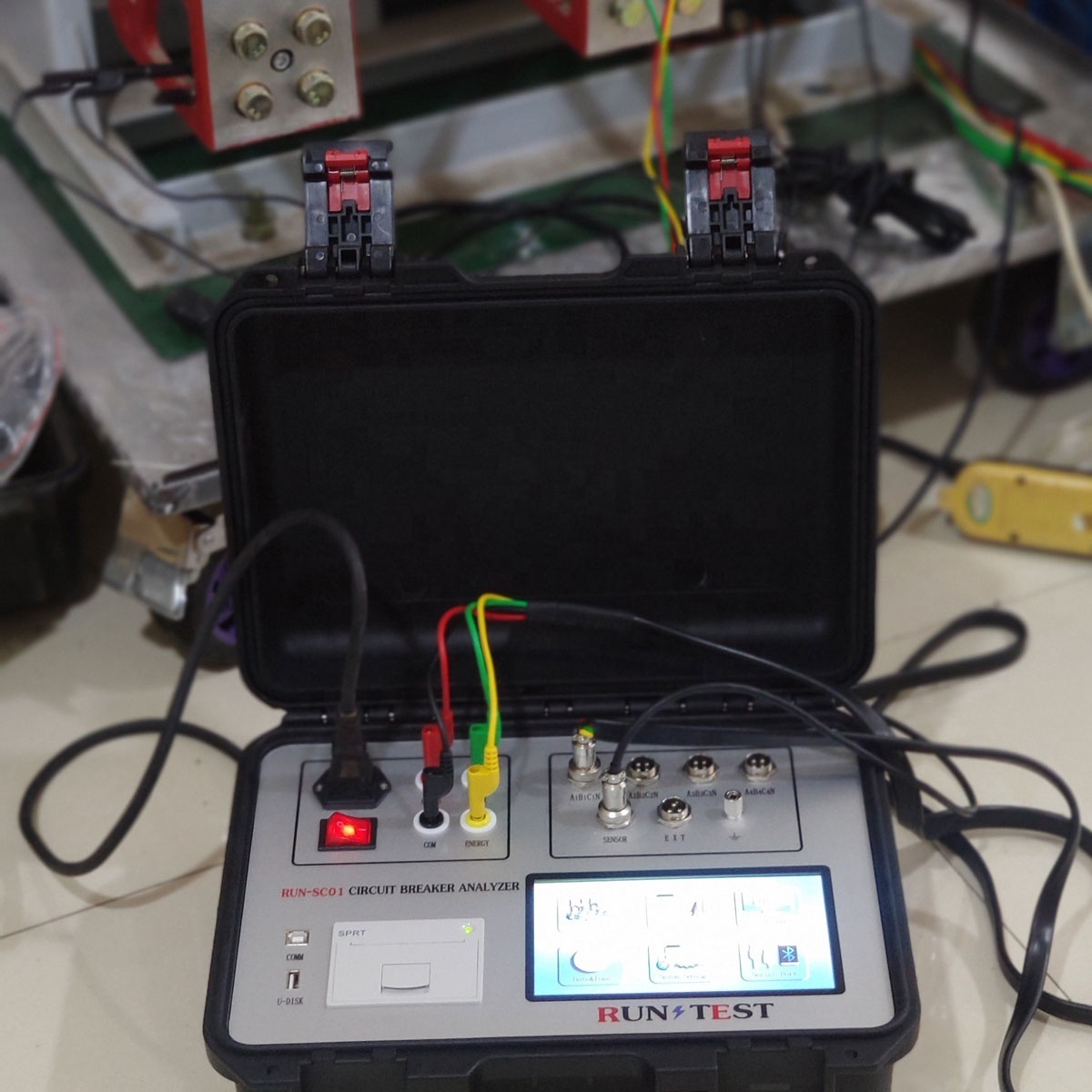

High Voltage Switch Testing Equipment Circuit Breaker Opening Closing Time and Speed Tester CB Analyzer
High Voltage Circuit Breaker Dynamic Characteristic Tester be used for measure the mechanical dynamic characteristic parameters of low oil, vacuum, SF6 and other high-voltage circuit breakers.
