Quick Details
-
Model Number:
-
JQX-60F
-
Contact Form:
-
1Z
-
Coil Voltage:
-
AC:6V~380V; DC:6V~220V
Quick Details
-
Contact Load:
-
60A 250VAC/30VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
JQX-60F
-
Contact Form:
-
1Z
-
Coil Voltage:
-
AC:6V~380V; DC:6V~220V

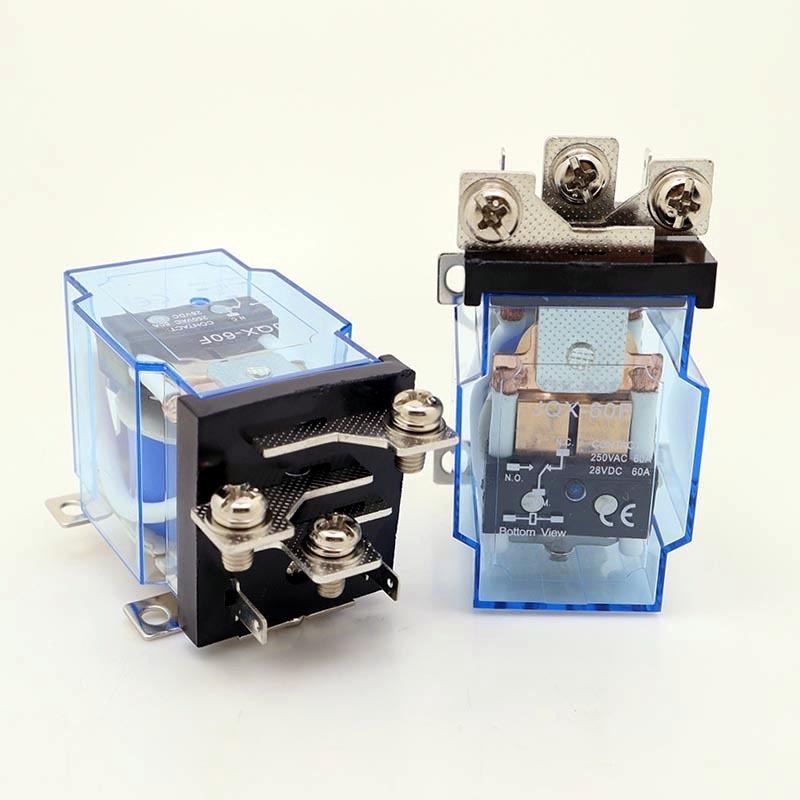

SPDT 1Z 60A 12v 24v 220v JQX-60F power relay
Features
♦ N.O.60A and N.C. 50A 250VAC/30VDC for switching capacity
♦ Contact Form A, B and C contacts available (A=NO, B=NC, C=NO&NC)
♦ Life expectancy to 100 thousand operations
Technical Data
|
Contact |
Form |
1Z,1H,1D, 2Z,2H,2D |
|
|
Load (Resistive Leakage) |
60A/250VAC 30VDC |
||
|
Contact resistance (initial) |
≤50mΩ |
||
|
Material |
Silver alloy |
||
|
Electric life |
10 5 |
||
|
Machine life (300 times/min) |
10 7 |
||
|
Pick-up voltage (25 /SPAN> ) |
80%us, 80% of rated voltage |
||
|
Release voltage (25 /SPAN> ) |
DC:10%us,10% of rated voltage AC:30%us, 30% of rated voltage |
||
|
Maximum voltage (25 /SPAN> ) |
110%×rated voltage |
||
|
Specifications of coils |
DC |
6-220V (Customizable Voltage ) |
|
|
AC |
6-380V (Customizable Voltage ) |
||
|
Coil power |
DC |
3.6W |
|
|
AC |
4.40VA |
||
|
Pick-up time (rated voltage) |
5ms |
||
|
Release time (rated voltage) |
5ms |
||
|
Initial withstand |
Between same-pole contacts |
1500VAC/1min(leakage current:1mA) |
|
|
Between different-pole contacts |
1500VAC/1min(leakage current:1mA) |
||
|
Between contact and coil |
2500VAC/1min(leakage current:1mA) |
||
|
Insulation resistance |
≥100mΩ(500VDC) |
||
|
Ambient temperature |
-55 /SPAN> 70 /SPAN> |
||
|
Ambient humidity |
35%-80%RH |
||
|
Atmospheric pressure |
86-106KPa |
||
|
Shock resistance |
10G (sinusoidal half-wave pulse: 11ms) |
||
|
Vibration resistance |
10-55Hz (double amplitude: 1.0mm) |
||
|
Installation |
Screw, Flange |
||
