Quick Details
-
Model Number:
-
HAM-FH
-
Refills:
-
Compatible with HAM-C2, easily refilled & replaced
-
Device Feature:
-
HD network camera, PIR motion sensor, inside battery available.
-
Smoke Start-up time:
-
1 second
-
Ejection time/ Duration Time:
-
10-15 seconds/30-45 Minutes
-
Protect Area:
-
150m³ close or half-closed area
-
Power & Power Consumption:
-
12V,5A; 0-48W
-
Trigger Method:
-
Remote control, mobile App, PC Platform
-
Certification:
-
CE,RoHS,Non-toxic report, ISO9001, ISO14001
Quick Details
-
Special Features:
-
Solid dry fog formula
-
Place of Origin:
-
China
-
Brand Name:
-
xyc
-
Model Number:
-
HAM-FH
-
Refills:
-
Compatible with HAM-C2, easily refilled & replaced
-
Device Feature:
-
HD network camera, PIR motion sensor, inside battery available.
-
Smoke Start-up time:
-
1 second
-
Ejection time/ Duration Time:
-
10-15 seconds/30-45 Minutes
-
Protect Area:
-
150m³ close or half-closed area
-
Power & Power Consumption:
-
12V,5A; 0-48W
-
Trigger Method:
-
Remote control, mobile App, PC Platform
-
Certification:
-
CE,RoHS,Non-toxic report, ISO9001, ISO14001
Product Description

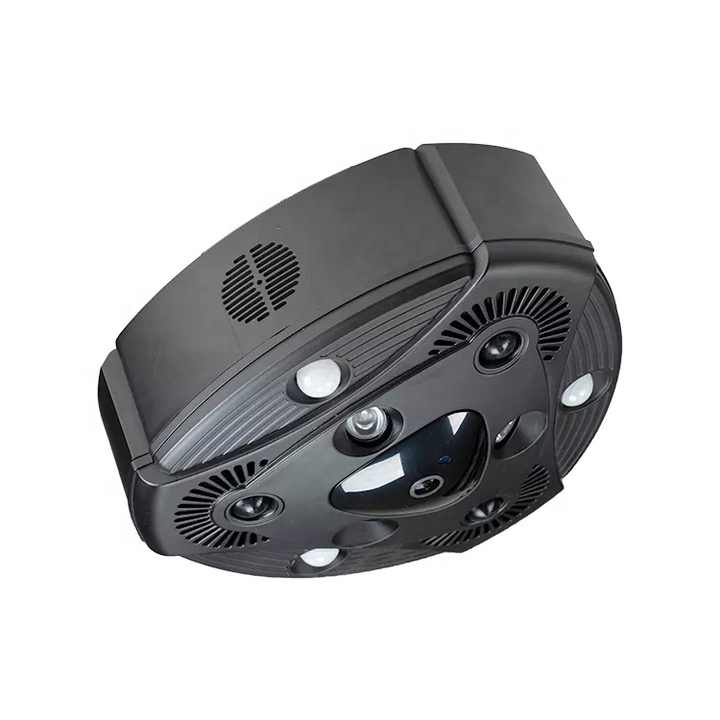

HAM-FH (with/without battery)
Device Features:
.HD camera
.PIR motion sensors
.WIFI/LAN connect
.Two Way Audio
.Built in Siren
.IOS/Android APP monitor&online trigger
.Remote control trigger
.1 second trigger, 45 minutes duration
.Non-toxic, Non-corrosive solid food grade Fog .
Device Features:
.HD camera
.PIR motion sensors
.WIFI/LAN connect
.Two Way Audio
.Built in Siren
.IOS/Android APP monitor&online trigger
.Remote control trigger
.1 second trigger, 45 minutes duration
.Non-toxic, Non-corrosive solid food grade Fog .
|
Name
|
Model
|
HAM-FH
|
|
|
Name
|
Smart Fog Generator
|
|
Camera
|
Image Sensor
|
1/2.8” Progressive scan CMOS
|
|
|
Min. Illumination
|
0.02Lux@(F2.0,AGC ON )0Lux with IR
|
|
|
Shutter time
|
1/3 s to 1/100,000 s
|
|
|
Lens
|
4mm@ F2.2
|
|
|
Lens mount
|
M12 Support 2.4mm, 4mm, 6mm,8mm Lens
|
|
|
Day&Night
|
ICR Infrared filter type with auto switch
|
|
|
Digital noise reduction
|
3D DNR
|
|
|
Wide Dynamic Range
|
Digital WDR
|
|
Compression on Standard
|
Motion Detection
|
On /Off Sensitivity adjustment
|
|
|
Video Compression
|
H.264
|
|
|
H.264 code profile
|
Main profile
|
|
|
Video compression encoding rate
|
Ultra clear, HD, Balanced process
|
|
|
Max. Image Resolution
|
1920x1080@30fps
|
|
|
|
720x480@30fps
|
|
|
|
360x240@30fps
|
|
|
|
Capturing 2048*1536 JPG
|
|
|
|
Support mainstream and sub stream separately
|
|
|
Frame Rate
|
50 Hz:25 fps (1280 × 960), 25 fps (1280 x 720)
|
|
|
Image Settings
|
Saturation,Brightness, Contrast adjustable by client software or web browser
|
|
|
Backlight compensation
|
Support
|
|
Network
|
Smart Alarm
|
Motion detection
|
|
|
Key configuration
|
Find IP via P2P connection
|
|
|
General Function
|
Anti-Flicker, heartbeat,mirror, password protection
|
|
Interface
|
Storage Interface
|
Micro SD CARD MAX 128G
|
|
|
Power Interface
|
Micro USB interface
|
|
|
Communication Interface
|
1 RJ45, 10/100M
|
|
Wi-Fi specifications
|
Wireless Standards
|
IEEE802.11b, 802.11g
|
|
|
Frequency Range
|
2.1GHHZ~2.4835GHZ
|
|
|
Channel Band width
|
Support 20MHZ
|
|
|
Security
|
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
|
|
Transmission Rate
|
11b 11Mbps 11g 54Mbps
|
|
Alarm
|
RF alarm frequency
|
868.4MHZEU, 908.4MHZ US, 921.4MHZANZ, 869.2 MHZ RU
|
|
|
RF Distance
|
Indoor50m, outdoor100m
|
|
|
Support Alarm Senso
|
Magnetic contacts and PIR sensors
|
|
|
PIR*3PCS
|
Built-in 3PCS PIR sensor layout
|
|
General
|
Operating Conditions
|
Less than90% RH/-10° C ~ +45° C
|
|
|
Power Supply
|
12V5A
|
|
|
IR Range
|
10 m to 15 m
|
|
|
Dimensions (mm)
|
230*230*120mm
|
Related Products
FAQ
Q1. Why should I choose VERINUO Security Fog systems?
Re: VERINUO Security Fog systems are a great investment providing you with the added advantage of active security for your home or
business. VERINUO Fog can offer a proactive and practical approach to theft prevention. The Fog Generator can promptly reduce the
on-site visibility to zero in the unfortunate event of a break in by trigger powerful dense fog within few seconds(Fog ejection in
1 second, critical area being protected in 3 seconds, full of fog in 8 seconds), which significantly interrupt criminal activities
and make it hard for thieves to steal.
Q2. Is this security fog safe to our health?
Re: Yes, the fog are safe to use. The fog is made using natural materials and does not contain any harmful
substances or chemicals. Our products passed the toxicology test.
Q3. How long can this security fog last in closed room?
Re: The fog is very dense and will remain in closed room about 45 minutes.
Q4. How large area can be protected?
Re: VERINUO has variable models for 100m³ to 150m³ area protection(per single unit),also multiple generators installed can protect
larger area.
Q5. What's the advantage and difference between solid security fog generator & fluid one in the market?
Re: Normally fluid security fog machine needs heating, and have to change the fluid per year, very high power consumption when
heating, routine maintenance needed.
VERINUO solid security fog generator: fog modules are in seal package with better stability & reliability;
no need heating, fog ejection in 1 second, full of fog within 8s, very low power consumption;
and can be easily refilled with new fog module container at low cost, no special maintenance cost; smaller size at light weight,
multiple transportation options, lower logistic cost;
Q6. How can VERINUO security fog generator be triggered?
Re: Currently VERINUO fog generator has different control methods depends on the different models: panic button, remote control,
mobile phone app, cloud platform. Different models have variable supported triggered method. Or if you can connect to your own
security alarm panel, you can control by your security system.
Q7. Where is this security fog generator used for?
Re: Security fog systems can be applied anywhere need to be protected as a powerful supplement with traditional network alarm
system, such as bank(including ATMs), communication base stations, server rooms, important warehouses, private museums, jewelry or
luxury stores, etc.
Re: VERINUO Security Fog systems are a great investment providing you with the added advantage of active security for your home or
business. VERINUO Fog can offer a proactive and practical approach to theft prevention. The Fog Generator can promptly reduce the
on-site visibility to zero in the unfortunate event of a break in by trigger powerful dense fog within few seconds(Fog ejection in
1 second, critical area being protected in 3 seconds, full of fog in 8 seconds), which significantly interrupt criminal activities
and make it hard for thieves to steal.
Q2. Is this security fog safe to our health?
Re: Yes, the fog are safe to use. The fog is made using natural materials and does not contain any harmful
substances or chemicals. Our products passed the toxicology test.
Q3. How long can this security fog last in closed room?
Re: The fog is very dense and will remain in closed room about 45 minutes.
Q4. How large area can be protected?
Re: VERINUO has variable models for 100m³ to 150m³ area protection(per single unit),also multiple generators installed can protect
larger area.
Q5. What's the advantage and difference between solid security fog generator & fluid one in the market?
Re: Normally fluid security fog machine needs heating, and have to change the fluid per year, very high power consumption when
heating, routine maintenance needed.
VERINUO solid security fog generator: fog modules are in seal package with better stability & reliability;
no need heating, fog ejection in 1 second, full of fog within 8s, very low power consumption;
and can be easily refilled with new fog module container at low cost, no special maintenance cost; smaller size at light weight,
multiple transportation options, lower logistic cost;
Q6. How can VERINUO security fog generator be triggered?
Re: Currently VERINUO fog generator has different control methods depends on the different models: panic button, remote control,
mobile phone app, cloud platform. Different models have variable supported triggered method. Or if you can connect to your own
security alarm panel, you can control by your security system.
Q7. Where is this security fog generator used for?
Re: Security fog systems can be applied anywhere need to be protected as a powerful supplement with traditional network alarm
system, such as bank(including ATMs), communication base stations, server rooms, important warehouses, private museums, jewelry or
luxury stores, etc.
