Quick Details
-
Product Name:
-
Feed Through Terminal Block
-
Rated Current:
-
30A 40A 50A 75A 100A 150A 200A
-
Rated Voltage:
-
600V DC Max
-
Pins:
-
1-12Pin
-
Pitch:
-
11mm 13mm 16mm 21mm 27mm
-
Working Temperature:
-
-40℃ ~+105℃
-
Contact Material:
-
Brass with Nickel Plated
-
Color:
-
Red/Black
-
Material:
-
PA66
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
Feed Through Terminal Block
-
Product Name:
-
Feed Through Terminal Block
-
Rated Current:
-
30A 40A 50A 75A 100A 150A 200A
-
Rated Voltage:
-
600V DC Max
-
Pins:
-
1-12Pin
-
Pitch:
-
11mm 13mm 16mm 21mm 27mm
-
Working Temperature:
-
-40℃ ~+105℃
-
Contact Material:
-
Brass with Nickel Plated
-
Color:
-
Red/Black
-
Material:
-
PA66
Full
Series
Feed Through Type Barrier Block Connector
Product Description

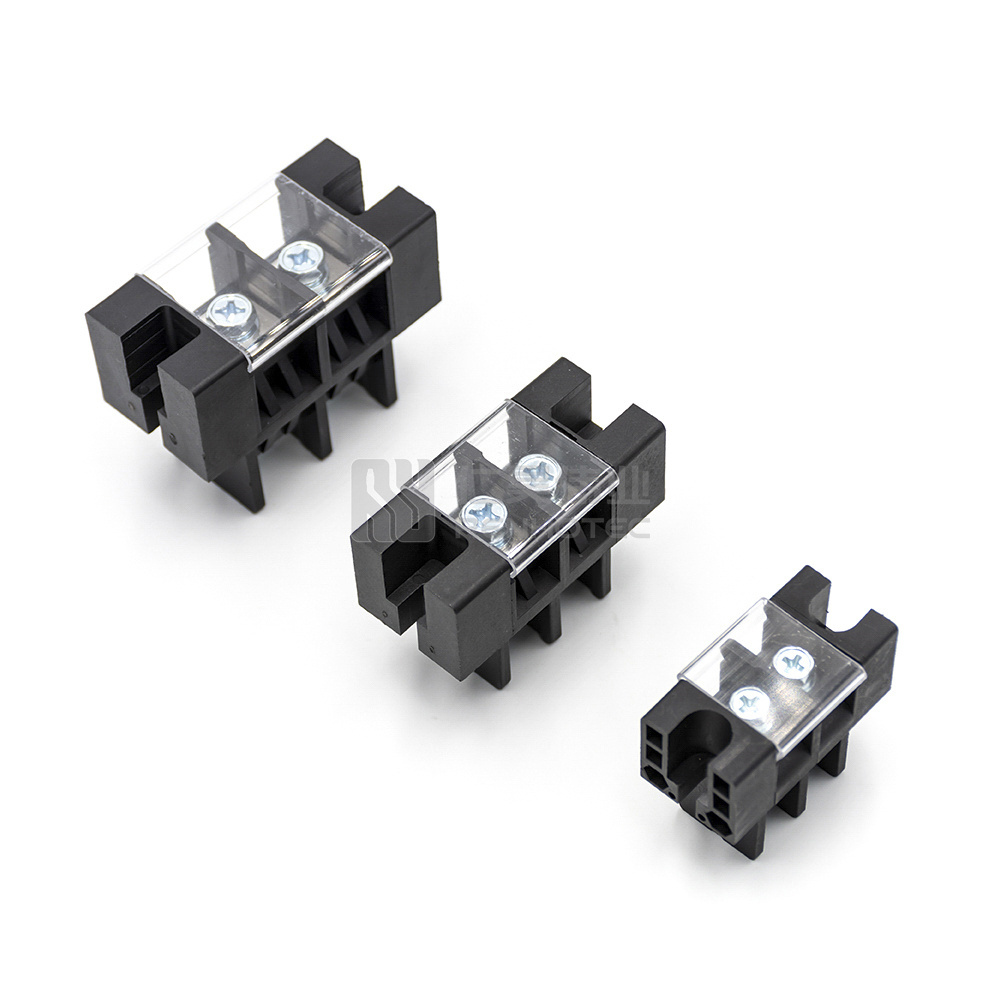

Feed Through Type Barrier Block Connector
Featuring many screw terminals, barrier terminal blocks are PCB or chassis mount connection points for connecting two or more cables without the need for plugs. They consist of screw, quick connect, solder tab, turret, wire wrap or threaded stud positions arranged in a continuous strip. Each position is fully insulated from the other positions. Blocks are differentiated by number of circuits, number of wire entries, pitch, number of rows, current and voltage ratings, wire gauge, and top or bottom termination.
Renhotec's barrier terminal blocks are designed with your industry needs in mind and are available in wide variety of customizable styles.
Products Detail
|
Orientation
|
Straight
|
|
Connection Method
|
Thread
|
|
Pitch
|
11mm / 13mm / 16mm / 21mm / 27mm
|
|
Number of Positions
|
1 Pin / 2 Pin / 3 Pin / 4 Pin / 5 Pin / 6 Pin / 7 Pin / 8 Pin /
9 Pin / 10 Pin / 11 Pin / 12 Pin
|
|
Rated Current
|
30A / 40A / 50A / 75A / 100A / 150A / 200A
|
|
Termination Style
|
Crimp
|
|
Wire Range
|
2.5mm²-4mm² / 8mm² / 22mm² / 38mm² / 80mm²
|
|
Color Option
|
Red / Black
|
|
Contact Material
|
Copper
|
|
Temperature Range
|
-40°C~ +125°C
|
