Quick Details
Quick Details
-

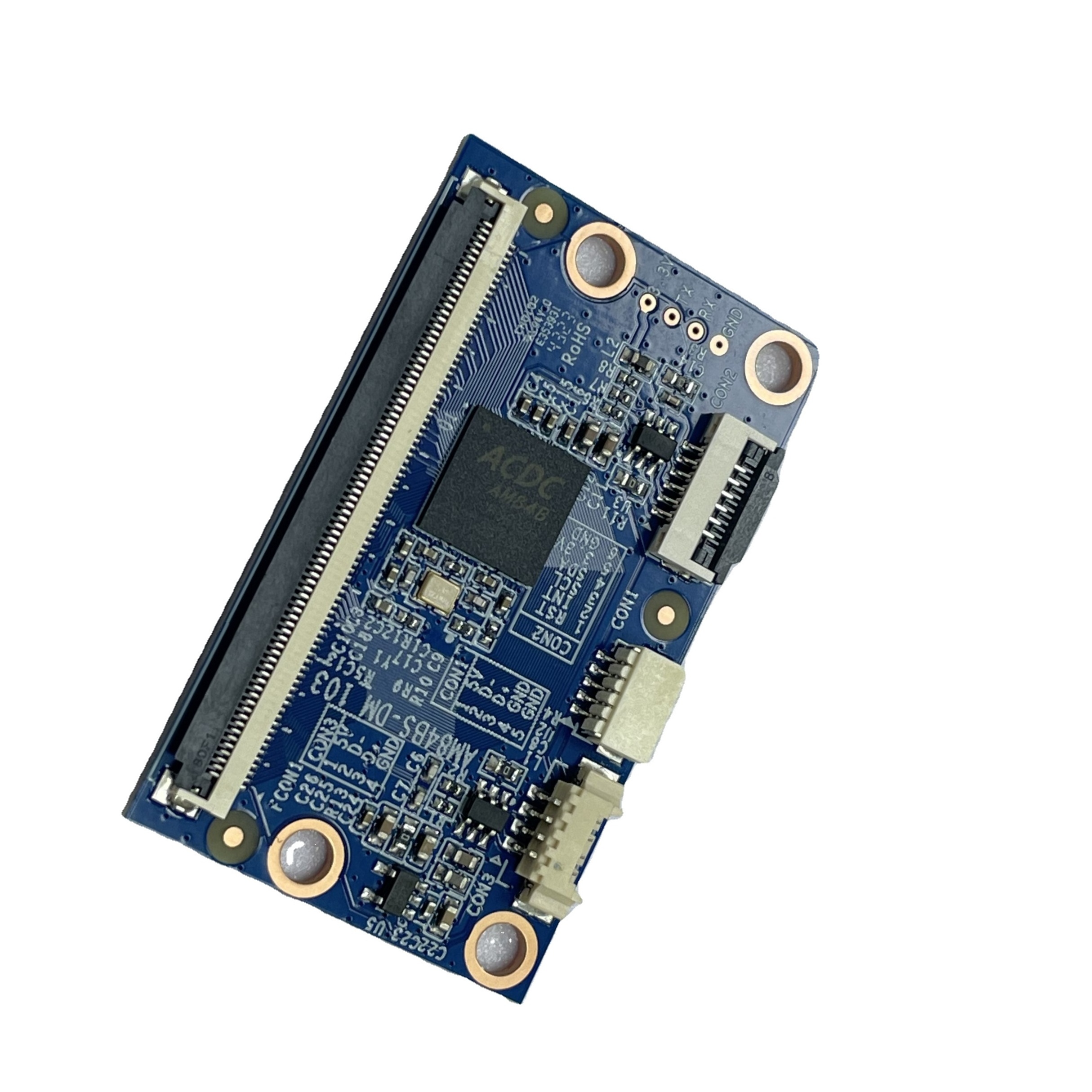

Model Number:
-
ACDC-103A1
-
Place of Origin:
-
China
-
Brand Name:
-
ACDC
Overview
Specification
|
PCB Thickness
|
1.6T
|
|
Touch IC
|
AM84B
|
|
Channels
|
Max.Tx:29 Rx45 channels
|
|
Input Voltage
|
4.5V ~ 5.5V, Typical 5V
|
|
Interface
|
USB: 1.1 Full-Speed
I2C |
|
Power Supply Current
|
< 150mA
|
|
Linearity/Accuracy
|
Line Drawing Accuracy:1pt ±1mm Offset/10mm
Touch(point)Accuracy:1pt ±1mm (Refer to Microsoft Windows 8 Logo regulation and channel pitch should be 5mm) |
|
Operating Temperature
|
-40 to 85 ℃
|
|
EMS
|
ESD: Max. Air: ±30kV Connect: ±15kV
EFT: Max ±4kV
CS: IEC61000-4-6 Level 3(Max: 10Vrms)
|
Product Description
