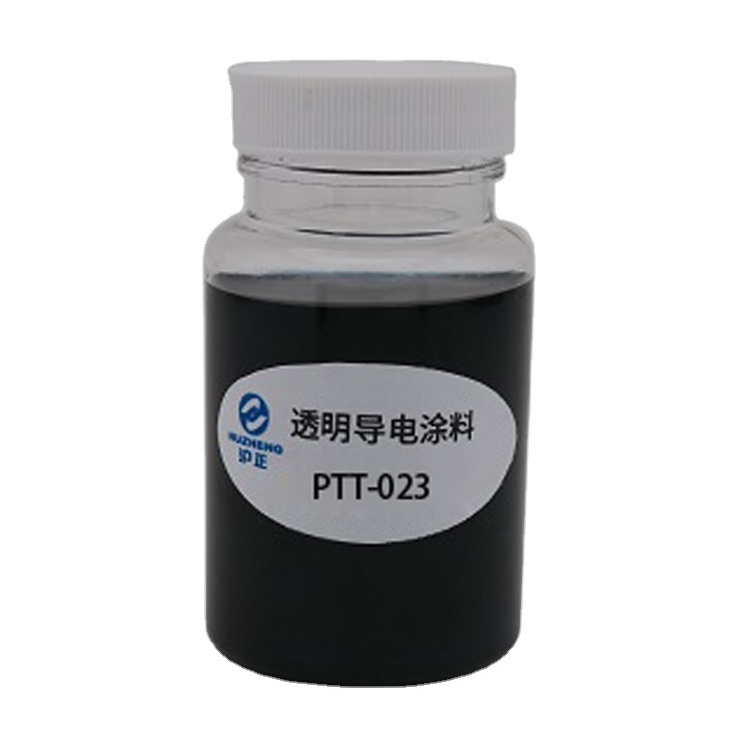

Transparent Conductive Coating for Plastic, Metal, Glass, Ceramic

PTT-023 is composed of special conductive polymer, transparent superconductivity electrical resin and other materials. It is a long-acting transparent conductive coating with low resistivity and high visible light transmission(VLT), the resistance can reach 80-400 Ω·cm, and VLT can reach 85%. Its resistance is very stable, not change with humidity and temperature. The coating is non-toxic, tasteless and environmentally friendly. It can be widely used on the surface of various materials such as PET, PP, PE, PC, acrylic, glass, ceramic, metal and so on, It can be used flexibly, cured at room temperature.

Product Parameter

Code                                                              PTT-023

Appearance                                                   Blue liquid

Main ingredient                                              Conductive polymer

Density 0.9 g/ml

Slovent                                                           Water-based

VLT                                                                 85%

Hardness                                                        HB-H

Resistance                                                      80-400Ω cm

Acid/alkali/water resistance                            Good

Product Feature

* Resistance 80 ~ 400 Ω·cm, stable resistance, not affected by humidity and temperature;

* Long lasting, good weather resistance, service life 5-8 years;

* Good transparency, VLT can reach more than 85%;

* The adhesion can reach level 0 (100-grid method), and the coating does not fall off;

* The coating adopts environment-friendly solvent, small smell.

Application Field

* Used for manufacturing various electronic touch screens, various transparent circuits and electrodes;

* Used for manufacturing various transparent conductive films and sheets;

* Available base materials: PET, PP, PE, PC, acrylic, glass, ceramic, metal or other materials.

Application Method

According to the shape, size and surface state of the substrate, the appropriate application methods, such as shower coating, wiping coating and spraying is selected. It is suggested that a small area should be tested before application. Take shower coating as an example to describe application steps briefly as follows:

Step 1: Coating.

Step 2: Curing. At room temperature, surface drying after 20 minutes, completely drying after 3 days; or heating at 100-120℃ for 5 minutes, to get cured quickly.

Notes:

1. Keep sealed and store in a cool place, make the label clear to avoid misusing.

2. Keep far from the fire, at the place where children can't reach;

3. Ventilate well and prohibit the fire strictly;

4. Wear PPE, such as protective clothing, protective gloves and goggles;

5. Prohibit contacting with the mouth, eyes and skin, in case of any contact, flush with large amount of water immediately, call a doctor if necessary.

Package & Storage

Packing: 20 liter/barrel.

Storage: In a cool, dry place, avoiding sun exposure.
