dali lighting control system Dali Light Dimmer Controller Communication / DALI to 10V PWM converter Lighting Control System

dali lighting control system Dali Light Dimmer Controller Communication / DALI to 10V PWM converter Lighting Control System

FOB Reference Price: Get Latest Price

≥2 Pieces

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: DALI to 10V PWM converter controller dali

Keyword:: DALI to 10V PWM converter dali lighting controller controller dali

Function:: DALI converter

Output Voltage:: 10V

10V PWM Output Current:: 1mA

Waterproof:: IP68

Power Metering Funtion:: Yes

Failure Report:: Yes

Dimming Version:: 10v PWM dimming

Size:: 85*26*26mm

PWM Frequency:: 1K Hz

Quick Details

Warranty(Year):: 5-Year

Type:: Remote Control

Max. Load Power:: 300

Place of Origin:: Guangdong, China

Brand Name:: DALI to 10V PWM converter controller dali

Keyword:: DALI to 10V PWM converter dali lighting controller controller dali

Function:: DALI converter

Output Voltage:: 10V

10V PWM Output Current:: 1mA

Waterproof:: IP68

Power Metering Funtion:: Yes

Failure Report:: Yes

Dimming Version:: 10v PWM dimming

Size:: 85*26*26mm

PWM Frequency:: 1K Hz

Products Description

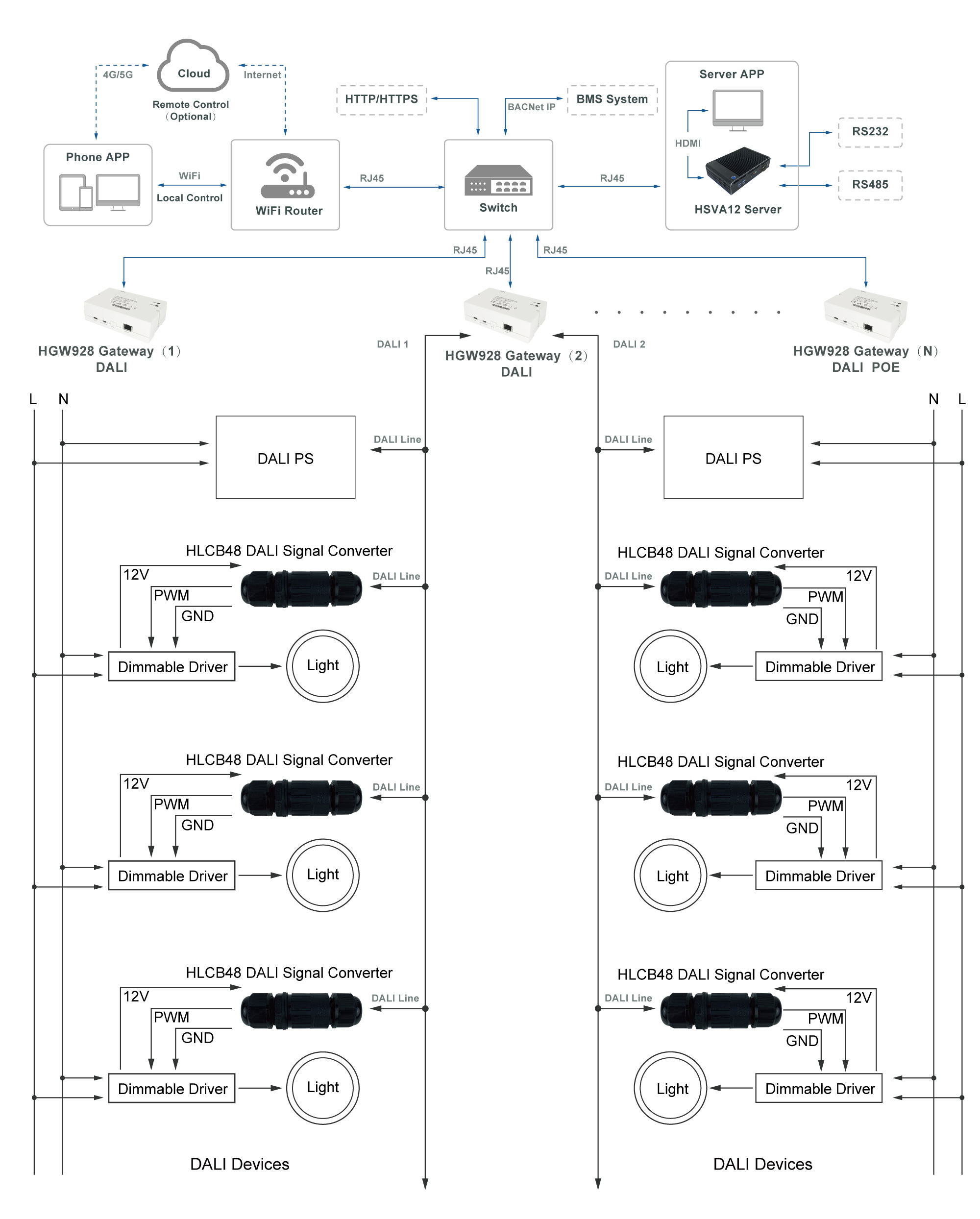

AHLCB48-D-WP-P is a kind of waterproof IP68 DALI converter with 12Vdc input and 10V PWM output. It connects to DALI bus and dimmable driver.

With Amelech’s HGW928-ZD/D Gateway or other DALI master, the converter manages short-distance or long-distance wireless control on LED lights by Mobile Phone, Tablet, PC, Wall Switch, Remote Control, Daylight Sensor and Motion Sensor.

Caution: Please keep the main power off while installing!

Parameter
Model	AHLCB48-D-WP-P
Input Voltage(V)	12V
Input Current	50mA
Output	10V PWM
PWM Frequency*	1K Hz
Operating Temperature	-40°C to 85°C
Net weight	29g
Gross weight	35g
Material	PA66+SI

Size: 125*68*40mm
Weight:80g
Package: 1pc/ package

iLightsIn Pro Product List:
Zigbee-Ethernet Gateway: HGW928

Controller

IP20 ZigBee 0-10V/ 1-10V/ PWM Dimming Controller: AHLC610-Z-SC-XX-XX-XX-3.0
IP65 ZigBee Round 0-10V/ 1-10V/ PWM Dimming Controller: AHLC734-Z-SC-A-XX-3.0
IP65 ZigBee 0-10V/ 1-10V Dimming Controller: AHLC912-Z-SC-A-3.0
ZigBee Triac Dimming Controller: AHLC721-Z-3.0
ZigBee 3 Channel On Off Controller: AHLC614-Z-3.0
ZigBee 12V/ 24V RGBCW/ RGBW/ RGB/ CCT/ Dimming Controller: AHLC502-Z-3.0

Driver

ZigBee 80W Dimming/ CCT Linear Driver with Power Metering: AHLD816-Z-XX-3.0
ZigBee 40W Dimming/ CCT Linear Driver with Power Metering: AHLD817-Z-XX-3.0
ZigBee 40W Dimming/ CCT Driver: AHLD503-Z-XX-PA-T-3.0
ZigBee 25W Dimming/ CCT Driver: AHLD719-Z-XX-PA-XX-3.0
ZigBee 15W Dimming/ CCT/ RGB/ RGBW/ RGBCW Driver: AHLD728-Z-XX-3.0
ZigBee 13W Dimming/ CCT Driver: AHLD812-Z-XX-PA-3.0

Sensor

ZigBee Standalone AC100V-277V/ DC12V IP65 Daylight Sensor: AHDS611-Z-3.0
ZigBee Round Standalone AC100V-277V IP65 Daylight Sensor: AHDS826-Z-3.0
ZigBee Round Standalone AC100V-277V IP65 CCT Daylight Sensor: AHDS826-Z-CT-3.0
ZigBee Standalone AC100V-277V IP65 15M Motion Sensor: AHMS823-3.0
Wired DC5V IP20/ IP65 15M Motion Sensor: AHSS937

Switch/ Remote control

ZigBee HA1.2 EU/ US 6-Scene Touch Switch: / AHTP601-Z-6S-PRO
ZigBee HA1.2 US Dimming/ CCT Touch Switch: AHTP601-Z-XX-PRO/ AHTP601-ZM-XX-PRO
ZigBee HA1.2 4-Channel Dimming/ CCT Remote Control: AHRC811-Z-PRO

Bridge

ZigBee 0-10V/ RS232/ Dali/ Dry contract/ L/N Detect Bridge: AHBG806-Z-PRO
ZigBee DC5V RGB Lights Music Dancing Audio Bridge: AHBG813-Z-PRO
