Quick Details
-
Brand Name:
-
MOMO
-
Model Number:
-
MM-CAH16-L
-
Voltage:
-
AC100-240V/50HZ-60HZ
-
Cache Capacity:
-
8M
-
Cutter Pressure:
-
50g~800g ,160 grade adjustable
-
Cutting Speed:
-
600mm/s
-
Driver:
-
High stepping motor, Digital DC stepper motor,microstep driving
-
Cutting Length:
-
Unlimited
-
Repeat Cutting:
-
0.082mm
-
Size:
-
765*307*267 mm
-
Contour cutting function:
-
Fast ,automatically and high precision contour cut by using camera.
-
Laser Carving:
-
Yes, 0.5W-2.5W adjustable
-
Operation:
-
4.3" TFT LCD Large touch screen
-
Interface:
-
HD large screen full-color APP information function display
-
Connector:
-
Real USB, U Disk
-
Contour cutting &calibration:
-
Easy use and high precision calibrate
-
Location mode:
-
Bound system. set origin freely
-
Command:
-
HP-GL, DMPL
-
Working environment:
-
+5℃~ +45℃,relative humidity 30%~70%
Quick Details
-
Paper Feed Width:
-
500mm
-
Cutting Width:
-
410mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOMO
-
Model Number:
-
MM-CAH16-L
-
Voltage:
-
AC100-240V/50HZ-60HZ
-
Cache Capacity:
-
8M
-
Cutter Pressure:
-
50g~800g ,160 grade adjustable
-
Cutting Speed:
-
600mm/s
-
Driver:
-
High stepping motor, Digital DC stepper motor,microstep driving
-
Cutting Length:
-
Unlimited
-
Repeat Cutting:
-
0.082mm
-
Size:
-
765*307*267 mm
-
Contour cutting function:
-
Fast ,automatically and high precision contour cut by using camera.
-
Laser Carving:
-
Yes, 0.5W-2.5W adjustable
-
Operation:
-
4.3" TFT LCD Large touch screen
-
Interface:
-
HD large screen full-color APP information function display
-
Connector:
-
Real USB, U Disk
-
Contour cutting &calibration:
-
Easy use and high precision calibrate
-
Location mode:
-
Bound system. set origin freely
-
Command:
-
HP-GL, DMPL
-
Working environment:
-
+5℃~ +45℃,relative humidity 30%~70%
China high quality cutting plotter/vinyl cutter machine with low price graphtec cutting plotter
Features:

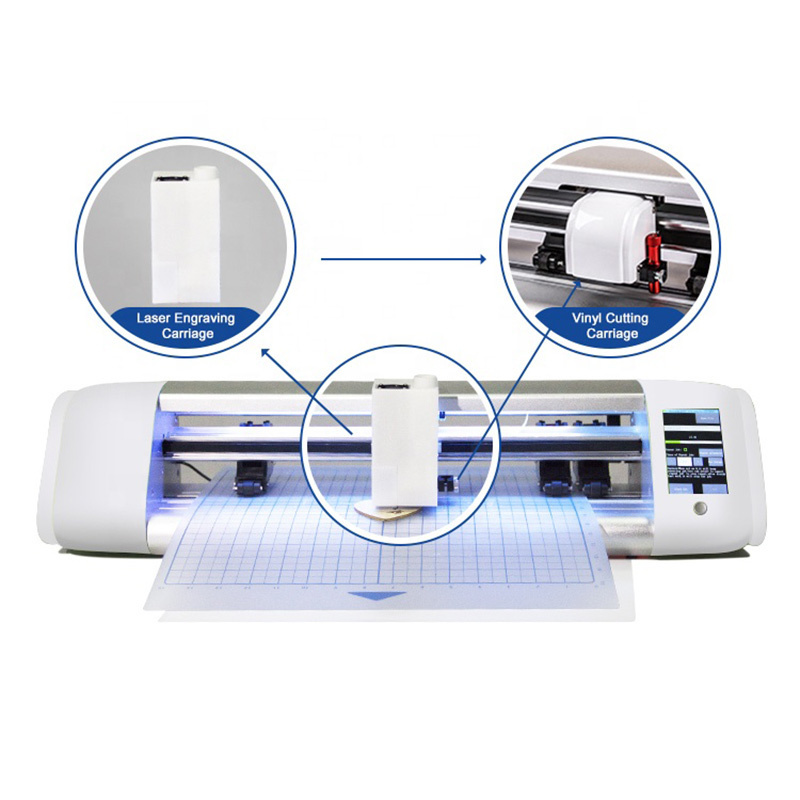

1.Laser option for cutting PVC,Wood, Metal material
2.Camera can identify any shape and any color Mark Point,
3.4.3 Large Touch Screen for visualized fine-funing operation
4.Auto Contour Cutting, High accuracy
5.Auto Calibrating, Auto Repeat Cutting
6.Real USB( NO USB Driver), U Disk Connection
7.Adjust Cutting Force or Cutting Speed during work time
8.32-bit ARM7 CPU, 8M Cache Memory,
9.One-Key Remote Upgrading
10.160 Setting adjustable, Cutting Force 800g Max,
11.Alumimum alloy Housing & High Precision Steel Axes
12.Colorful LED light bar design
13.Feed material way: steel roller+pinchwheel
14.English/Italian/Spanish/Japanese/Portuguese/Finnish/French/German.ch/German.
Tech Data
| Model | MM-CAH16-L(16 inch cutting plotter Laser) |
| Acceptable media width | 500mm |
| Max cutting width | 410mm |
| 16 inch | |
| Camera | Support |
| Laser Carving | Yes, 0.5W-2.5W adjustable |
| Contour cutting function | Fast ,automatically and high precision contour cut by using camera. |
| Operation | 4.3" TFT LCD Large touch screen |
| Interface | HD large screen full-color APP information function display |
| Connector | Real USB, U Disk |
| Contour cutting &calibration | Easy use and high precision calibrate |
| Mainboard | 32bit ARM cortex M4 MCU,8M memory. Support remote and one key update. |
| Location mode | Bound system. set origin freely |
| Driver | Digital DC stepper motor,microstep driving |
| Command | HP-GL, DMPL |
| Max moving speed | 750mm/s |
| Max cutting speed | 600mm/s |
| Max cutting thickness | 1mm |
| Force | Single head: 50g~800g ( 160 setting adjustable ) |
| Cutting precision | < ±0.1mm |
| Repeat precision | 0.082 mm |
| Power supply | DC24V 3A(AC100~240V/50Hz~60Hz 24V 3A) |
| Working environment | +5℃~ +45℃,relative humidity 30%~70% |
| Support Type | Desktop |
| Color | Silver-green/silver-white/black-red(optional) |
| Bracket | Optional |
| Size | 720*165*10mm |
| Packing G/N weight | 9.0 / 6.9kg |
| Software | SignMaster cut / Flexi / Signcut / CorelDRAW driver Optional |
| Operation system | Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10 |
| MAC OSX10.2.8 or above |
