Quick Details
-
Productivity:
-
22M³/H
-
Place of Origin:
-
Henan China
-
Brand Name:
-
Yugong
-
Weight:
-
1600 kg
-
Dimension(L*W*H):
-
3400*1200*1600mm
-
Product name:
-
Concrete mixer pump
-
Engine type:
-
electric or diesel
-
Aggregate size:
-
0.5-3CM
-
Work efficiency:
-
22m³/h
-
Delivery pressure:
-
15-28Mpa
-
Delivery voltage:
-
380V
-
Diameter of delivery pipe:
-
80/100mm
-
Motor power:
-
15-45KW
-
Horizontal conveying distance:
-
50-260m
-
Vertical conveying distance:
-
20-120m
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
400M
-
Productivity:
-
22M³/H
-
Place of Origin:
-
Henan China
-
Brand Name:
-
Yugong
-
Weight:
-
1600 kg
-
Dimension(L*W*H):
-
3400*1200*1600mm
-
Product name:
-
Concrete mixer pump
-
Engine type:
-
electric or diesel
-
Aggregate size:
-
0.5-3CM
-
Work efficiency:
-
22m³/h
-
Delivery pressure:
-
15-28Mpa
-
Delivery voltage:
-
380V
-
Diameter of delivery pipe:
-
80/100mm
-
Motor power:
-
15-45KW
-
Horizontal conveying distance:
-
50-260m
-
Vertical conveying distance:
-
20-120m
Product Description

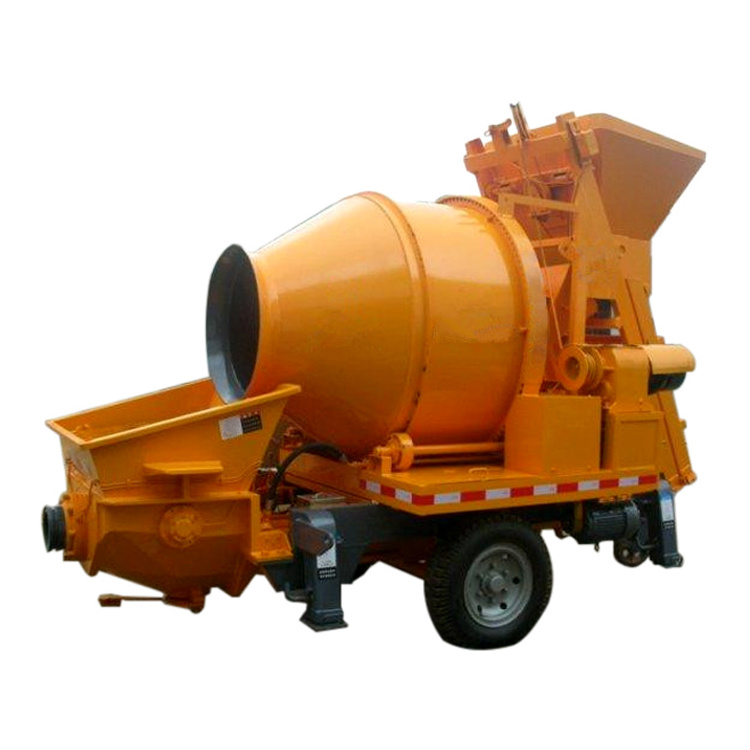

Concrete conveyor pump, also known as concrete pump, consists of pump body and convey pipe. It is a machine that uses pressure to continuously transport concrete along pipelines. It is mainly used in house construction, bridges and tunnel construction. Mainly divided into gate valve concrete transfer pump and S valve concrete transfer pump.
Specification
|
item
|
Specs
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Other
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Power Type
|
Diesel
|
|
Place of Origin
|
China
|
|
Brand Name
|
YG
|
|
Weight
|
600~3500kg
|
|
Dimension(L*W*H)
|
3400*1200*1600mm Different model with different size
|
|
Warranty
|
1 Year
|
|
UNIQUE SELLING POINT
|
Long lifetime
|
|
Max. vertical conveying distance
|
150M
|
|
Max. horizontal conveying distance
|
500M
|
|
Productivity
|
8-60M³/H
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2023
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Pump, Engine
|
|
Product name
|
Concrete Mixer Pump
|
|
Keyword
|
Construction Machinery Concrete Pumps
|
|
Concrete pump type
|
Diesel Motor Concrete Pump Machine
|
|
Application
|
Construction Engineering
|
|
Name
|
Mobile Concrete Mixing Pump
|
|
Color
|
Customers' Requirement
|
|
Engine
|
Disel
|
|
Power
|
15KW/22KW/37KW/45KW/55KW
|
|
Feature
|
High Working Efficience
|
|
Capacity
|
8-60m3/h
|
