Quick Details
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Swing over cross slide:
-
198mm
-
Swing in gap diameter:
-
476mm
-
Length in gap:
-
210MM
-
Center height:
-
166mm
-
Precision:
-
High Precision Machine
-
Product type:
-
Bench Lathe Machine
-
Function:
-
Metal Turning
-
Key word:
-
Lathe Machine
-
Power(W):
-
1.5KW
-
Max. Swing Diameter:
-
330mm
-
Certification:
-
CE, ISO9001, BV
-
Power (kW):
-
3
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Range of Spindle Speed(r.p.m):
-
70 - 2000r/min
-
Place of Origin:
-
Jiangsu, China
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Swing over cross slide:
-
198mm
-
Swing in gap diameter:
-
476mm
-
Length in gap:
-
210MM
-
Center height:
-
166mm
-
Precision:
-
High Precision Machine
-
Product type:
-
Bench Lathe Machine
-
Function:
-
Metal Turning
-
Key word:
-
Lathe Machine
-
Power(W):
-
1.5KW
-
Max. Swing Diameter:
-
330mm
-
Certification:
-
CE, ISO9001, BV
-
Power (kW):
-
3
Product Description for Hot Selling Top Quality Bench Lathe C0632A Mini For Sale Machine
♦ No change gear in tool box.
♦ The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametr al thread and module thread.
♦ M i nimum Cross feed 0.01mm/rev, Minimum Longitudinal feed 0.046mm/revv
Technical parameter for Hot Selling Top Quality Bench Lathe C0632A Mini For Sale Machine
|
MODELS |
C0632D |
|
Swing ove r bed |
330mm(13 ") |
|
Swing over cross slide |
198mm(7-25/32 ") |
|
Swing in gap diameter |
476mm(18-3/4 ") |
|
length in gap |
210mm(8-1/4 ‘’) |
|
Center height |
166mm(6-1/2 ") |
|
Center Distance |
1000mm(40 ") |
|
Spindle bore |
38mm(1-1/2 " ) or 40mm(1-9/16 ") |
|
Spindle nose |
D1-4 or D1-5 |
|
Taper in nose |
No5 morse |
|
Speeds number |
8 |
|
Speeds range |
70-2000r/min |
|
Cross slide travel |
170mm(6-11/16 ” ) |
|
Compound rest travel |
95mm(3-9/16 ") |
|
Lead screw thread |
8T.P.I. or 3mm pitch |
|
Feed rod diameter |
19mm(3/4 ” ) |
|
Cutting tool max section |
16mmx l6mm (5/8 ” x 5/8’‘) |
|
Threads imperial pitches |
42 Nos. 4-112T.P.I |
|
Threads metric pitches |
44 Nos. 0.1-7mm |
|
Threads diametral pitches |
25 Nos. 16-112DP |
|
Threads module pitches |
34 Nos. 0.1-1.75MP |
|
Longitudinal feeds imperial |
24 Nos. 0.00168-0.1175 " /rev |
|
Longitudinal feeds metric |
24 Nos. 0.046-3.249 mm/rev |
|
Cross feeds imperial |
32 Nos. 0.00046-0.03231 " /rev |
|
Cross feeds metric |
24 Nos. 0.01-0.703 mm/rev |
|
Quill diameter |
32mm(1-1/4 " ) or 42mm(1-21/32 ") |
|
Quill travel |
100mm(3-15/16 ") |
|
Quill taper |
No3 morse |
|
Main motor power |
1.5kW (2HP) |
|
Coolant pump power |
40W (1/16HP) |
|
Packing size |
93cm x76cmx 153cm |
|
NG/GW |
540/645 kg |

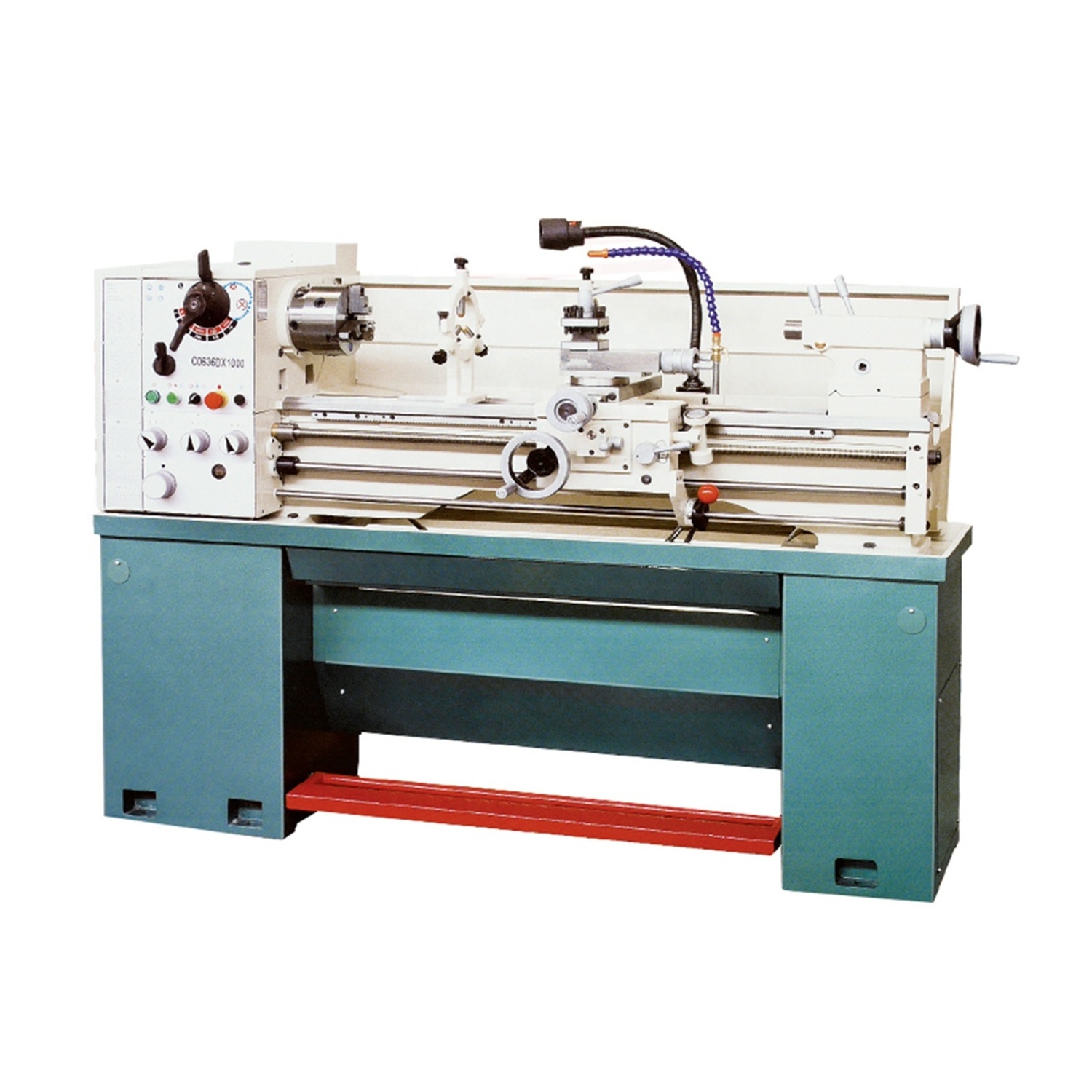

Product Pictures for Hot Selling Top Quality Bench Lathe C0632A Mini For Sale Machine
