Quick Details
-
Voltage:
-
380V
-
Power:
-
30-50kw
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
8000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
PVD vacuum coating machine
-
DIMENSION 1:
-
900*1000mm
-
DIMENSION 2:
-
1250*1500mm
-
DIMENSION 3:
-
1600*1800mm
-
Brand:
-
HCVAC
-
Technology:
-
Ion plating technology
Quick Details
-
Machine Type:
-
HCMS- pvd vacuum coating machine, Coating Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HCVAC
-
Voltage:
-
380V
-
Power:
-
30-50kw
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
8000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
PVD vacuum coating machine
-
DIMENSION 1:
-
900*1000mm
-
DIMENSION 2:
-
1250*1500mm
-
DIMENSION 3:
-
1600*1800mm
-
Brand:
-
HCVAC
-
Technology:
-
Ion plating technology
Product Description
The series of equipment is designed for big size stainless steel part to get a decorative coating by PVD ion plating technique, the ion plating layer has a real metal texture, which is much different from chemical coating.
We could make diameter from 800mm until 3200mm, height from 800mm until 7200mm.Popular application for different size stainless steel sheet ,pipe and accessories.
In China. 95% of Foshan stainless steel market are using our machine to decorative coating. We already exporting this machine to Korea,Thailand,Indonesia,singapore,Turkey,Dubai,Egypt and other more countries. We can do turnkey project for customers including all stainless steel surface treatment: 8K mirror,No.4. Hairline,etching,PVD,anto-finger coating and plastic lamintor line.
We could make diameter from 800mm until 3200mm, height from 800mm until 7200mm.Popular application for different size stainless steel sheet ,pipe and accessories.
In China. 95% of Foshan stainless steel market are using our machine to decorative coating. We already exporting this machine to Korea,Thailand,Indonesia,singapore,Turkey,Dubai,Egypt and other more countries. We can do turnkey project for customers including all stainless steel surface treatment: 8K mirror,No.4. Hairline,etching,PVD,anto-finger coating and plastic lamintor line.
Vertical hanging door type:
Vertical side door type:
Features
Popular colors which could get by PVD:
Real gold an real rose gold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
Real gold an real rose gold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
Stainless steel sheets size(2 pieces per cycle,3 pieces per cycle,4 pieces per cycle,6 Pieces per cycle)
size: 4" x 8" (1219mm x 2438mm) size: 4" x 10" (1219mm x 3048mm) size: 5" x 10" (1523mm x 3048mm) size (1500mm*4000mm) or More Longer.

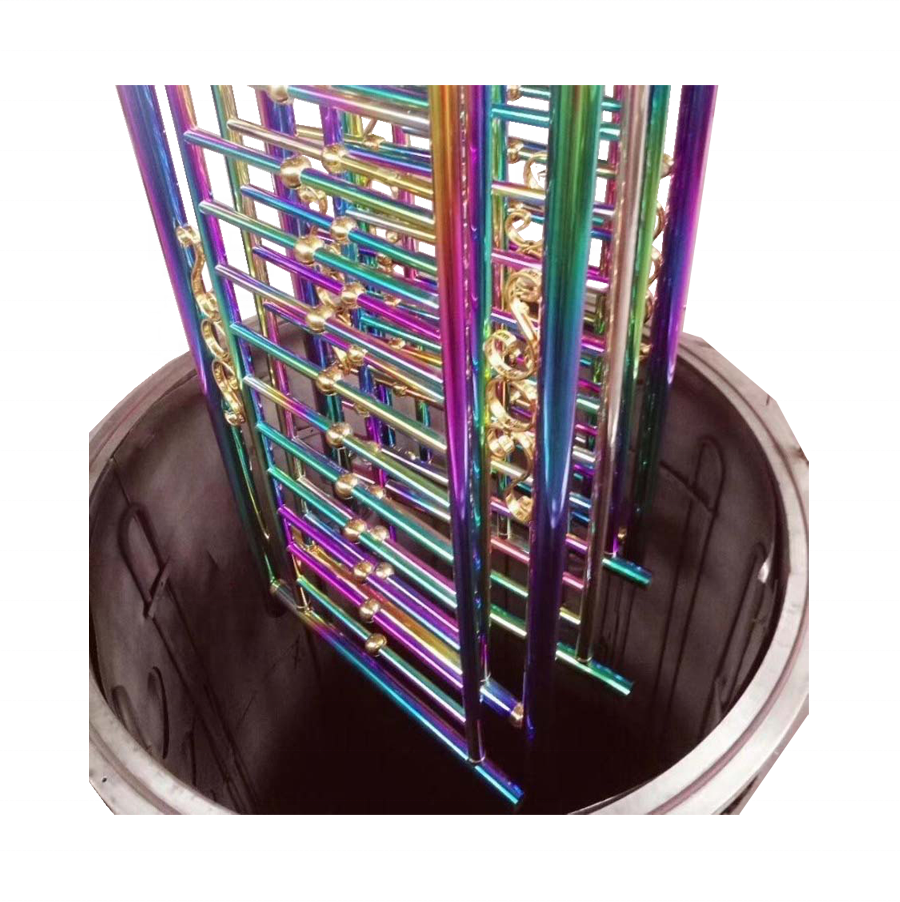

Stainless steel Accessories,Including Stair,Hotel trolley,chair,table,Dishes,spoons,bowls,coffee cup,teapot and others,Biggestsize can load Daimeter 2000*Height 3500mm
Stainless steel tubes:6 Meters Long Diameter upto 127mm.
