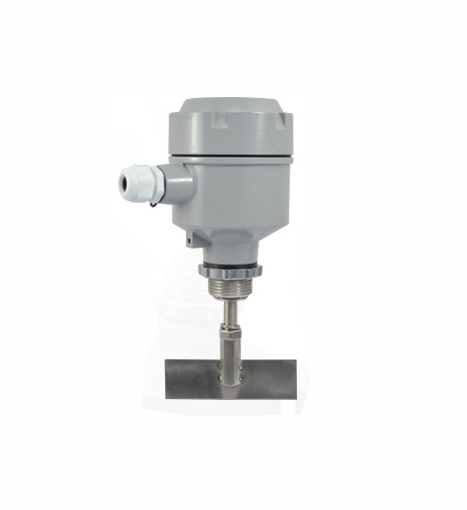

Shanghai Rotary Paddle Type Water Level Switch

Dear Frineds:

Thanks For you View The ne w production Rotary Paddle Type Water Level Switch

1)Bellow is the basic parameters ,pls check it with your working condition.

1 .The Model:XBD-1 ; XBD-2 ;XBD-3  ; XBD-R;

2. tHE Application:upper, lower limited measurement;

3 .Paddle Speed:5 or 6 r/m;

4. Medium Density:≥0.2g/cm3（bigger paddle）;

5 .Ambient Temp.:-10~+80℃;

6 .Power Supply:36VAC，110V，115V，220V，50Hz;

7 .Material Temp:-10~+80℃

2)The Advantages of Rotary Paddle Type Water Level Switch.

1). It has the features of anti-rust, no pollution, anti-humid, anti-dust etc. Both in foodstuff equipment and heavy-dust likes environments can be used for its most part exposed are made of stainless steel or aluminum alloy.
2). It can affectedly avoid the damage of motor and decelerator made by misusage or non-normal outside force.
3). For apply to different specific weight of materials, user can choose any shape and specification of test board. In order to user’s convenient, the machine core is set five devices for adjusting sensing.
4). Model XBD-*R is adopted cooler part, so it can use in the material environment which is ≤300℃ (which can not be done by the capacitance, tuning fork ultrasonic level detecting device)

Factory Address: No .10workshop,1F maolian Road No.390.jiuting Town songjiang china.
Address:Rm613, Jiahe Sunny Plaza, No.76  Songjiang District, Shanghai, P.R. China,Zip:201615

CX-ZXK-XB D-series Rotary Paddle Type Water Level Switch i s wide ly used in modern industry production line with warehouse section. It is used to monitor or control the level of powder and grain material in the open container and has many advantages of advanced technology, reasonable structure, reliable performance, easy maintenance, best cost performance etc., (take the high temperature type for example, its price is less than one third of imported product) compared with old products currently produced in domestic, is the first choice to substitute for imported one. The product is adopted a entirely new design of structure,

Without quality complaints in 3 consecutive years

More 30 years’ technology to focus details

The B Type Rotary Paddle.

The b type general used ,moreover the blade and length also could customized.

The C Type Rotary

The C type Side loading, increase the depth of measurement, reduce error.

80% instruments is for exporting

1. It has the features of anti-rust, no pollution, anti-humid, anti-dust etc. Both in foodstuff equipment and heavy-dust likes environments can be used for its most part exposed are made of stainless steel or aluminum alloy.
2. Rotary Paddle Type Water Level Switch can affectedly avoid the damage of motor and decelerator made by misusage or non-normal outside force.

3. For apply to different specific weight of materials, user can choose any shape and specification of test board. In order to user’s convenient, the machine core is set five devices for adjusting sensing.

4. Model XBD-*R is adopted cooler part, so it can use in the material environment which is ≤300℃ (which can not be done by the capacitance, tuning fork ultrasonic level detecting device)
