Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
Entire Line
-
Weight:
-
4000 KG
-
Dimension(L*W*H):
-
39000*2500*5000mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
raw material:
-
wheat flour,corn/rice powder,meat, fish meal
-
apply:
-
pet ,dog ,fish ,cat food
-
Main motor:
-
22, 30, 55, 75, 90, 115kw etc.
-
Capacity:
-
100kg/h to 3000kg/h
-
type:
-
wet or dry type
-
material:
-
stainless steel
-
whatsapp:
-
+86 15020006735
-
wechat:
-
15020006735
-
Color:
-
Silver
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingrun
-
Voltage:
-
380V/50HZ
-
Power:
-
Entire Line
-
Weight:
-
4000 KG
-
Dimension(L*W*H):
-
39000*2500*5000mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
raw material:
-
wheat flour,corn/rice powder,meat, fish meal
-
apply:
-
pet ,dog ,fish ,cat food
-
Main motor:
-
22, 30, 55, 75, 90, 115kw etc.
-
Capacity:
-
100kg/h to 3000kg/h
-
type:
-
wet or dry type
-
material:
-
stainless steel
-
whatsapp:
-
+86 15020006735
-
wechat:
-
15020006735
-
Color:
-
Silver
Single screw extruder
US2000-2500
twin screw extruder
US8000-14000

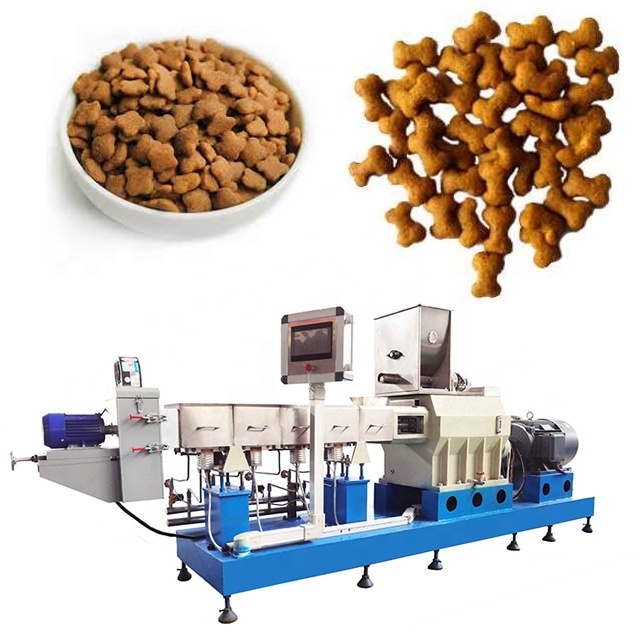

full production line dry dog pet food making processing machine
Pet machine is suitable to make dry and wet type pet food pellet (dog food, cat food, fish food etc.)
1). All pet food equipments are made of stainless steel.
2). The pet food whole line fully continuous and automatic.
3). Dingrun provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your require)
Flow chart:
grinding→mixing→extruding→drying→flavoring→cooling→packaging
Flow chart diagram:
Technical Parameter For Pet Food Extruder:
|
Model
|
Installed Power
(kw)
|
Power Consumption (kw)
|
Capacity
(kg/h)
|
Dimension
(m)
|
|
DSE65 processing line
|
74
|
52
|
120-180
|
17*1.2*2.2
|
|
DSE70 processing line
|
95
|
70
|
200-300
|
20*1.5*2.2
|
|
DSE75 processing line
|
110
|
82
|
250-400
|
26*1.5*2.2
|
|
DSE85 processing line
|
139
|
104
|
400-800
|
28*3.5*4.3
|
|
DSE90 processing line
|
132
|
75
|
800-1200
|
28*3.5*4.3
|
|
DSE95 processing line
|
165
|
90
|
1500-2000
|
35*3.5*4.3
|
|
DSE120 processing line
|
469
|
380
|
2000-2500
|
45*20*22
|
|
DSE135 processing line
|
712
|
570
|
3000-3500
|
50*20*25
|
Raw Material:
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.can also add fresh bone, meat, etc.
Equipment list in the pet food production line:
mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine
|
Name
|
Mixer
|
|
Usage
|
To mix the raw materials evenly, fast speed, no leakage.
|
|
Type
|
Vertical and horizontal type
|
|
Motor
|
3kw, 4kw, 7.5kw etc.
|
|
Capacity
|
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
|
|
Material
|
stainless steel, carbon steel
|
|
Name
|
Twin screw extruder
|
|
Usage
|
To extrude the raw materials and make them to the required shape and size of the pet food pellets by mould
|
|
Model
|
DSE65, 70, 75, 90, 95, 120, 135
|
|
Motor
|
22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
Screw materials 38CrMoAl
stainless steel, carbon steel
|
Dry type twin screw extruder for pet food
capacity from 100kg/h to 1 ton/h
Wet type twin screw extruder for pet food
capacity from 200kg/h to 10 ton/h
|
Name
|
Dryer (oven)
|
|
Usage
|
the expanded food go through the "s" passage, to be dried to increase the self life.
|
|
Type
|
electrical, steam, gas fired, diesel fired heating type
|
|
Model
|
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
stainless steel, carbon steel
|
Electrical heating dryer
Gas or Diesel fired heating dryer
|
Name
|
Flavoring machine
|
|
Usage
|
To mix the oil and flavors on the surface of the pet food
|
|
Type
|
single and double flavoring drum
|
|
Motor
|
0.75kw
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
stainless steel
|
|
Name
|
Packaging machine
|
|
Usage
|
To pack the pet food with required weight
|
|
Type
|
Automatic
|
|
Flowing Process
|
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
|
|
Weight range
|
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
|
|
Material
|
stainless steel, carbon steel
|
1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines,
how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw,
how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.
Packing and delivery
• Inside package is plastic film, outside is wooden or plywood case (based on the customers’
need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
