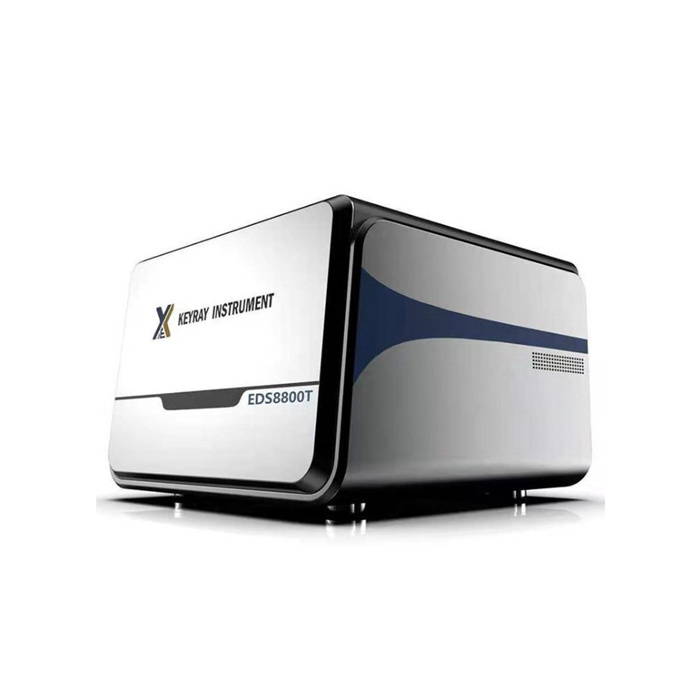

Best price EDS-8800T XRF Precious Metal Analyzer/XRF Gold analyzer tester/Gold Silver Testing Machine
The Principle of Energy Dispersive X Fluorescence Spectrometer High-energy X-ray stimulates atomic electron shell,the extranuclear electron of atoms will jump and secondary X-ray energy releases. Because the energy that different element releases possesses different characteristic. Detection system can measure the energy and quantity to calculate the elements content.Detection system can measure the energy and quantity to calculate the elements content.
The Main Components
High Voltage-X-Ray Tube-Detector ,&Pre-Amplifier-Main Amplifier-DPP-Control Module-Communication Module-Display System, etc.
Currently using XRF analyzer for composition analysis of precious metals and purity judgment has become a method of reliable performance, widely application and high popularity. Moreover XRF analyzers have the support of the national standard. Compared with fire assay method and chemical reagents test method, using XRF analysis of precious metals is a much more quickly, more economic and multi-element detection method.
Fluorescence spectrum analyzers produces provide a detection technology of convenient operation ,competitive price, stable and accurate performance. We don't need to put test tools into the tested sample materials, and do not damage the samples being measured, then we can obtain the metal elements information of jewelry. The whole testing process only takes couple of minutes. All the liquid, solid and powder samples are available.
|
P erformance and C onfiguration Analysis R ange ppm to 99.99% Accuracy 0.01% (Au ≥ 96%) Sample F orm Solid, powder, liquid Tube V oltage 5KV ~ 50KV High Voltage Power Supply 0 ~ 50KV Camera HD camera Filters S electable c ustomized switch es Detector T ype SDD Resolution 1 3 5 ± 5 e V Multichannel A nalyzer Digital multichannel Sample C hamber S ize 31 0 * 27 0 * 8 0 (mm) Test T ime 5 ~ 6 0sec Measuring E lement 72 elements from sodium (Na) to uranium (U) between all elements Analysis S oftware Keyray q ualitative and quantitative analysis software Analysis S oftware Keyray q ualitative and quantitative analysis software External D imensions 46 0 * 39 0 * 36 0 (mm) Weight 38 Kg
|
