Quick Details
-
Voltage:
-
110V/220V/380V
-
Place of Origin:
-
Zhejiang, China, Zhejiang,China(mainland)
-
Brand Name:
-
Chunlai, Chunlai
-
Dimension(L*W*H):
-
3800*800*1700
-
Weight:
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Material:
-
stainless steel
-
Function:
-
Filling, Sealing
-
material:
-
304 stainless steel
-
warranty:
-
12 months
-
characteristic:
-
multi-function
-
superiority:
-
stable safe and fast
-
Certification:
-
Factoryself Test
Quick Details
-
Packaging Type:
-
CANS, Bottles, Barrel, Film, Foil, Capsule
-
Packaging Material:
-
Wood
-
Driven Type:
-
Electric
-
Voltage:
-
110V/220V/380V
-
Place of Origin:
-
Zhejiang, China, Zhejiang,China(mainland)
-
Brand Name:
-
Chunlai, Chunlai
-
Dimension(L*W*H):
-
3800*800*1700
-
Weight:
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Material:
-
stainless steel
-
Function:
-
Filling, Sealing
-
material:
-
304 stainless steel
-
warranty:
-
12 months
-
characteristic:
-
multi-function
-
superiority:
-
stable safe and fast
-
Certification:
-
Factoryself Test
Product Description

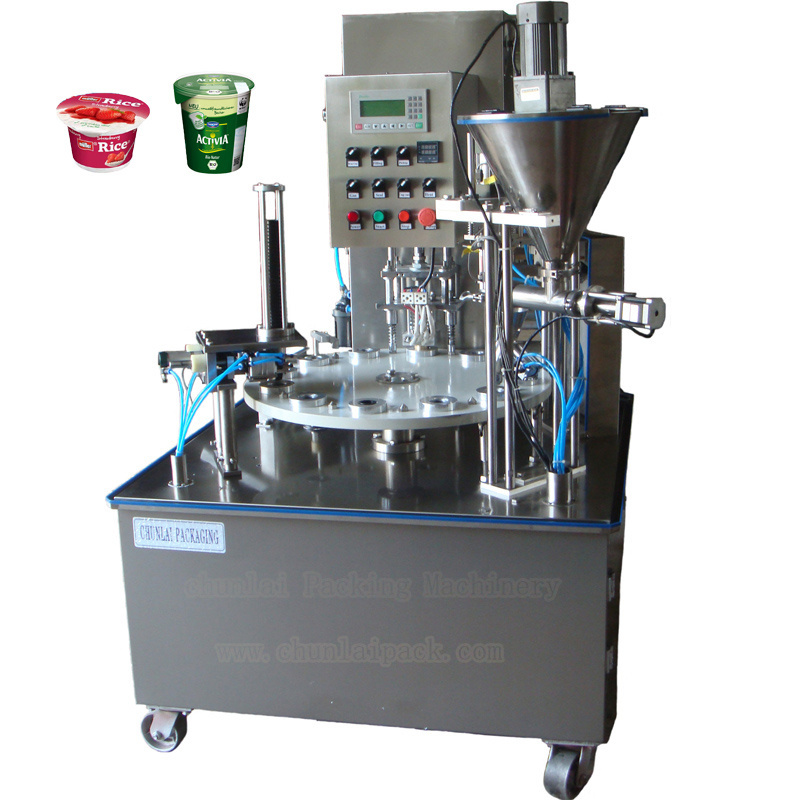

KIS-900 Automatic Cup Filling and Sealing Machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or pre-cut foil
Filling: liquid, paste, powder, granule
KIS-900 series are applicable to fill and seal cups, bowls, boxes, trays, cans, pots and so on, used to fill with liquid, cream or solid material, such as yoghurt, milk, jelly, juice, ketchup, fruit salad, pulp, mineral water and so on.
Features:
1. It adopts stainless steel as frame, aluminium rotary board or stainless steel rotary board..
2. The food contact parts adopt 304 or 316 stainless steel material with food hygiene requirements.
3. It adopts pneumatic drive and PLC control. It can automatically drop cup, fill, pull roll film, cut roll film and wasted film recycling or place pre-cut aluminium foil, heat sealing.
Optional Configuration
1. conveyer
2. CIP tank
3. mix tank
4. double jacket tank
5. photocell
6. date printing
7. Plexiglass
Details Images
Main Function
1. automatic cup dropping (cups can be stacked, but can’t stick together)
2. automatic filling yogurt
3. automatic sock foil
4. automatic sealing
5. automatic cup exiting
2. automatic filling yogurt
3. automatic sock foil
4. automatic sealing
5. automatic cup exiting
Technical Parameter
|
Model
|
KIS-900
|
KIS-900-2
|
|
|
Production capacity
|
800-1000 cups/h
|
1600-2000 cups/h
|
|
|
Filling range
|
can be customized
|
|
|
|
Filling accuracy
|
<±1.5%
|
|
|
|
Vessel
|
cup, tray, bottle, box, can, container, tub, bucket, pot, etc.
|
|
|
|
Voltage
|
3N 380V/ single phase 220V, 50/60Hz
|
|
|
|
Air consumption
|
1 Kw
|
1.5 Kw
|
|
|
Dimension
|
0.6 m3 /min
|
0.8 m3/min
|
|
|
Weight
|
1000mmX1000mmX1650mm
|
1100mmX1100mmX1650mm
|
|
|
Weight
|
250Kg
|
400Kg
|
|
