Quick Details
-
Item:
-
1080p 60fps 3D stereo camera module
-
Max resolution:
-
3840x1080
-
Lens:
-
No distortion 85/100/115/125 degree lens
-
Image Sensor:
-
1/2.7" JX-F35
-
Cable:
-
1.2 m
-
OTG:
-
Support
-
High Frame rate:
-
3840x1080 Mjpeg 60FPS
-
UVC:
-
Free driver, Plug and Play
-
Parameters:
-
Adjustable
-
Operating system:
-
Windows, Linux, Android, Mac OS, Ubuntu, Raspberry pi
-
Special Features:
-
4MP 1080P High Resolution USB Camera, Synchronization Dual Lens USB Camera
-
Function:
-
Wide Angle 85/100/115/125Degree, Undistored No Distion Lens, 60fpsHigh Frame Rate
-
Video Compression Format:
-
Mjepg and YUY2
-
Data Storage Options:
-
PC
-
Application:
-
Face Detection, Human Motion Tracking, Motion Detection, People Counting
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USB3D1080P02-V85
-
Item:
-
1080p 60fps 3D stereo camera module
-
Max resolution:
-
3840x1080
-
Lens:
-
No distortion 85/100/115/125 degree lens
-
Image Sensor:
-
1/2.7" JX-F35
-
Cable:
-
1.2 m
-
OTG:
-
Support
-
High Frame rate:
-
3840x1080 Mjpeg 60FPS
-
UVC:
-
Free driver, Plug and Play
-
Parameters:
-
Adjustable
-
Operating system:
-
Windows, Linux, Android, Mac OS, Ubuntu, Raspberry pi
-
Special Features:
-
4MP 1080P High Resolution USB Camera, Synchronization Dual Lens USB Camera
-
Function:
-
Wide Angle 85/100/115/125Degree, Undistored No Distion Lens, 60fpsHigh Frame Rate
-
Video Compression Format:
-
Mjepg and YUY2
-
Data Storage Options:
-
PC
-
Application:
-
Face Detection, Human Motion Tracking, Motion Detection, People Counting
Professional USB Webcam Camera Manufacturer

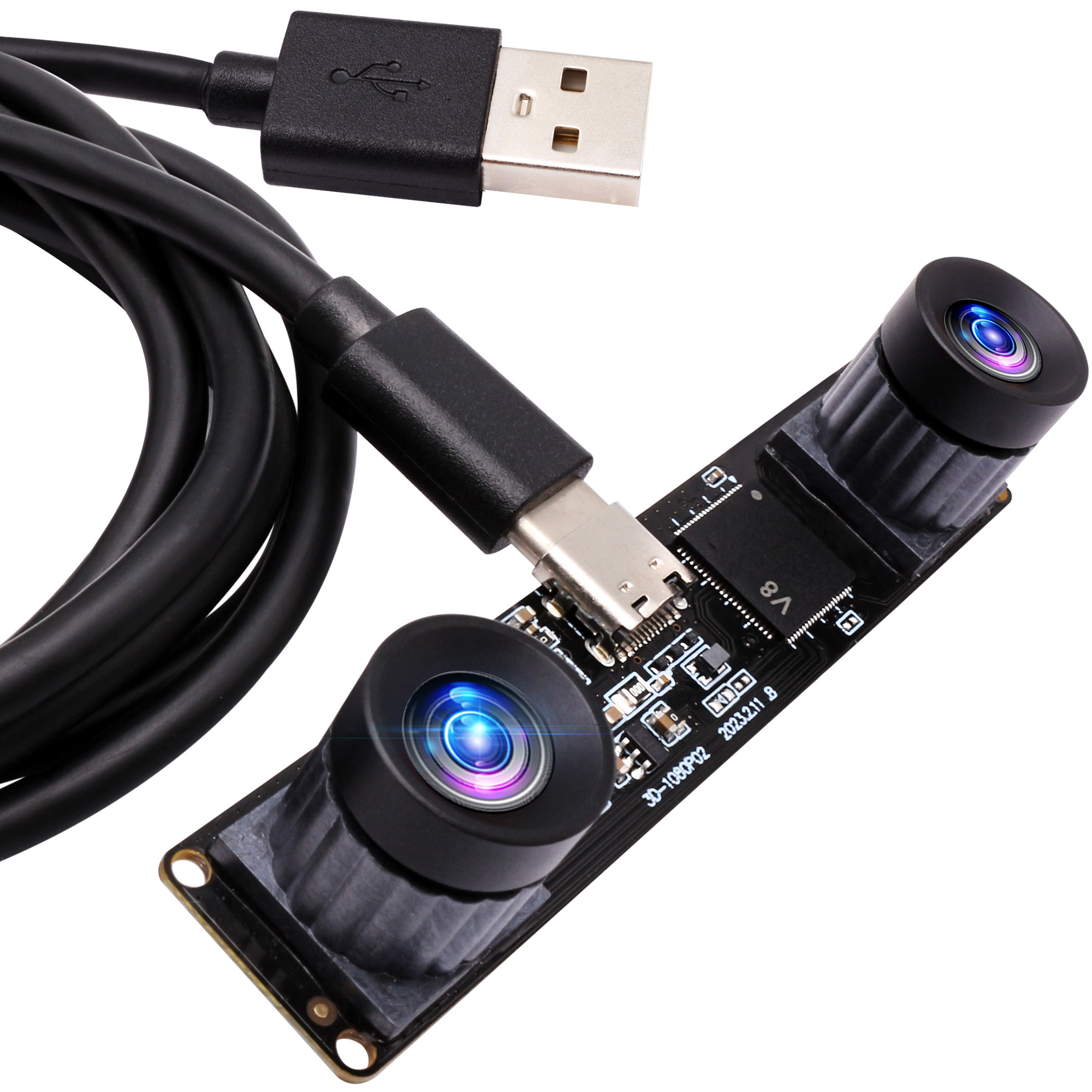

ELP 4MP Dual Lens USB Camera Synchronization PC Camera High Speed 1080P 60fps Lightburn Camera Binocular Webcam Board Mini UVC USB2.0 Laser Engraver Camera Module for Computer Raspberry Pi Jetson Nano
Model:
ELP-USB3D1080P02-V85
4MP 1080P
synchronization 3D stereo camera module with wide angle dual 85 degree lens
Product Description
* Based on 1/2.7” JX-F35 image sensor, dual lens, UVC compliant USB 2.0 cameras. This is a mini 80mmx17.2mm 4mp usb camera board that can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, home security monitoring, online teaching, live streaming, online meeting or embedded industrial project.
* No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.
* Dual lens with fast frame 1080P@60fps to capture the quick moving object, works like the human eye, and shots the imaging you want.
* Ultra HD resolution meets your request for higher quality video still pictures resolution.
* No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.
* Dual lens with fast frame 1080P@60fps to capture the quick moving object, works like the human eye, and shots the imaging you want.
* Ultra HD resolution meets your request for higher quality video still pictures resolution.
ELP 4MP Synchronize 3D camera with high-tech chips, small size dual lens stereo camera module 1080p webcam board for PC
Features
1.
Sensor:
Dual lens camera module with 1/2.7 inch JX-F35 Sensor
2. High Frame Rate: High Speed 3D Stereo camera 3840x1080 Mjpeg 60FPS
2. High Frame Rate: High Speed 3D Stereo camera 3840x1080 Mjpeg 60FPS
3.
Sychronous dual lens camera:
2 megapixel 1080P dual lens usb camera, (Two images Synchronized)
4. HD Lens: With dual lens, 85 degree No distortion lens. 100/115/125 dgree lens optional
4. HD Lens: With dual lens, 85 degree No distortion lens. 100/115/125 dgree lens optional
5.
Mini
size:
80x16.5mm micro usb camera module for android
6.
Compatible System:
Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC,Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.
7.
UVC free driver:
Plug and Play, simple to use, suitable for all kinds of users
8. Multi-applications: 1080P Full HD dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system...
9. Parameters adjustable: USB web camera Parameters changable Brightness, Contrast, Saturation, White Balance, Gamma, Definition,Exposure...
10. Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi...
8. Multi-applications: 1080P Full HD dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system...
9. Parameters adjustable: USB web camera Parameters changable Brightness, Contrast, Saturation, White Balance, Gamma, Definition,Exposure...
10. Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi...
Specification
|
Model
|
ELP-USB3D1080P02-V85 (V85 no distortion lens, HFOV about 85 degree)
|
|
Optional Models
|
ELP-USB3D1080P02-H100 (H100 no distortion lens, HFOV about 100 degree)
ELP-USB3D1080P02-H110 (H110 no distortion lens, HFOV about 115 degree)
ELP-USB3D1080P02-H120 (H120 No distortion lens, HFOV 125 degree)
|
|
Sensor
|
JX-F35
|
|
SensorSize
|
1/2.7inch
|
|
Pixel Size
|
3.0µm x 3.0µm
|
|
Max. Resolution
|
3840(H)X1080(V)
|
|
Compression Format
|
MJPEG/ YUY2 (YUYV)
|
|
Resolution & Frame Rate
|
MJPEG:3840X1080@60fps/2560X720@60fps /1600X600@60fps
1280X480@60fps /640X240@60fps |
|
Sensitivity
|
4.5V/lux-sec@550nm
|
|
Minillumination
|
0. 3lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port Type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class(UVC)
|
|
Support OTG Protocol
|
USB2.0 OTG
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
Adjustable Parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White Balance,
Backlight Contrast, Exposure |
|
Lens Parameter
|
M12 Lens No distortion 85 degree lens (100/115/125 degree lens optional)
|
|
Power Supply
|
USB BUS POWER Type-C
|
|
Operating Voltage
|
DC5V
|
|
Working Current
|
210mA~240mA
|
|
Working Temperature
|
-10~70℃
|
|
Storage Temperature
|
-20~85℃
|
|
Board Size /Weight
|
80X16.5mm/ About 45g
|
|
Cable
|
Standard 1.2M
|
|
Operating System Request
|
Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC(above linux-2.6.2) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Display
ELP
Ultra HD 4mp USB camera, 3D Camera with synchronization dual lens for Computer and Raspberry Pi, 1080P 60fps webcams
1080P Synchronization
* High resolution, high sharpness, excellent image.
* Dual lens two images synchronized.
* Well used for 3D Video device
* Well used for 3D Video device
1080P Mjpeg 60FPS
* High speed, High Frame Rate
* 3840*1080 Mjpeg 60FPS
* Ideal for fast speed recording & Live streaming
* Ideal for fast speed recording & Live streaming
Wide Angel 85 degree No distortion
* Undistorted No distortion lens
* Wide Angle View
* HFOV about 85 degree
* HFOV about 85 degree
Mini Size
* Mini 80mmx38mm camera board can be installed in most hi-dden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, etc.
4MP 3840x1080 60fps Synchronize mini dual lens usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc, supported different system Windows, Linux, Andorid, Mac OS.
Plug and Play/Free Driver
* UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
High Compatibility:
Can Work With Most OS:
* WINDOWS / CHROME OS / LINUX / MAC OS / ANDROID / UBUNTU
* WINDOWS / CHROME OS / LINUX / MAC OS / ANDROID / UBUNTU
FOR PC:
* Support windows,linux,mac,Android,raspberry Pi
* Very easy to use,UVC compliant,free driver,just plug in and go.
* Very easy to use,UVC compliant,free driver,just plug in and go.
FOR RASPBERRY PI
* It can work with already preinstalled camera software instead of builtin camera.
* Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
* Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR Android (Mobile Phone, tablet...)
* Support Android System* OTG support, connect to Android Mobile phone, Tablet...via OTG cable
* Record life videos anywhere anytime to record important moment.
* Record life videos anywhere anytime to record important moment.
Software & APP
Windows: Amcap, iSpy, USB Camera,Webcam Viewer... Linux: OpenCV, VLC, V4L2, Fswebcam...
Mac OS: Quick Time, Photo Booth, Facetime, TouchDesigner...
Android: CameraFi, USB Camera...
Also support Zoom, Skype, Youtube....
Mac OS: Quick Time, Photo Booth, Facetime, TouchDesigner...
Android: CameraFi, USB Camera...
Also support Zoom, Skype, Youtube....
Small outline and thin profile for embedded machine visions,low power consumption – ideal for portable equipment. Widely used for:
* Life Recording
* 3D VR Camera
* Stereo 3D Vision
* Face Recognition
* Stereo Scopic Computer Vision
* eye tracking device
* Life Recording
* 3D VR Camera
* Stereo 3D Vision
* Face Recognition
* Stereo Scopic Computer Vision
* eye tracking device
