- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hechuang
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5.2*0.8*0.6m
-
Weight:
-
5600 kg
-
Product name:
-
roll forming machine manufacture omega C profile drywall machine
-
Usage:
-
Steel Construction
-
Raw material:
-
PPGI
-
Roller material:
-
45#steel Chrome Plated
-
Main frame:
-
350H Steel
-
Color:
-
Customised
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
High Grade No.45 Forged
-
After Warranty Service:
-
Video Technical Support
-
Application:
-
Industiral Building
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
30 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hechuang
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5.2*0.8*0.6m
-
Weight:
-
5600 kg
-
Product name:
-
roll forming machine manufacture omega C profile drywall machine
-
Usage:
-
Steel Construction
-
Raw material:
-
PPGI
-
Roller material:
-
45#steel Chrome Plated
-
Main frame:
-
350H Steel
-
Color:
-
Customised
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
High Grade No.45 Forged
-
After Warranty Service:
-
Video Technical Support
-
Application:
-
Industiral Building
Products Description

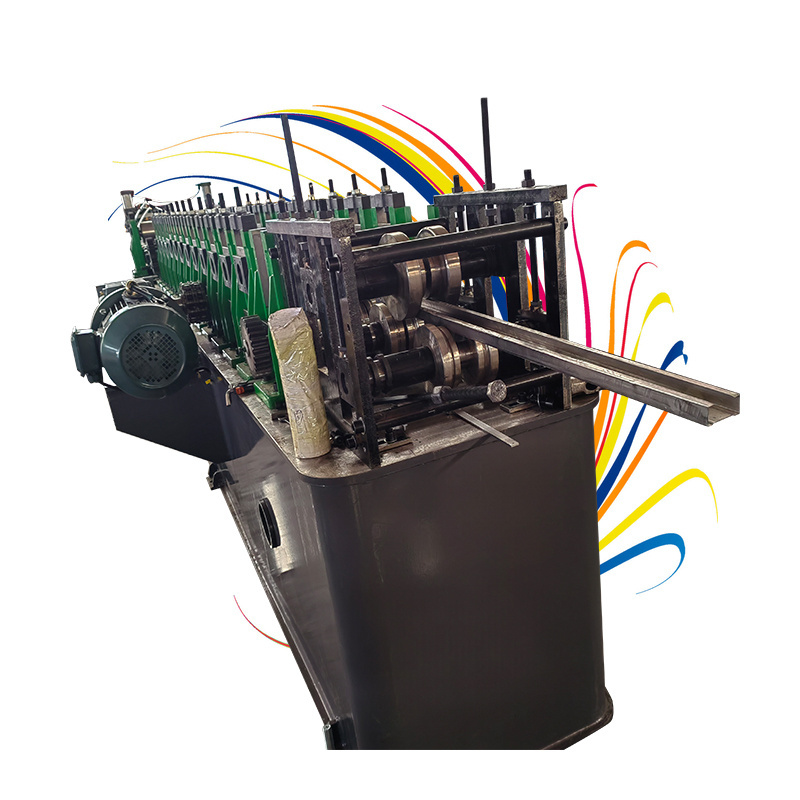

steel profile roll forming machine manufacture omega C profile drywall machine
Working Flow
Decoiling-Sheet guiding-punching-Roll forming-Measure length-Cutting-Panels to product stand
Specificatioon
Roll Forming Machine Components:
|
No.
|
Name
|
Qty
|
|
1
|
De-coiler
|
1set
|
|
2
|
Roll Forming Machine
|
1set
|
|
3
|
Hydraulic Cutting Devic
|
1set
|
|
4
|
PLC Control Box
|
1set
|
|
5
|
Output table
|
1set
|
|
6
|
Punching machine
|
1 Set
|
Product Description:
|
Suitable Material
|
HRB60 or equivalent(PPGI/PPGL/GI/GL)
|
|
Materials thickness
|
0.3mm-0.8mm
|
|
Dimension
|
About 7.2*1.3*1.1m(L*W*H) , as per the drawing
|
|
Cutting
|
Automatically stop and cutting when it comes to the set
length. |
|
Roller Material
|
High grade 45# steel. Hard chrome plating, 0.05mm.
|
|
Main Frame
|
350# steel. More stable and no shaking.
|
|
Middle Plate
|
20mm. We use thicker plates to ensure stability
of our products. |
|
Forming Steps
|
11-20 steps, according to the drawing.
|
|
Shaft Material
|
Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
Cutting
Blade Material |
Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting. |
|
Suitable Power
|
380V, 50 Hz, 3 phase or according to your need.
|
|
Screen
|
7 inch touch screen, easy to operate.Brand Delta or based on your need
|
|
PLC
|
Delta Brand (Or Panasonic /Siemens )
Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
Length
Measurement Device |
Omron, made in Japan.
It features with high accuracy and stability. |
Product Paramenters
Manual decoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:5T Uncoiling width:1300mm Inner diameter: 450-550mm
Passive uncoil pulled by roll forming system
Loading capacity:5T Uncoiling width:1300mm Inner diameter: 450-550mm
Feeding device
This type feed table can adjust the input width by handwheel
Hydraulic cutting system
Hydraulic guide column shearing, double oil cylinders
PLC control box
It adopts cantilever split control cabinet, touch screen and full Delta control system.
Rollers
Oil pump
Product packaging
Our company
Cangzhou Hechuang Machinery Equipment Co., Ltd. is an advanced equipment manufacturer based in the
field of cold bending forming technology. With an integrated business model of independent research and development, production,sales, and service, we provide professional cold bending forming solutions to global customers. Annually, Our products are known for their stable quality and high cost-performance ratio, thanks to our team of professional designers and engineers. Their efforts ensure the superior quality and reliable performance of our equipment, with each machine meeting the standards of excellent design and superior performance.
Our main products include a variety of tile press machines: Wall/roll tile roll forming machine ,floor deck roll forming machine,Light Steel keel roll forming machine ,Downspout roll forming machine,Gutter roll forming machine,Ridge cap roll forming machine,Solar support roll forming machine C/Z purline roll forming machine ,bending machines, shearing machines, and custom cold bending forming machines, among others.
Our market influence extends globally. our equipment is exported to various countries and regions including Southeast Asia, the Middle East, South America, North America, and Europe, earning widespread praise and accolades from international customers.
field of cold bending forming technology. With an integrated business model of independent research and development, production,sales, and service, we provide professional cold bending forming solutions to global customers. Annually, Our products are known for their stable quality and high cost-performance ratio, thanks to our team of professional designers and engineers. Their efforts ensure the superior quality and reliable performance of our equipment, with each machine meeting the standards of excellent design and superior performance.
Our main products include a variety of tile press machines: Wall/roll tile roll forming machine ,floor deck roll forming machine,Light Steel keel roll forming machine ,Downspout roll forming machine,Gutter roll forming machine,Ridge cap roll forming machine,Solar support roll forming machine C/Z purline roll forming machine ,bending machines, shearing machines, and custom cold bending forming machines, among others.
Our market influence extends globally. our equipment is exported to various countries and regions including Southeast Asia, the Middle East, South America, North America, and Europe, earning widespread praise and accolades from international customers.
Customer Photos
FAQ
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate it before shipping. It only needs 2 hours and you
can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visas, round tickets, hotels, and
food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to
take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine, and product stand. when you get the machine in your factory, you
just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate it before shipping. It only needs 2 hours and you
can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visas, round tickets, hotels, and
food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to
take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine, and product stand. when you get the machine in your factory, you
just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
