Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SWITECH
-
Model Number:
-

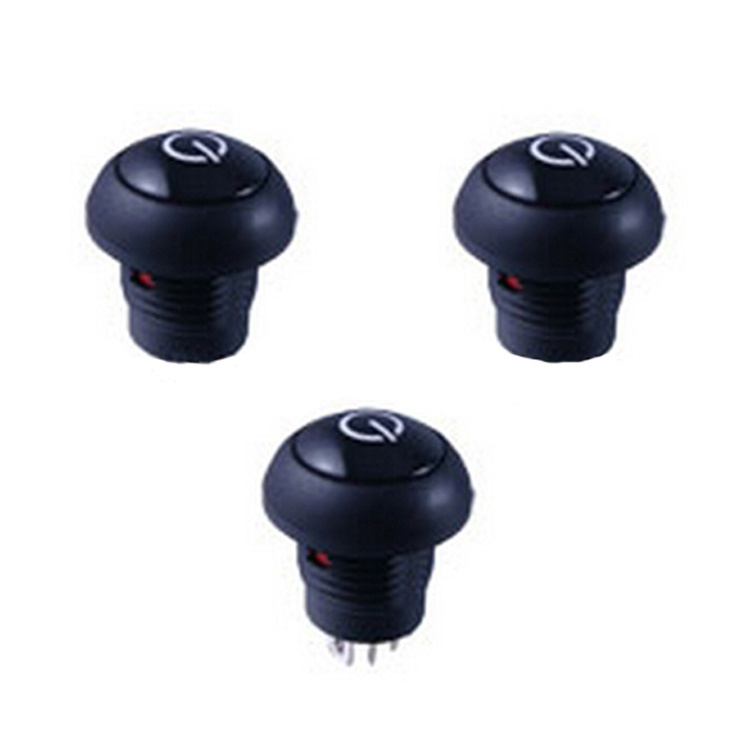

PB12 series
-
switch support:
-
brass steel or tin plate
-
Dielectric Strength:
-
1500VAC 1 min
-
Packing:
-
sealed
-
Contact Resistant:
-
20mΩ intial
-
cap installation force:
-
10lbs
-
Terminal form:
-
Solder Terminal PCB terminal
-
Protection:
-
IP67 IP40
-
Operating Temperature:
-
-30 ℃~+85℃
-
Mechanical life:
-
50000 make-and -break cycles at full load
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
Dependent upon contact material
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
SWITECH
-
Model Number:
-
PB12 series
-
switch support:
-
brass steel or tin plate
-
Dielectric Strength:
-
1500VAC 1 min
-
Packing:
-
sealed
-
Contact Resistant:
-
20mΩ intial
-
cap installation force:
-
10lbs
-
Terminal form:
-
Solder Terminal PCB terminal
-
Protection:
-
IP67 IP40
-
Operating Temperature:
-
-30 ℃~+85℃
-
Mechanical life:
-
50000 make-and -break cycles at full load
-
Certification:
-
CE
Products Description
|
Contact Rating
|
Dependent upon contact material
|
|
|
Mechanical life
|
50000 make-and -break cycles at full load
|
|
|
Contact resistance
|
20m Ω max.initial @2-4 VDC 100mA, for both silver and gold palted contacts
|
|
|
Insulation Resistance
|
1000M Ω min.@seal level.
|
|
|
Operating tenmperature
|
-30 ℃ to +85 ℃
|
|
|
Cap installation force
|
10 lbs,max ,permissible
|
|
|
Material
|
|
|
|
Case & Bushing
|
Glass filled nylon6/6 or nylon 4/6(UL94v-0)
|
|
|
Plunger
|
Glass filled nylon or glass filled polyester(UL 94V-0)
|
|
|
Switch Support
|
Copper alloy or steel, tin palted
|
|
|
Switch Support Retauber
|
Stainles steel
|
|
|
N.O&N.C Contacts
|
Brass, with gold plate over nikel plate
|
|
|
Common contacts & all terminals
|
copper alloy with gold plate over nickel plate
|
|
|
Terminal seal
|
Epoxy
|
|
