Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Everunion
-
Model Number:
-
DDR
-
Depth:
-
800-1200mm
-
Weight Capacity:
-
800-1500kgs/per pallet
-
Width:
-
1200/1900/2300/2700/3300/3600(mm)
-
Height:
-
4500mm-11000mm
-
Thickness:
-
1.5mm,1.8mm and 2.3mm,2.5mm
-
Product name:
-
Good quality heavy duty double deep pallet racking
-
Keywords:
-
Double deep pallet racking
-
Surface treatment:
-
Powder Coating
-
Color:
-
Blue and orange
-
Usage:
-
Warehouse Storage System
-
Certification:
-
CE
-
Application:
-
Goods Storage
-
Packing:
-
Carton
-
Size:
-
Customer Size
Quick Details
-
Type:
-
double-deep pallet rack
-
Material:
-
Q235b steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Everunion
-
Model Number:
-
DDR
-
Depth:
-
800-1200mm
-
Weight Capacity:
-
800-1500kgs/per pallet
-
Width:
-
1200/1900/2300/2700/3300/3600(mm)
-
Height:
-
4500mm-11000mm
-
Thickness:
-
1.5mm,1.8mm and 2.3mm,2.5mm
-
Product name:
-
Good quality heavy duty double deep pallet racking
-
Keywords:
-
Double deep pallet racking
-
Surface treatment:
-
Powder Coating
-
Color:
-
Blue and orange
-
Usage:
-
Warehouse Storage System
-
Certification:
-
CE
-
Application:
-
Goods Storage
-
Packing:
-
Carton
-
Size:
-
Customer Size

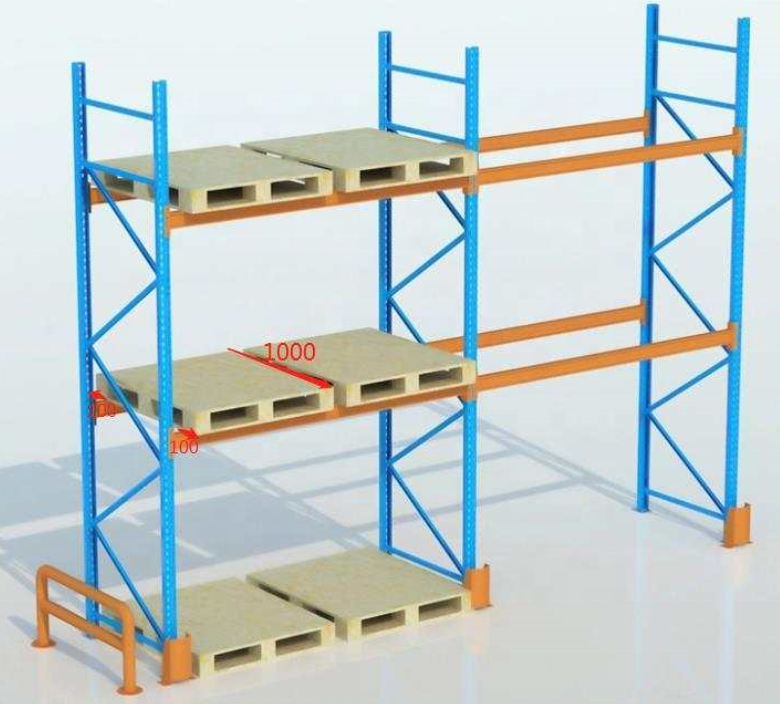

Pallet racking system heavy duty double deep rack for warehouse storage
1.double-deep pallet rack is constructed to store two pallets deep or four pallets deep in double entry rack .
2.The system requires the use of a special reach truck with either dual pantograph or sliding fork attachment.
3.It offers an increase of storage density,ideal for storing homegeneous products
4.This system can give you greater utilization of your warehouse space use due to the density of the loads stored and narrow aisle design of the system.
5.A double deep system is significantly less costly than conventional pallet racks .
6.Double-deep syatem reduce the aisle to rack ratio but also reduce pallet selectivity ,increasing storage density.
7.50% immediate pallet access provides reasonable stock rotation on a FILO(FIRST IN LAST OUT) basis and makes good use of all available locationss.
specifications
| specification of racks | length | 1200/1900/2300/2700/3300/3600(mm) | |
| depth | 800-1200(mm) | ||
| height | 2000-13000(mm) | ||
| Upright | 90*70 | ||
| Beam | 80&100&120&140*50 | ||
| thickness | 1.8mm-2.5mm | ||
| capacity/layer | 1-4tons | ||
| remarks | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions | |||
