Quick Details
-
Drilling Speed:
-
12-2500
-
Place of Origin:
-
China
-
Model Number:
-
Z5040C/1
-
Voltage:
-
customization
-
Power (kW):
-
7.5
-
Weight (KG):
-
600 KG
-
Core Components:
-
OTHERS
-
Max. drilling diameter:
-
40
-
Application:
-
Metal processing
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
12 - 2300 r.p.m
-
Drilling Speed:
-
12-2500
-
Place of Origin:
-
China
-
Model Number:
-
Z5040C/1
-
Voltage:
-
customization
-
Power (kW):
-
7.5
-
Weight (KG):
-
600 KG
-
Core Components:
-
OTHERS
-
Max. drilling diameter:
-
40
-
Application:
-
Metal processing
PRODUCT DESCRIPTION

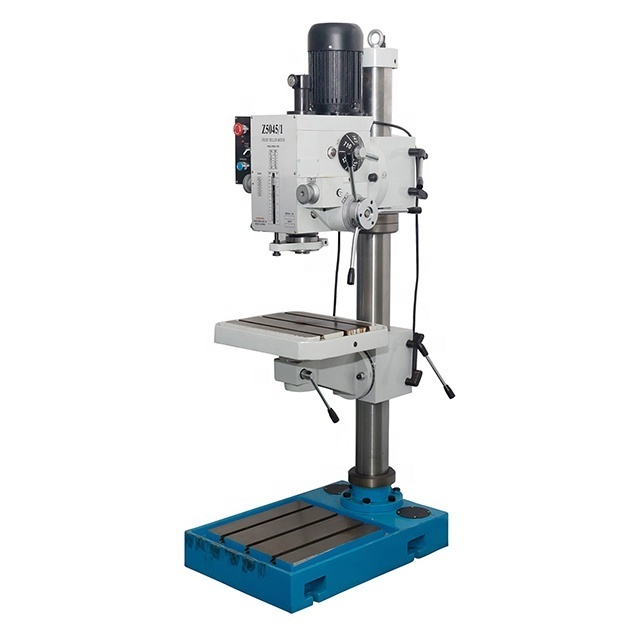

Z5040C/1
Drilling machine
|
Drilling Machine
|
Z5040C/1
|
|
Max. drilling capacity
|
40mm
|
|
Spindle taper
|
M. T. 4
|
|
Spindle travel
|
130mm
|
|
Step of speed
|
6
|
|
Range of spindle speed 50Hz
|
80-1250 r. p. m
|
|
60Hz
|
95-1500 r. p. m
|
|
Step of spindle auto-feeding
|
6
|
|
Range of spindle auto-feeding amount
|
0.06-0.30mm/r
|
|
Min. distance from spindle axis to column
|
290mm
|
|
Max. distance from spindle nose to worktable
|
700mm
|
|
Max. distance from spindle nose to stand table
|
1125mm
|
|
Max. travel of headstock
|
250mm
|
|
Swivel angle of headstock(horizontal)
|
360°
|
|
Max. travel of worktable bracket
|
600mm
|
|
Worktable size of avaliablity
|
730× 210mm
|
|
Swivel angle of table horizontally
|
360 degree
|
|
Table leaned
|
± 45°
|
|
Size of stand worktable of avaliability
|
417× 416mm
|
|
Motor power
|
1.1KW(1.5HP)
|
|
Voltage/Frequency
|
As customer' s requirement
|
|
speed of motor
|
1400 r. p. m
|
|
Cooling pump power
|
0.04KW
|
|
Net weight/Gross weight
|
442kg/492kg
|
|
Packing size
|
1850× 750× 1000mm
|
|
Loading amount
|
18pcs/20" container
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
