Quick Details
-
Panel Dimensions:
-
530*660*70mm
-
Type:
-
folding solar panel 100w
-
VMP:
-
18V
-
Frame::
-
Anodized aluminium alloy
-
Connector::
-
PV Connector
-
Cell grade:
-
A+ grade high efficiency
-
Operating Temperature:
-
-40°c~+90°c
-
Clips:
-
Copper alligator clip
-
Junction box:
-
IP67 Rated Standard Waterproof with bypass diode
-
Protection Corner:
-
High strength waterproof plastics corneer
-
mobile phone charge:
-
Available
Quick Details
-
Brand Name:
-
HETECH
-
Model Number:
-
HT-FM100W-72P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
530*660*70mm
-
Type:
-
folding solar panel 100w
-
VMP:
-
18V
-
Frame::
-
Anodized aluminium alloy
-
Connector::
-
PV Connector
-
Cell grade:
-
A+ grade high efficiency
-
Operating Temperature:
-
-40°c~+90°c
-
Clips:
-
Copper alligator clip
-
Junction box:
-
IP67 Rated Standard Waterproof with bypass diode
-
Protection Corner:
-
High strength waterproof plastics corneer
-
mobile phone charge:
-
Available

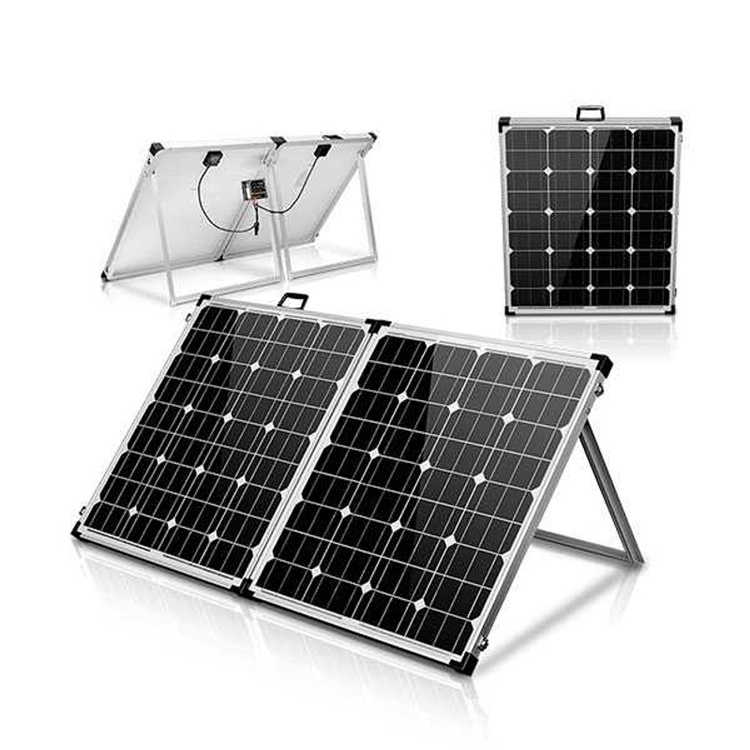

portable solar panel folding solar panel 40w 60w 80w 100w 120w 160w 180w 200w solar panel factory wholesale
Product Description
| Electrical Characteristic: | |
| Module Type | HT-M100W-72P |
| Peak power | 100W 3%Toleracne |
| Optimum Operating Voltage(Vmp) | 18.0V |
| Optimum Operating Current(Imp) | 5.56A |
| Open-Circuit Voltage(Voc) | 21.6V |
| Short-Circuit Current(Isc) | 6.12A |
| Maximum system voltage | DC1000V |
| Warranty |
5 years product defect warranty.
90% in 10 years, 80% of 25 years. |
| Mechanical Characteristics: | |
|---|---|
| Module type | HT-M100W-72P |
| Size | 630*540*60mm |
| Weight | 10kg |
| No. of Cells | 72(8*9) pcs |
| Cell dimension | Mono 156*156mm |
| Front cover | 4.0 mm (0.16 inches) tempered glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP67/IP65 rated |
| Connectors | PV |
| Temperature coefficient: | |
| NOCT cell | 46±2°c |
| Temperature coefficient Voc(%) | +0.04±0.015%/°c |
| Temperature coefficient Pm(%) | -0.3±0.02%/°c |
| Temperature coefficient Im(%) | -0.45±0.05%/°c |
| Temperature coefficient Vm(%) | +0.04%/°c |
| Operating temperatures | -0.32±0.02%/°c |
| Operating temperatures | -40°c~+90°c |
| Surface pressure |
60m/s(200kg /m² ) |
Application
| Application: |
