Custom Design Lenticular Flip Printing 3D Sheet

Custom Design Lenticular Flip Printing 3D Sheet

FOB Reference Price: Get Latest Price

≥2 Pieces

US $58

≥50 Pieces

US $55

≥100 Pieces

US $50

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: UV Stabilized HDPE Sheet

Thickness:: customized, 20mm

Size:: customzied, 1000*400/600mm, 1500*400mm

Colors:: Black, white, blue, red, yellow, etc.

Logo:: Customized Logo Availabled

Usage:: Football Passing, Ball Control and Finishing Drills

Handle size:: 100*45mm

Packing:: 1 pc per carton

Net weight:: 12kg

Feature:: Foldable, easy to storage

Other names:: football soccer rebounder

Quick Details

Processing Service:: Cutting, Moulding

Place of Origin:: Shandong, China

Brand Name:: Qicheng

Model Number:: UV Stabilized HDPE Sheet

Thickness:: customized, 20mm

Size:: customzied, 1000*400/600mm, 1500*400mm

Colors:: Black, white, blue, red, yellow, etc.

Logo:: Customized Logo Availabled

Usage:: Football Passing, Ball Control and Finishing Drills

Handle size:: 100*45mm

Packing:: 1 pc per carton

Net weight:: 12kg

Feature:: Foldable, easy to storage

Other names:: football soccer rebounder

Products Description

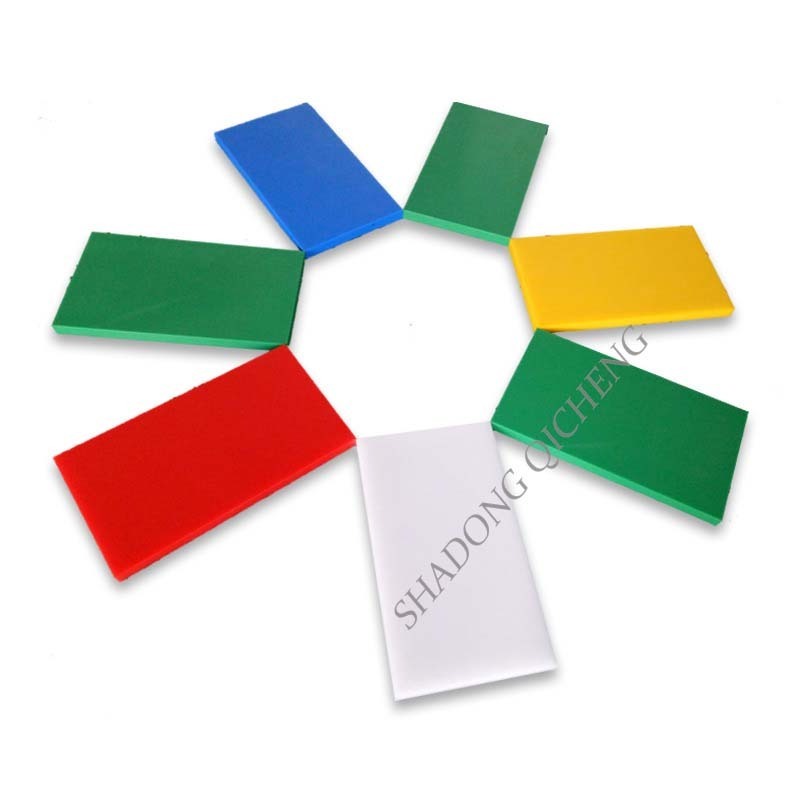

HDPE SHEET We offer excellent sliding properties and abrasion/wear resistance due to its low coefficient of friction. HDPE Sheet, also named High Density Polyethylene sheet is very tough and impact resistant, even at

low temprature, I t is lightweight, easy to weld but difficult to bond.

Two different processing way: Compression Molding or Extrusion molding according to different thickness and load capacity.

Features

Features:

--6 times more wear resistant than steel -

-Anti-Weather & Aging

--Self-lubricating, low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise
-- absorption, Vibration-absorption
--Temperature : -2600C ~ +800C; no become fragile even under -1800C
--High tensile Strength
--Non-Toxic and smell
--Flame Retardant; Lower water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion

--Light weight and easier to handle and fix

--Cost efficient; Resulting in low energy consumption

--Does not rot, split or crack; 100% recyclable

--Great liner material for industrial material handling applications

Product Paramenters

Item	Units	ASTM test	HDPE	UHMW-PE
Tensile strength	PSI	D-638	4000	3100
Flexural modulus	PSI	D-790	200000	110000
Notched impact	Ft-lbs/in of notch	D-256	1.3	18
Heat deflection temperature at 66psi	℉	D-648	172	-
Maximum continuous service temperature in air	℉		-	180
Water absorotion	%	D-570	0.10	slight
Coeff icient of liner thermal expansion	In/in℉10-5	D-696	7	11.1

Thickness:0.7mm - 25mm Cleat Height: 5 -7mm Texture type on surface: can be customized as your demand Loading Capacity: 50-300 tons according to different thickness and materials.

Property	Standard	Unit	UHMWPE
Physical Properties
Density	GB1033-86	g/cm3	0.93
Water Absorption	GB1034-86	%	< 0.01
Max Working Temperature	-	°C	90
Minimum Working Temperature	-	°C	-269
Mechanical Properties	-	-	-
Tensile Strength	GB1040-79	MPa	21
Ultimate Tensile Strength	GB1040-79	MPa	38
Elongation	GB1040-79	%	12
Break Elongation	GB1040-79	%	340
E-Modulus	GB1040-79	MPa	820
Notched Impact Strength	GB1843-80	KJ/m2	ok
Bending Strength	GB9341-88	MPa	26
Bending E-Modulus	GB9341--88	MPa	760
Compression Strength (deformation 10%)	GB1041-79	MPa	27
Compression E-Modulus	GB1041-79	MPa	550
Shear Strength	GB1041-79	MPa	33
Hadrness	GB2411-80	Shore D	65
Static Coefficient of Friction	GB10006-88	-	0.07-0.15
Dynamic Coefficient Friction	GB10006-88	-	0.07-0.11
Thermal Properties	-	-	-
Coefficient of Linear Expansion	GB1036-89	°C-1	1.5×10-4
Coefficient of Heat Conductivity ( 23 °C )	GB3399-82	Cal/cm sec °C	8.5×10-4
Special Heat ( 23 °C)	GB3399-82	Cal/g°C	0.44
Electrical Properties	-	-	-
Volume Resistivity	GB1410-78	Ohm cm	>1015
Surface Resistivity	GB1410-78	Ohm	>1015
Dielectric Constant ( 1MHZ )	GB1409-78	-	3
Dielectric Strength	GB1408-78	Kv/mm	70
