Quick Details
-
Brand Name:
-
INNOVACERA
-
Color:
-
Grey
-
Shape:
-
Customized Designs
-
Size:
-
Size Customized
-
Density:
-
2.1-2.19g/cm3
-
Max Working Temperature:
-
2200℃
-
Flexural strength:
-
243Mpa
Quick Details
-
Material:
-
Boron Nitride Ceramic
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
INAS-266
-
Brand Name:
-
INNOVACERA
-
Color:
-
Grey
-
Shape:
-
Customized Designs
-
Size:
-
Size Customized
-
Density:
-
2.1-2.19g/cm3
-
Max Working Temperature:
-
2200℃
-
Flexural strength:
-
243Mpa

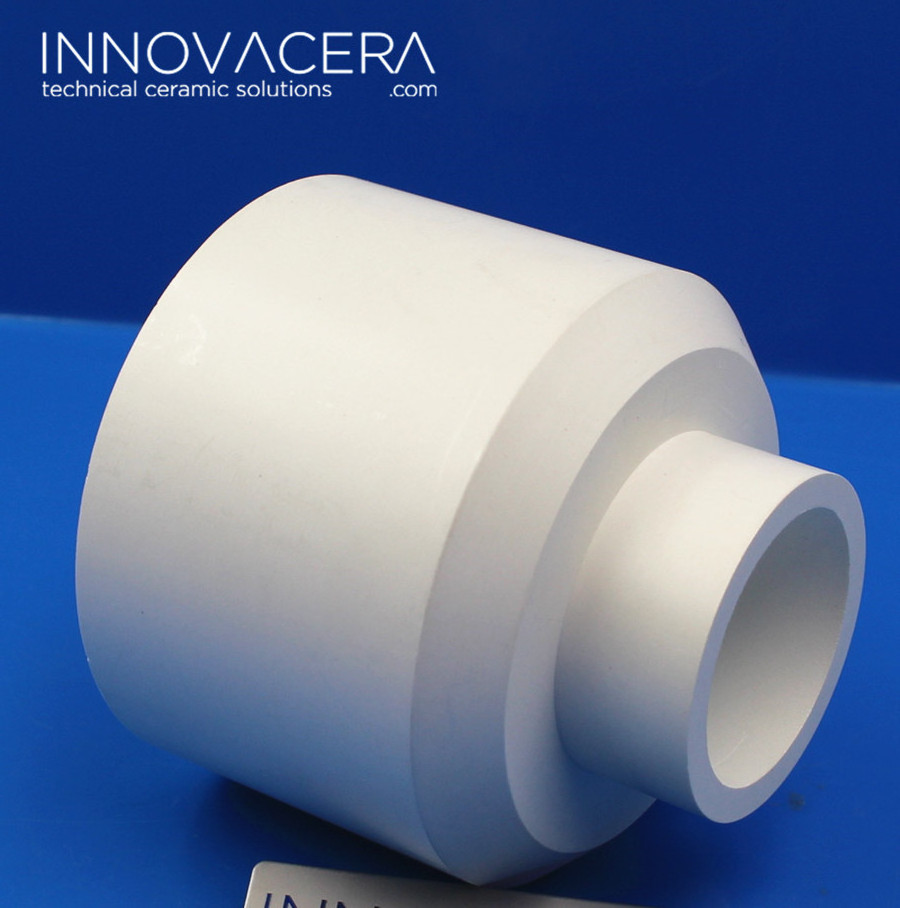

HPBN is made using a hot pressing process from densification of powder to a smooth white solid. It is hexagonal and a unique combination of chemical, electrical, mechanical and thermal properties, making it suitable for a wide range of high performance industrial applications.
Typical Material Performance
- High thermal conductivity
- Excellent thermal shock resistance
- Low thermal expansion
- Exceptional heat resistance
- Good Chemical Inertness
- High electrical resistance
- Low dielectric constant and loss tangent
- High volume resistivity
- Excellent machinability
We've got 5 grades of boron nitrides are involved in INNOVA-BN® product series, which are BN99 , CABN , ALBN , ZSBN , ZABN , SBN .
It's the chart of material properties below.
|
Grad e |
BN99 | CABN | ALBN | ZSBN | ZABN | SBN |
| Compositions | BN>98.5% | BN>97.5% | AlN+BN | ZrO2+BN | ZrO2+AlN+BN | SiC+BN |
| Binder | B 2 O 3 | CaB 2 O 3 | AlBO 3 | B 2 O 3 | AlBO 3 | AlBO 3 |
| Density(g/cm3) | 1.95~2.0 | 2.0~2.1 | 2.6 | 2.9~3.0 | 3.2~3.3 | 2.4~2.6 |
| 25℃ Volume Resistivity(Ω·cm) | >10 14 | >10 13 | >10 14 | >10 12 | >10 12 | >10 12 |
Max. Service Temp. (℃)
|
900 2400 2200 |
900 2400 2200 |
900
1900 |
1000
1800 |
900
1800 |
900
1700 |
|
Three-point
Flexural Strength(Mpa) |
30 | 70 | 130 | 120 | 130 | 91 |
| Compressive Strength(Mpa) | 100 | 100 | 250 | 280 | 300 | 300 |
|
Coefficient of Thermal Expansion
25~1000℃(10-6 /K) |
1.5 | 2.0 | 4.5 | 5.0 | 5.0 | 4.0 |
| Thermal Conductivity(W/mK) | 15 | 20 | 50 | 20 | 40 |
40 |
Q1: How to send an inquiry
You can send your drawing with technology requiremens,and infrom your purchase quantity .If you can,pls inform what is your part used in .We will confirm what is the most suitable materials and quote our best price to you in 24 hour
Q2:Can you provide the free samples ?
Yes,we can provide the sample free of charge if we have the stock product as customer's required,but the courier fee be collected.
Q3:How long will it take for you to send me a quote?
This depends on the complexity of your requirements. For simple items such as plates and rods, we can generally supply a quotation within 24 hours.
Q4:What's the delivery time?
For the standard products, like ceramic substrate and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30-45 working days.
