Quick Details
-
Voltage:
-
380v/220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PONSE
-
Dimension(L*W*H):
-
6200*6200*2600mm
-
Weight:
-
4000 KG
-
Effective working width:
-
1600mm
-
Heating roller size:
-
1800*1500mm
-
Normal working speed:
-
20-45m/min
-
Size (L*W*H):
-
6200*6200*2600mm
-
Glue type:
-
water or strong glue
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Marketing Type:
-
New Product 2022
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Wood
-
Driven Type:
-
Electric
-
Voltage:
-
380v/220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PONSE
-
Dimension(L*W*H):
-
6200*6200*2600mm
-
Weight:
-
4000 KG
-
Effective working width:
-
1600mm
-
Heating roller size:
-
1800*1500mm
-
Normal working speed:
-
20-45m/min
-
Size (L*W*H):
-
6200*6200*2600mm
-
Glue type:
-
water or strong glue
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Marketing Type:
-
New Product 2022

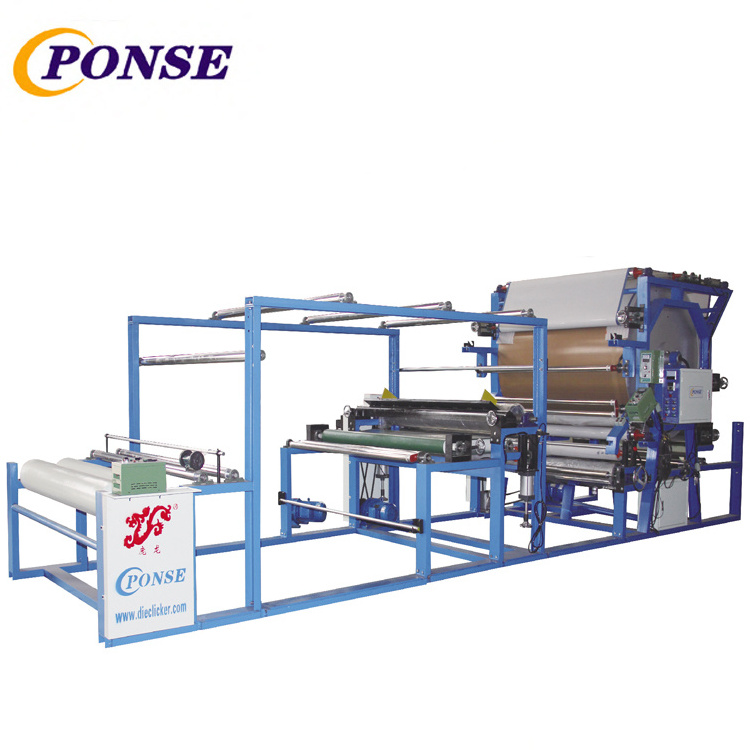

Water Glue and Strong GLue Lamination Machine
Features :
1.Shoe making materials, such as EVA with fabric, foam with fabric, fabric with leather, fabric
with fabric, fabric with PE film, etc.
2.Cloth-making materials, handbag, such as fabric with waterproof film, fabric with fabric,
fabric with fur, etc.
3. Pressed by heat-proof ventilate mesh to add adhering strength.
4. Improve the product quality greatly to save you cost.
5. For clamp roller, both hand wheel adjustment and the pneumatic control are available.
6.Surface of heating roller is coated with Teflon in order to efficacious prevent the hot melt adhesive against sticking on the surface of roller and carbonization.
7.It equipped with speed regulation system VVVF control, and automatic temperature control system; it also can measure the length, easy to control production output and product quality.
8.Spreading width can be momentarily designed according to the clients requirement to control the cementing amount, diameter of heating roller is optional.
9.Adjust the speed of heating roller as per requirements. Both colloid trough and heating roller can control temperature independently.
10. New design structure, reliable technology, easy operation, low breakdown rate, and long service time.
11. Customized manufacturing is available.
Technical Specification
| Effective Working Width | 1600mm |
| Heating Roller Size | 1800*1500mm(W*H) |
| Normal Working Speed | 20-45M/min |
| Heating Power | 55KW |
| Size(L×W×H)(mm) | 6200×6200×2600mm |
| Workers Quantity | 3,4 |
|
Voltage |
380V/220V |
| Glue | Water Based Glue/Strong Glue |
| Automatic grade | Semi-Automatic |
|
Driven type |
Electric |
| Certification | CE |
| N.W. | 4000kg |
| Warranty | 3Years |
