Quick Details
-
Color:
-
Full color
-
Panel Size:
-
160*160mm, 160*160mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH10
-
Brightness:
-
6000 nits, 6000 nits
-
pixel density:
-
10000 pixels/sqm, 10000 pixels/sqm
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP65, IP65
-
HS Code:
-
8531200000
-
Resolution:
-
16*16, 16*16 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-

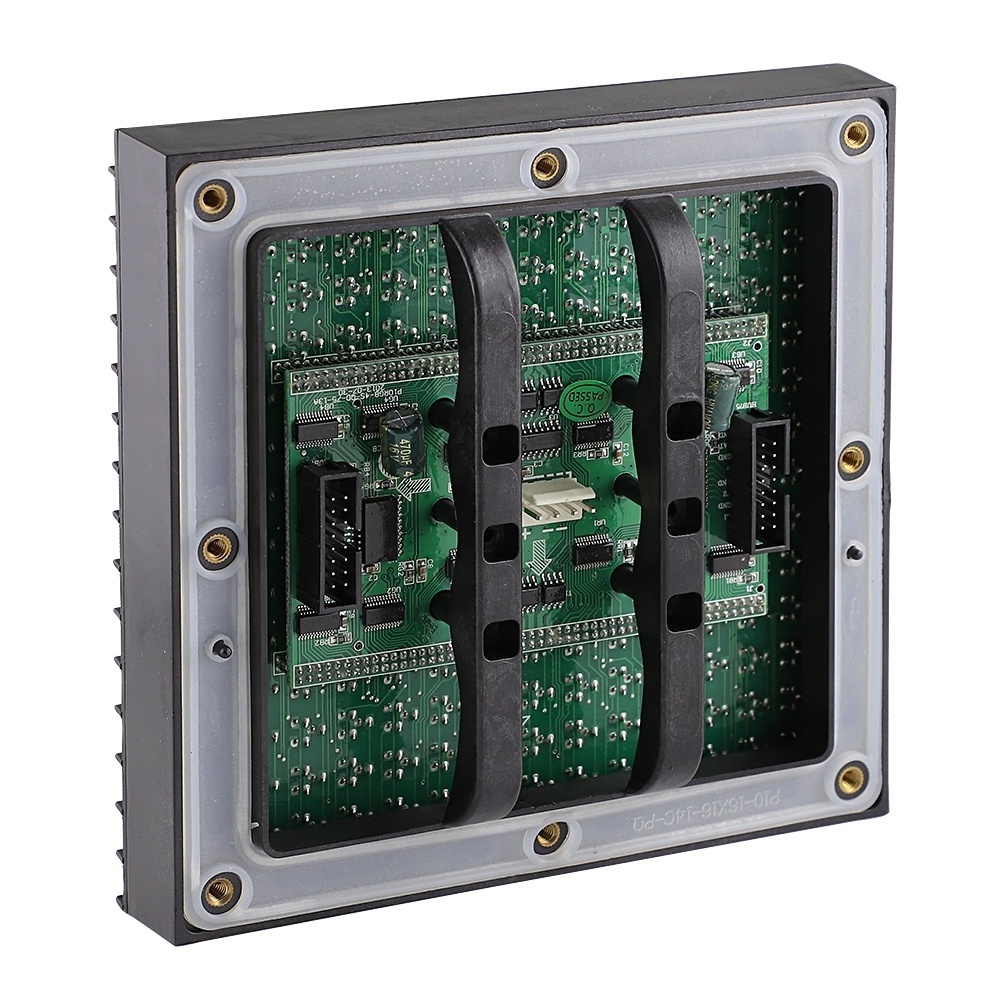

P10 DIP led module
-
Refresh rate:
-
1920Hz/3840Hz
-
LED type:
-
DIP346
-
Size:
-
160*160mm
-
Scan mode:
-
1/4 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LED
-
Brand Name:
-
Chipstar
-
Color:
-
Full color
-
Panel Size:
-
160*160mm, 160*160mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH10
-
Brightness:
-
6000 nits, 6000 nits
-
pixel density:
-
10000 pixels/sqm, 10000 pixels/sqm
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP65, IP65
-
HS Code:
-
8531200000
-
Resolution:
-
16*16, 16*16 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-
P10 DIP led module
-
Refresh rate:
-
1920Hz/3840Hz
-
LED type:
-
DIP346
-
Size:
-
160*160mm
-
Scan mode:
-
1/4 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Product Description
High-quality DIP full-color outdoor LED display modules are equipped with data power cables and 2 Years Warranty, AllOutdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance
We choose high-quality LED chips for outdoor LED display modules. Furthermore, high brightness and
IP65 waterproof protection can be provided.
IP65 waterproof protection can be provided.
To achieve the best visual performance of outdoor LED display, we use the best driving IC such as MBI5153,MBI5124,ICN2153,ICN2038S
with high refresh rate and high grey level with the latest technologies.
with high refresh rate and high grey level with the latest technologies.
The display features a wide viewing angle of 120° horizontal and 120° in vertical. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
High Brightness & High Resolution
High brightness is very important for LED display’s outdoor applications. especially in those cases where facing direct sunshine.
The brightness of outdoor LED display can reach 5000nits or more. With the design of high brightness, high resolution, and low power consumption. customers could rest assure the screen outdoor use.
The brightness of outdoor LED display can reach 5000nits or more. With the design of high brightness, high resolution, and low power consumption. customers could rest assure the screen outdoor use.
Installation Instructions
Application Scenarios
Led screen for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate.Hotel, Stage rental, KTV、Large market、Playground...
Specification
|
Module Number
|
PH10
|
|
Pixel Pitch
|
10mm
|
|
Physical Density
|
10000 pixels/m2
|
|
Led Arrangement
|
DIP346
|
|
Module Resolution
|
16*16 pixels
|
|
Module Dimensions
|
160*160mm
|
|
Cabinet Resolution
|
160*160 pixels
|
|
Cabinet Dimensions
|
960*960 mm
|
|
Cabinet Weight
|
45kg
|
|
Brightness
|
6000 nits
|
|
Max Power Consumption
|
732w/panel
|
|
Ave Power Consumption
|
244w/panel
|
|
Viewing Angle
|
160°(W) 160°(H)
|
|
Operating Power source
|
110-240V AC 50-60Hz
|
|
Operating Temperature
|
-20℃～+50℃
|
|
Refresh Rate
|
1920Hz
|
|
IP Rating
|
IP65
|
|
Signal Input Source
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
|
Certificate
|
ETL, FCC, CCC, RoHS,CE
|
Project Cases
Packing & Delivery
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing Shipping Method:
By Express (DHL/FEDEX/UPS etc) door to door
By ocean (cheap method) to sea port
By air to airport Pls inform airport name and sea port name
if you want we check the shipping cost for you!
By Express (DHL/FEDEX/UPS etc) door to door
By ocean (cheap method) to sea port
By air to airport Pls inform airport name and sea port name
if you want we check the shipping cost for you!
