Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
haoday
-
Model Number:
-
GT03D/A
-
Dimentions::
-
91.5x57x23(mm)
-
Weight::
-
100g
-
Box size::
-
137x89x70(mm)
Quick Details
-
Screen Size:
-
no screen
-
Function:
-
personal/vehicle gps tracker
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
haoday
-
Model Number:
-
GT03D/A
-
Dimentions::
-
91.5x57x23(mm)
-
Weight::
-
100g
-
Box size::
-
137x89x70(mm)
Concox Original GPS vehicle tracker GT03D/A,GPS and LBS locating Voice monitoring

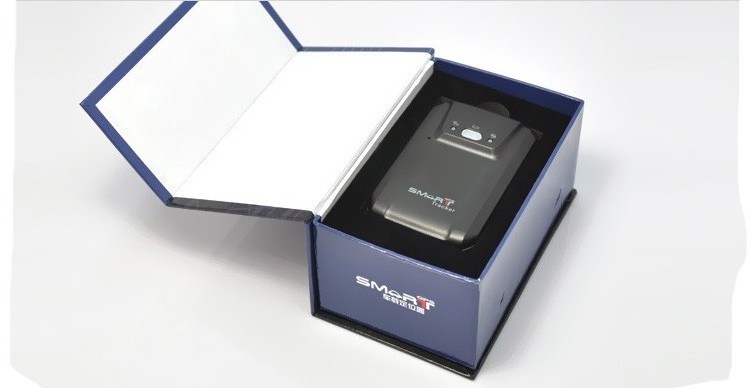

Appearance
Features:
GSM: 850/900/1800/1900Mhz
GPRS: Class12,TCP/IP build in GSM Module
GPS Module: SiRF Star III
Channels: 20
Tracking sensitivity: - 159dBm
Acquisition sensitivity: - 144dBm
Locating time cost: Hot start:<2sec(Open Sky)
Warm start:<15 sec
Cold start:<38 sec(Open Sky)
Antenna: GSM antenna GPS high sensitivity omni antenna
LED indicator: Three LED indicators:GPS-blue GSM-green,Power-red
LED status (non-sleep mode)
1.Red LED (Power/working status)
|
LED Status |
Indication |
|
Flash quickly (interval 0.1S) |
Low battery |
|
Flash slowly (interval 2s) |
Full charge/Working normally |
|
Flash slowly (Flash 0.1s after every 2s) |
Working normally |
|
Bright |
Charging |
|
Dark |
Out of battery / Troubleshot |
2.Blue LED(GPS signal status)
|
LED Status |
Indication |
|
Flash quickly (interval 0.1s) |
Searching GPS signal |
|
Flash slowly (Flash 0.1s after every 2s) |
GPS signal has been acquired successfully |
|
Dark |
GPS stops working |
3.Green LED (GSM signal status)
|
LED Status |
Indication |
|
Flash quickly (interval 0.1s) |
Receive GSM signal normally |
|
Flash slowly (flash 0.1s after every 2s) |
GPRS online |
|
Bright |
Incoming/outgoing calls |
|
Dark |
No GSM signal or no SIM card installed |
Device installation
The device has a strong magnet in rear cover which could attach to any mental surface.
The recommended installation position is as follows;
1) Below the front windshield with the device front up and make sure there are no sunshade mask and other anti-GPRS reception material on it
(2) On the bottom of a car such as the side place below door. Do not put it too far inside, otherwise it can not receive GPS signal.
Note:
1. Device should be in the place with good GPS reception.
2. Do not put the device in some place where may get rusty easily.
3. Do not put the device in some place with extremely high temperature, such as around the radiator pipe or exhaust port, for that it may lower the magnetism greatly.
4. To place the device under the car, please make sure GPS is located first.
Functions
1.Anti-theft alarm
2.Geo-fence
3.Low battery alarm
4.Voice monitoring
Any SOS number calls the device and keep ringing for more than 10s, the device will enter voice monitoring status. In this case, caller can monitor the sound around the device.
Note: 1. Caller ID function is needed for voice monitoring.
2. Only SOS numbers can monitor the device.
5.Terminal position query
a.Address information query
b. Google link query
c.Position query via platform
The device will send position information to the platform server timely. The user can check the position on the platform.
The platform website:
www.gpsyeah.com
Please contact your dealer for the login methods and operations.
LBS are a rough locating way. For more accurate information, GPS locating function must be activated. Its positioning accuracy is around 10m.
Note: to realize this function, you need the support of the network operator. And GPRS function should be activated for the SIM card.
6.Restore Factory Setting
7.Reboot setting
Working Mode
Model1: Locating in a regular time interval mode
Model2: Locating according to vibration mode (default)
Mode3: Locating according to command
Trouble shooting
If there is any problem while operating the terminal, please refer to the following table, or contact your service provider.
|
Common problems |
Causes |
Solution |
|
Bad reception |
Near the tall building or in the basement |
Change to a place with good signal |
|
The terminal can not switch on |
No battery power |
Change a new battery |
|
Can not make voice monitoring |
No preset SOS numbers |
Set SOS numbers |
|
SIM card is without Caller ID function |
Activate the function |
|
|
can not connect to the network |
SIM card is not inserted correctly |
Check the SIM card |
|
The sheet mental of SIM card is dusty |
Wipe it clean |
|
|
Invalid SIM card |
Contact your internet service provider |
|
|
Out of GSM service area |
Move back to the GSM service covered area. |
|
|
weak signal |
Try again in a strong signal area |
|
|
can not charge |
Voltage is out of charging range of the charger |
Change to the proper voltage |
|
Non-standard charger |
Use charger that come with the package |
|
|
Poor contact |
Check if the plug is in |
|
|
Can not check address information |
GPRS function is not activated |
Please contact the SIM card operator to activate GPRS |
|
Can not get the position data |
1.restart the device 2.contact with your distributor |
|
|
It is not a SOS number |
set SOS number |
Accessories
Please check whether these accessories are included. Pictures are for indication and illustration purposes only.
Stardard Accessories:
Wall charger,
charging cable,
battery(2600mAh),
user manual
