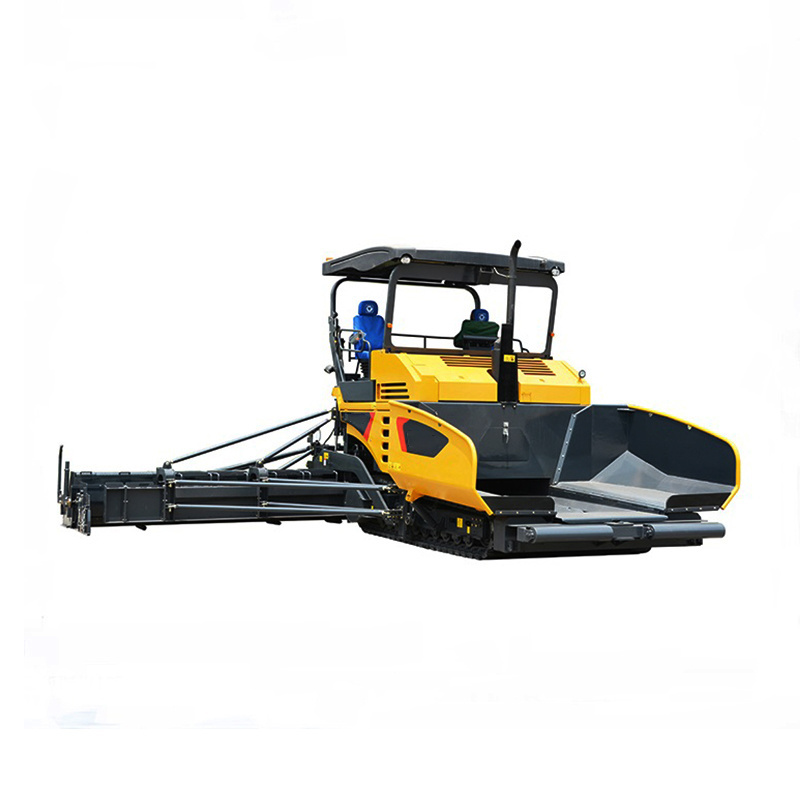

Rp903 9M New Asphalt Paver Concrete Paving Machine Paver Making Machines

Rp903 9M New Asphalt Paver Concrete Paving Machine Paver Making Machines

FOB Reference Price: Get Latest Price

≥1 Sets

US $29700

≥2 Sets

US $29502

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 700 t/h

Power:: 129kW

Place of Origin:: China

Dimension(L*W*H):: 7150*3000*3950 mm

Quick Details

Max. Paving Thickness:: 320mm

Weight:: 23800 kg

Engine Brand:: top brand

Production Capacity:: 700 t/h

Power:: 129kW

Place of Origin:: China

Dimension(L*W*H):: 7150*3000*3950 mm

Product Description

China Brand 6M Paver Width Asphalt Concrete Paver RP603.

RP603 paver can be applied in the construction work of highway asphalt pavement of various grades for paving different types and gradations of asphalt concrete materials. It is especially suitable for urban construction, municipal maintenance and other projects. The machine incorporates full hydraulic drive and micro- computer control, providing more simple, faster operation experience.
Performance Characteristics:

1.turbocharged diesel engine, high power reserve and energy-saving effect.

2.Ensure the continuous efficient and stable work of the power system.

3.Allow real-time monitoring and automatic fault diagnosis of the whole vehicle.

4.The walking control utilizes the technology of constant speed automatic control to avoid the paving speed affected by load.

5.The material level can be controlled stably and the auger speed can be adjusted continuously.

6.Digital automatic leveling technology ensures high evenness, filling the requirements of high-grade road construction.

Specification

Item	Unit	RP903
Basic paving width	m	3
Max paving width	m	9
Max paving thickness	mm	320
Paving speed	m/min	0~18
transport speed	Km/h	0~2.8
feed capacity	t/h	700
Hopper capacity	t	14
Gradient ability	%	20
Smoothness	mm/3m	≤1.5
slope leveling tolerance	%	±0.02
Engine type	/	BF6M1013ECP
Rated output	Kw/rpm	150/2000
Fuel tank	L	300
Generator output	Kw	30
Total weight	t	24.5~29.0
dimensiont	mm	715030003950
