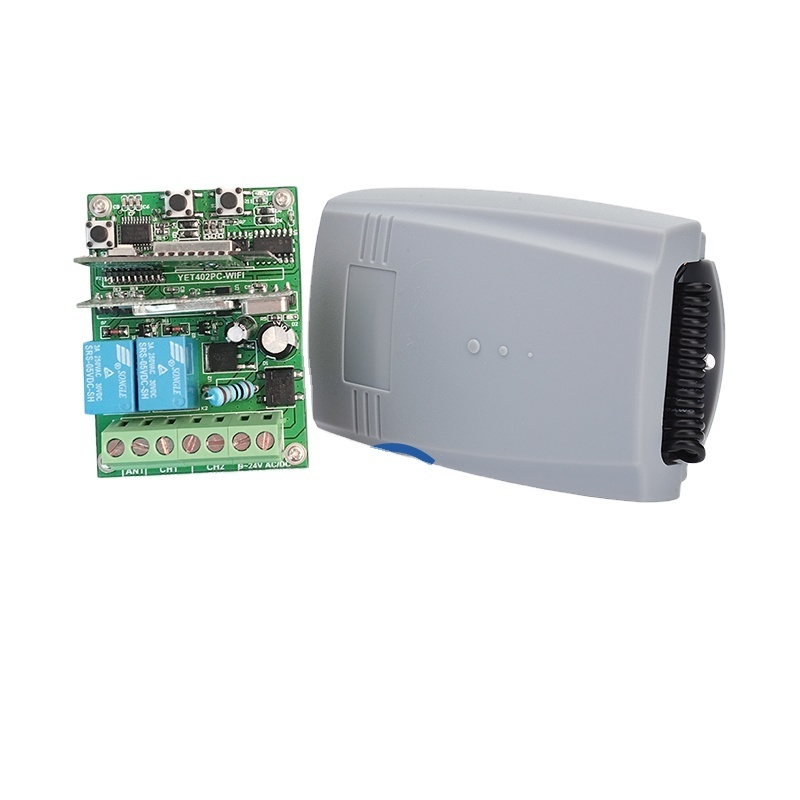

Safemate long range 2-channel Smart home Controller wireless receiver switch 12-24V garage door opener remote controller

Safemate long range 2-channel Smart home Controller wireless receiver switch 12-24V garage door opener remote controller

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8.2

≥2 Pieces

US $8

≥5 Pieces

US $7.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel, Apartment, Office Building, School, Warehouse, Workshop, Park, Courtyard

Place of Origin:: Guangdong, China

Brand Name:: YET

Model Number:: 402WFR, YET402PC-WFR

Product name:: smart home wifi and RF receiver module

certificates:: CE & Rohs

working volt:: AC.DC 12-24V

contact current:: Maximum 10A

working frequency:: 315mhz/433.92mhz optional

dimension:: 100mm*80mm*27.5mm

operating temperature:: -40℃-+80℃

Quick Details

Warranty:: 1 Year

After-sale Service:: Return and Replacement

Project Solution Capability:: Others

Application:: Hotel, Apartment, Office Building, School, Warehouse, Workshop, Park, Courtyard

Place of Origin:: Guangdong, China

Brand Name:: YET

Model Number:: 402WFR, YET402PC-WFR

Product name:: smart home wifi and RF receiver module

certificates:: CE & Rohs

working volt:: AC.DC 12-24V

contact current:: Maximum 10A

working frequency:: 315mhz/433.92mhz optional

dimension:: 100mm*80mm*27.5mm

operating temperature:: -40℃-+80℃

Product Description

Product Name	Safemate universal 2-channel WIFI receiver Controller wireless remote receiver 12-24V Smart home remote controller
Material	ABS
Function	supports mobile phone and wireless remote control to turn ON/OFF
Package	white box

Product performance description
产品性能介绍说明

1.Supporting Wi-Fi internet or extranet connection: It can be used as a single product or networking [Multi-product] to be
controlled.
2.Supporting Smart Link network technology: Network configuration is simple and convenient
3.Support Radio frequency 433.92mhz & learning code/rolling code
4.With high security, large memory, stable performance, low power consumption
5.Suitable for Single-phase ac asynchronous motor

Details Images

Features:
1. AC.DC 12 - 24v optional
2. popular appearance design in the world
3. Interlocking,latching,momentay,3 way latching and 3 way momentary optional
4. Working with learning code , fixed code
5. With Super-heterodyne receiver module,sensitivity:-105dB

Product Usage

- Product usage introduction

产品使用方式介绍

Network Access:

1. download the APP and install it

2. register an account and login on

3. Click “Add Device” ->“enter WIFI password and confirm” (Please press the network
access button of the WIFI module three times quickly and see the module indicator light
flash) ->Finish

4. The more detailed description could be found in the APP user manual

Application download

产品APP下载

available for Android and IOS system

Related Products

Packing&Shipping

each packed with neutral white box,500 pcs per master carton

each Weight=90g
