Quick Details
-
Voltage:
-
110V/220V/380V/415V/460V
-
Dimension(L*W*H):
-
According to specific model
-
Weight:
-
KG
-
Material:
-
Carbon Steel, Stainless Steel 304/316L
-
Function:
-
Screening, separation, sorting, sieving, grading
-
Layer(s):
-
1-5 Layers
-
Screen Mesh:
-
2-500 Mesh
-
Diamater size range:
-
400~2000mm or customized
-
Customized:
-
Acceptable
-
Capacity:
-
100Kg-10Tons/hour
-
Cleaning system:
-
Bouncing Ball,Ultrasonic System
-
Motor:
-
Vertical Vibrating Motor
-
Product Keywords:
-
Vibration Screen/Vibrating Sieve Shaker Separator Sieving Machine
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
EVERSUN
-
Voltage:
-
110V/220V/380V/415V/460V
-
Dimension(L*W*H):
-
According to specific model
-
Weight:
-
KG
-
Material:
-
Carbon Steel, Stainless Steel 304/316L
-
Function:
-
Screening, separation, sorting, sieving, grading
-
Layer(s):
-
1-5 Layers
-
Screen Mesh:
-
2-500 Mesh
-
Diamater size range:
-
400~2000mm or customized
-
Customized:
-
Acceptable
-
Capacity:
-
100Kg-10Tons/hour
-
Cleaning system:
-
Bouncing Ball,Ultrasonic System
-
Motor:
-
Vertical Vibrating Motor
-
Product Keywords:
-
Vibration Screen/Vibrating Sieve Shaker Separator Sieving Machine

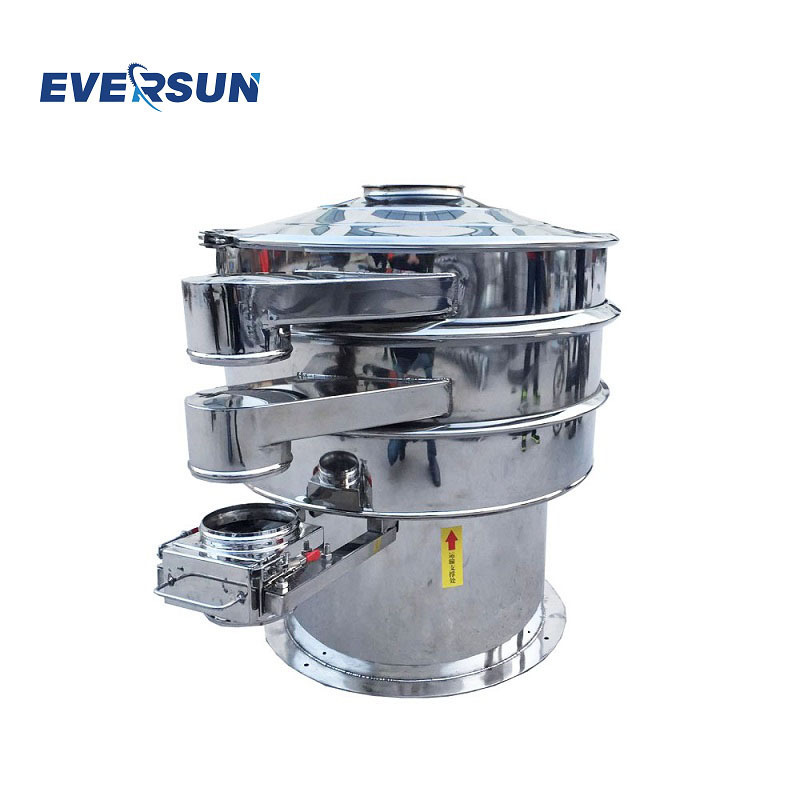

Circular Vibration Screen/Vibrating Sieve Shaker Separator Sieving Machine
YZS series vibrating screen is one of precised powder sieve. With low noise and high efficiency, the filtering effect can be realized quickly in three to five minutes. Used to filter particles and powders.
Custom service: All EVERSUN vibrating sieving machine are available in a variety of models to suit all industries and are suitable for all production lines. EVERSUN can also provide customized machines and solutions for all clients based on their requirements.
Product parameters:
| Model | Power(kw) | Mesh size | Sieve effective diameter(mm) | Layer(s) | Dimension of machine(mm) | ||
| Length | Width | Height | |||||
| YZS-400 | 0.18 | 2-500 | 355 | 1~3S | 580 | 580 | 560-760 |
| YZS-600 | 0.55 | 2-500 | 555 | 800 | 800 | 680-880 | |
| YZS-800 | 0.75 | 2-500 | 755 | 900 | 900 | 780-1080 | |
| YZS-1000 | 1.1 | 2-500 | 925 | 1160 | 1160 | 880-1180 | |
| YZS-1200 | 1.75 | 2-500 | 1125 | 1360 | 1360 | 980-1360 | |
| YZS-1500 | 2.2 | 2-500 | 1425 | 1850 | 1850 | 1130-1550 | |
| YZS-1800 | 3 | 2-500 | 1725 | 2200 | 2200 | 1360-1680 | |
| YZS-2000 | 3.7 | 2-500 | 1910 | 2340 | 2340 | 1360-1680 | |
