Quick Details
-
Brand Name:
-
GN
-
Model Number:
-
CX-EMFM
-
Experience:
-
More 20 years
-
Exported:
-
More 80 countries
-
Accuracy:
-
0.5%
-
Quality:
-
World-class
-
Price:
-
Competitive
-
Installation:
-
Easy
-
Maintenance:
-
Less and Easy
-
Application:
-
Widely
-
Medium:
-
Water Liquid
-
Product Name:
-
Electromagnetic Flow Meter
-
Certification:
-
ISO,CE
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
YES
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GN
-
Model Number:
-
CX-EMFM
-
Experience:
-
More 20 years
-
Exported:
-
More 80 countries
-
Accuracy:
-
0.5%
-
Quality:
-
World-class
-
Price:
-
Competitive
-
Installation:
-
Easy
-
Maintenance:
-
Less and Easy
-
Application:
-
Widely
-
Medium:
-
Water Liquid
-
Product Name:
-
Electromagnetic Flow Meter
-
Certification:
-
ISO,CE

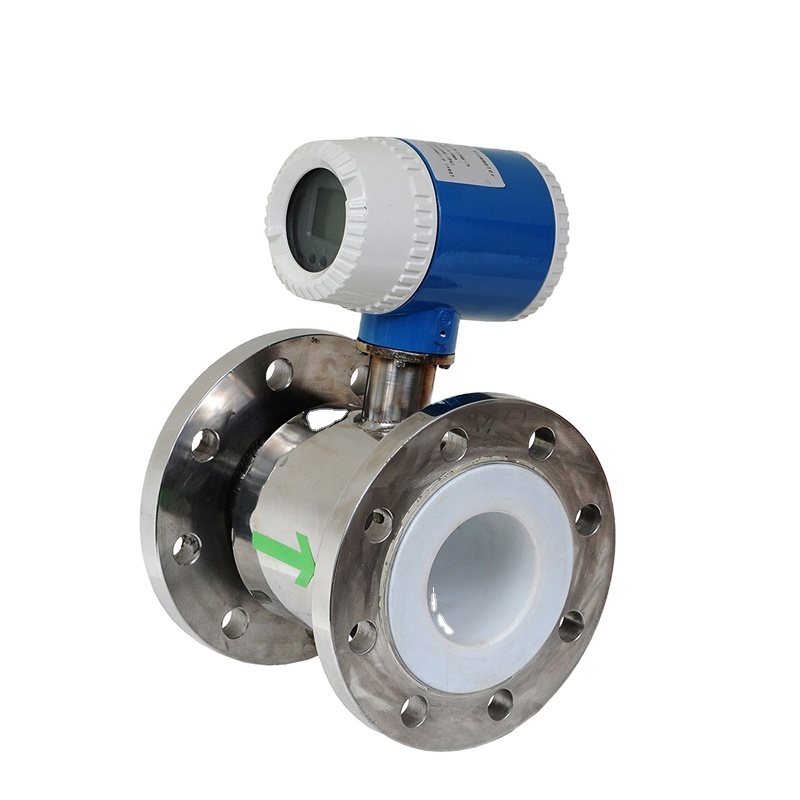

Wireless Digital Mini Micro Electronic Water Flow Meter
A.[Features of Wireless Digital Mini Micro Electronic Water Flow Meter]
Various kinds of meidum
Prefessional for conductivity liquid,such as corrosive liquid;mud and slurry,water ec.
Various kinds of Output
The Wireless Digital Mini Micro Electronic Water Flow Meter with pulse;4~20mA and RS485 output optional
Various kinds of type
The electroWireless Digital Mini Micro Electronic Water Flow Meter have three types,integrated,Split and Plug-in
Various kinds of Lining and Matereial
The Wireless Digital Mini Micro Electronic Water Flow Meter have PTFE,Rubber Lining and cast steel;stainless steel body material
B.[Parameter]
| Production Name | ElectroWireless Digital Mini Micro Electronic Water Flow Meter |
| Medium | water;wastewater;Mud and varioue kinds of conductivity liquid |
| Diameter | DN10~DN2000mm |
| Accuracy | +/-0.5% |
| Temperature | <80℃(rubber); <180℃(PTFE) |
| Pressure | 4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000) |
| Flow speed | 0.3~10m/s |
| Requirement of pipeline | Upstream ≥5DN;Downstream≤3DN |
| Electrode | Stainless steel 316L(standard);Titanium;Tantalum;Hastelloy |
| Lining | PTFE;Rubber |
| Connection | Flange;thrad;clamp on |
| Body material | Cast steel ;stainless steel |
| Power supply | 220V;24V;Battery |
| Output | Pulse;4~20mA;HART;RS485;MODBUS;GPRS |
| Communication | HART;RS485;MODBUS |
| Explosion proof | Customized |
| Protection | IP65 or IP68 |
| Environment | Environment:-20~60℃ |
| Power | <20W |
| Item | The Electrode table |
| Material | The Medium |
| SS316L | For:Living water; wastewater;Corrovise water and Mud,etc; |
| Hastelloy B | For:Non-oxidizing acids at concentrations less than 10%;NAOH Concentrations less than 50% |
| Hastelloy C | For:Mixed Acid and Oxidizing salts |
| Titanium | For: Salt and weak acid ; Not application :hydrochloric acid, nitric acid and other reducing acids |
| Tantalum | For:hydrochloric acid(<40%);Sulfuric acid and Other oxidizing acids |
| Plantinum | For:Almost all acid-base salt solution But not application for aqua regia, except ammonium salt |
| Tungsten carbide | For:Pulp ;sewage ;slurry |
C.[Installation]
1.Installation location
- Avoid the magnetic objects and equipment with stong electromagnetoc field;
- should installa the flow meter at ventilated location;
- Avoid the location wherer ambient temperature above 50℃ and relative humidity above 90%;
- The water flowmeter should be installaed at somewhere spacious;
- The Wireless Digital Mini Micro Electronic Water Flow Meter should be installaed behind pump and the value should installa at downstream.
2.Installa the flow sensor
- Must to ensure the pipeline is fulled and without bubbles to keep the high accuracy;
- The flow direction shoudl keep with sign on the body of flowmeter;
- Ensure the double electrodes keep Horizontal;
- If the medium is mixed by liquid and solid,Pls installa it at vertical to extend the working life of lining;
- If the environment with shocked pls installa the bracket at both front and behind;
- If the medium is pollution liquid,should installa the flow meter at bypass pipe and don't interrupted when you on service;
3.Requirement of Straight pipe
- The straight of pipe at inlet must more than 10×DN,Suggest 15DN;at outlet,the straight pipe at least 5×DN;
- If at the upstearm of flowmeter,there are values,elbow,the straight must need 15×DN;
- Pls installa the shut-off value at both front and behind of flow meter;
4.Installation advance
- The installation location for you reference
D.[Company Info]
- Our Company is Top 10 Manufacture on Alibaba;
- We have about 30 years of experience in Manufacture;
- Our products have been exported to more 100 coutries and area;
- ISO,CE and more ceterficates for you reference;
- Patent technology and more than 3 years working life
