Quick Details
-

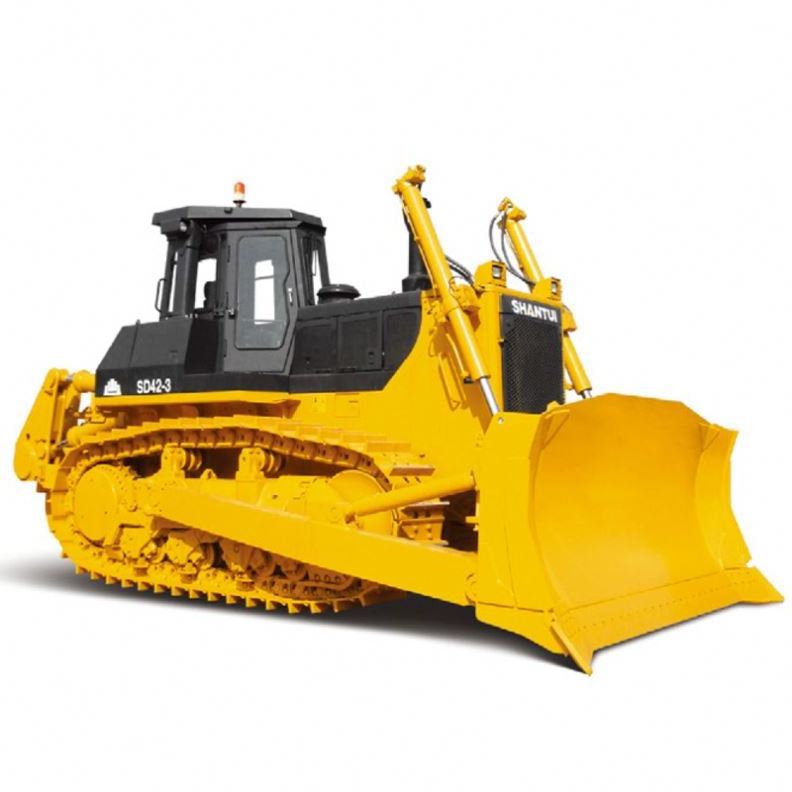

Brand Name:
-
SHANTUI
-
Model Number:
-
SD42-3
-
Dimension(Long * Breadth * High):
-
9629*4300*3875mm
-
After Warranty Service:
-
Spare parts
Quick Details
-
Machine Weight:
-
52000 KG
-
Dozing Capacity:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD42-3
-
Dimension(Long * Breadth * High):
-
9629*4300*3875mm
-
After Warranty Service:
-
Spare parts
Power System
The cu.mm.ins KTA19 vertical 4-storke turbocharged engine features strong power.
The three-element single-stage single-phase hydraulic torque converter features high operating efficiency.
Drive system
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
The ergonomic cab features large space, excellent vision, and good airtightness.
The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to realize low vibrating noise.
The A/C and heating system, the intelligent display and control terminal with integrated instruments, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
The safety passage system of the machine guarantees the driver's safety.
Working adaptability
The undercarriage system adopts type K track roller elastic suspension to achieve higher ground area, higher traction force, and more powerful traveling of machine on uneven roads.
The rollover protection structure is installed on the main frame to achieve higher strength and reliability.
The articulated points of the blade are moved forward to realize more reasonable force application and long life of cylinder.
The pivot shaft suspension and the independently installed final drive achieve higher design safety and reliability.
Easy maintenances
The structural parts inherit the excellent quality of Shantui mature products.
The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.
Contact Humphrey for more information
TEL/WhatsApp:
+86 18684860857
Wechat:
18684860857
E-mail:
Humphrey@ sinomada.com
| Parameter name | SD42-3(STANDARD) |
| Performance parameters | |
| Operating weight (Kg) | 52000 (Ripper not include) |
| Ground pressure (kPa) | 123 |
| Engine | |
| Engine model | Chongqing cu.mm.ins KTA19-C525 |
| Rated power/rated speed (kW/rpm) | 340/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 9629*4300*3875 |
| Driving performance | |
| Forward speed (km/h) | 0~12.2/0~14.8 |
| Reversing speed (km/h) | 0~12.2/0~14.8 |
| Chassis System | |
| Center distance of track (mm) | 2260 |
| Width of track shoes (mm) | 610 |
| Ground length(mm) | 3560 |
| Tank capacity | |
| Fuel tank (L) | 650 |
| Working device | |
| Blade type | Semi-U |
| Digging depth (mm) | 700 |
| Ripper type | Single shank |
| Ripping depth (mm) | 1400 |
