Quick Details
-
Working frequency:
-
UHF 13-48 channel arbitrary choice
-
Channel bandwidth:
-
8MHz
-
Output power:
-
800W
-
Output impedance:
-
50Ω
-
Output interface:
-
L27
-
Output load return loss:
-
Normal
-
operation:
-
-32dB
-
Allowed operation:
-
-20dB
-
Power input level:
-
0dBm
-
Amplifier input impedance:
-
50Ω
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YXHT
-
Model Number:
-
800W Digital TV Transmitter
-
Working frequency:
-
UHF 13-48 channel arbitrary choice
-
Channel bandwidth:
-
8MHz
-
Output power:
-
800W
-
Output impedance:
-
50Ω
-
Output interface:
-
L27
-
Output load return loss:
-
Normal
-
operation:
-
-32dB
-
Allowed operation:
-
-20dB
-
Power input level:
-
0dBm
-
Amplifier input impedance:
-
50Ω

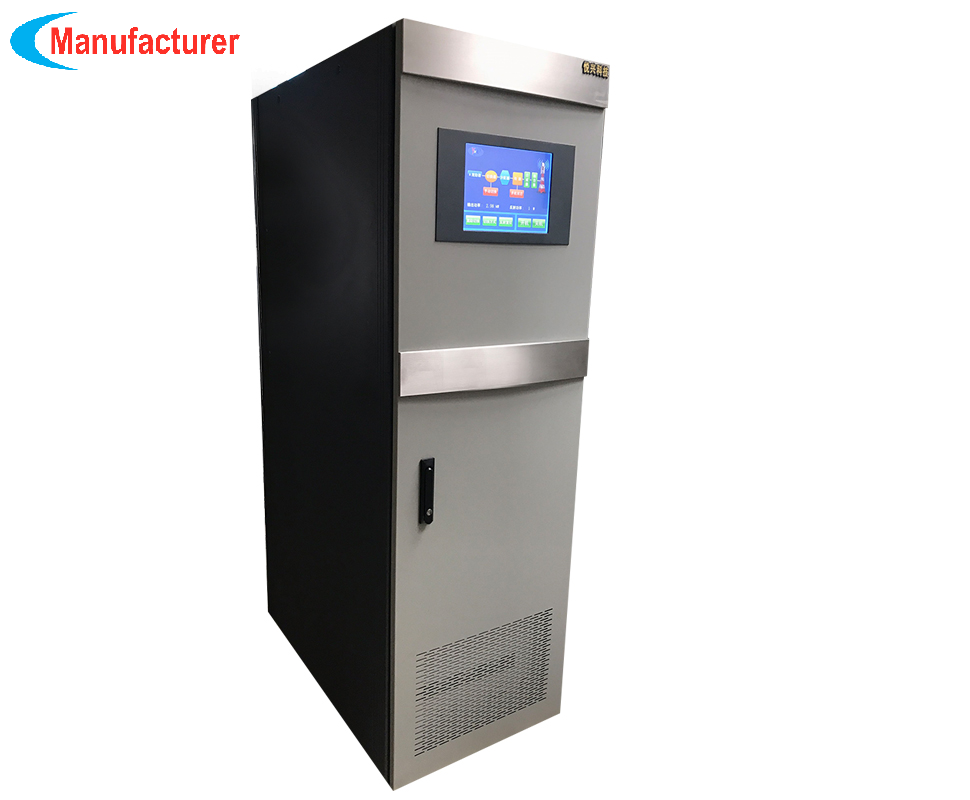

800W Digital TV Transmitter
Overview:
This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 800W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 800W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
Warranty：The warranty of all transmitters in our factory is 6 years.
Product Description
800W Digital TV Transmitter
1. Working frequency: UHF 13-48 channel arbitrary choice
2. Channel bandwidth: 8MHz
3. Output power: 800W
4. Output impedance: 50Ω
5. Output interface: L27
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB
7. Power input level: 0dBm
8. Amplifier input impedance: 50Ω
9. Amplifier input interface: L16
10.Useless transmission: ≤-60dB
11.Band fluctuations:±0.5dB
12.Band shoulder:better than 36dB
2. Channel bandwidth: 8MHz
3. Output power: 800W
4. Output impedance: 50Ω
5. Output interface: L27
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB
7. Power input level: 0dBm
8. Amplifier input impedance: 50Ω
9. Amplifier input interface: L16
10.Useless transmission: ≤-60dB
11.Band fluctuations:±0.5dB
12.Band shoulder:better than 36dB
Features:
Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.
Technical Specifications:
|
1. Working frequency
|
UHF 13-48 channel arbitrary choice
|
|
2. Output power
|
0~800W
|
|
3. Output impedance
|
50Ω
|
|
4. Channel bandwidth
|
8MHz
|
|
5. Output interface
|
Φ40
|
|
6. Output load return loss
|
Normal
|
|
7. operation
|
-32dB
|
|
8. Allowed operation
|
-20dB
|
|
9. Power input level
|
0dBm
|
|
10. Amplifier input impedance
|
50Ω
|
|
11.Amplifier input interface
|
L16
|
|
12. Useless transmission
|
≤-60dB
|
|
13. Band fluctuations
|
±0.5dB
|
|
14. Band shoulder
|
better than 36dB
|
|
15. MER
|
better than 30dB
|
|
16. Size
|
4U,19-inch standard
|
|
17. Weight
|
45KG
|
Click the picture below, you may need the panel antenna together.
