Quick Details
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD16
-
Dimension(Long * Breadth * High):
-
4849X3060X2988MM
-
Overall dimensions (mm):
-
5490*3725*3402
-
Operating weight (kg):
-
23450
-
Engine net power (kw/hp):
-
162/220
-
Minimum turning radius (mm):
-
3300
-
Ground specific pressure (kpa):
-
66
-
Ground clearance (mm):
-
405
-
Engine model:
-
shangchai
-
Working pump:
-
GEAR PUMP
-
Transmission form:
-
Hydraulic mechanical transmission
-
Working capacity (m3):
-
6.4 / 4.7 / 7.5 / 7.0
Quick Details
-
Machine Weight:
-
13.7
-
Dozing Capacity:
-
3.7for straight tilting blade 3.1 for angle blade
-
Place of Origin:
-
China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD16
-
Dimension(Long * Breadth * High):
-
4849X3060X2988MM
-
Overall dimensions (mm):
-
5490*3725*3402
-
Operating weight (kg):
-
23450
-
Engine net power (kw/hp):
-
162/220
-
Minimum turning radius (mm):
-
3300
-
Ground specific pressure (kpa):
-
66
-
Ground clearance (mm):
-
405
-
Engine model:
-
shangchai
-
Working pump:
-
GEAR PUMP
-
Transmission form:
-
Hydraulic mechanical transmission
-
Working capacity (m3):
-
6.4 / 4.7 / 7.5 / 7.0
Haitui Cheap Mini Bulldozer Hd16/Sd16/D6 Bulldozer Price
Main Features:

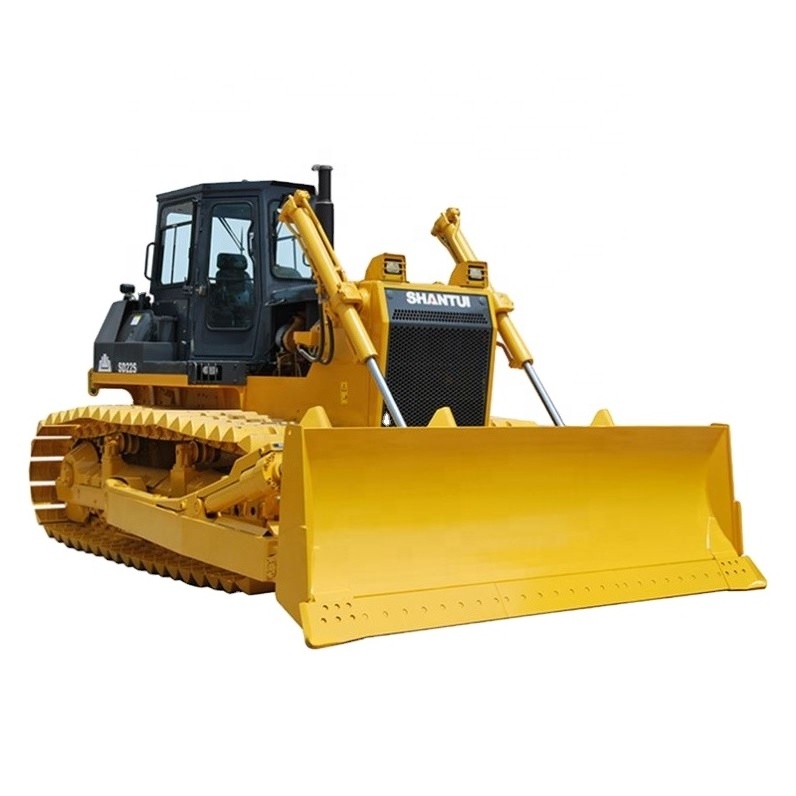

SD22 series bulldozer adopts Shantui’s patented technologies, including central lubrication, central pressure measurement, and automatic track tensioning technologies, and won the sole national golden quality award in China’s bulldozer industry. With multiple working devices and cabs, this product can meet the operation demands for diversified working conditions and is an ideal high-efficiency machine for earth-moving operations and bulk material handling.
Specifications:
| Overall dimensions (mm) | 5490*3725*3402 |
| Performance parameter | |
| Operating weight (kg) | 23450 |
| Engine net power (kw/hp) | 162/220 |
| Minimum turning radius (mm) | 3300 |
| Ground specific pressure (kpa) | 66 |
| Engine | |
| Engine model | Weichai WP12G240E306 / Chongfa QSNT-C235S30 |
| Form | Inline, direct injection, water cooling, four stroke, supercharged intercooler |
| Number of cylinders × bore diameter × stroke (mm × mm) | 6×126×155/6×140×152 |
| Total displacement (L) | 11.596/14.01 |
| Rated power / rated speed (kw / rpm) | 175/1800 |
| Maximum torque (N.m/r/min) | 1250/1200-1300,1085/1300 |
| Walking performance | |
| Forward/reverse speed (km/h) | F1:0-3.6 F2:0-6.5 F3:0-11.2 R1:0-4.3 R2:0-7.7 R3:0-13.2 |
| Climbing ability (deg) | 30 |
| Ground clearance (mm) | 405 |
| Transmission system | |
| Transmission form | Hydraulic mechanical transmission |
| Number of shift gears F/R | F3/R3 |
| Chassis system | |
| Suspension method | Octopus swing / Balance beam suspension structure |
| Track center distance (mm) | 2000 |
| Track shoe width (mm) | 560/610/660 |
| Grounding length (mm) | 2730 |
| Number of track shoes (single side / piece) | 38 |
| Chain track pitch (mm) | 216 |
| Number of wheels (one side) | 2 |
| Number of rollers (one side) | 6 |
| Working hydraulic system | |
| Working pump | GEAR PUMP |
| Lift cylinder bore (mm) | φ120 |
| Tilt cylinder cylinder bore (mm) | φ200 |
| Fuel tank capacity | |
| Fuel tank (L) | 450 |
| Working hydraulic tank (L) | 110 |
| Working equipment | |
| Blade type | Straight tilting blade/angle blade/U blade/Semi-U blade |
| Blade width (mm) | 3725 / 4365 / 3800 / 3725 |
| Blade height (mm) | 1315 / 1055 / 1343 / 1374 |
| Working capacity (m3) | 6.4 / 4.7 / 7.5 / 7.0 |
| Blade lift height (mm) | 1210 |
| Shovel depth (mm) | 540 |
| Ripper type | 1-Shank ripper / 3-Shank ripper |
| Loose depth (mm) | 1-Shank 695 / 3-Shank 666 |
| Ripper lifting height (mm) | 1-Shank 515 / 1-Shank 555 |
