Quick Details
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
380V/240V/220V/415V
-
Dimension(L*W*H):
-
600*600*110
-
Weight:
-
150 KG
-
Product name::
-

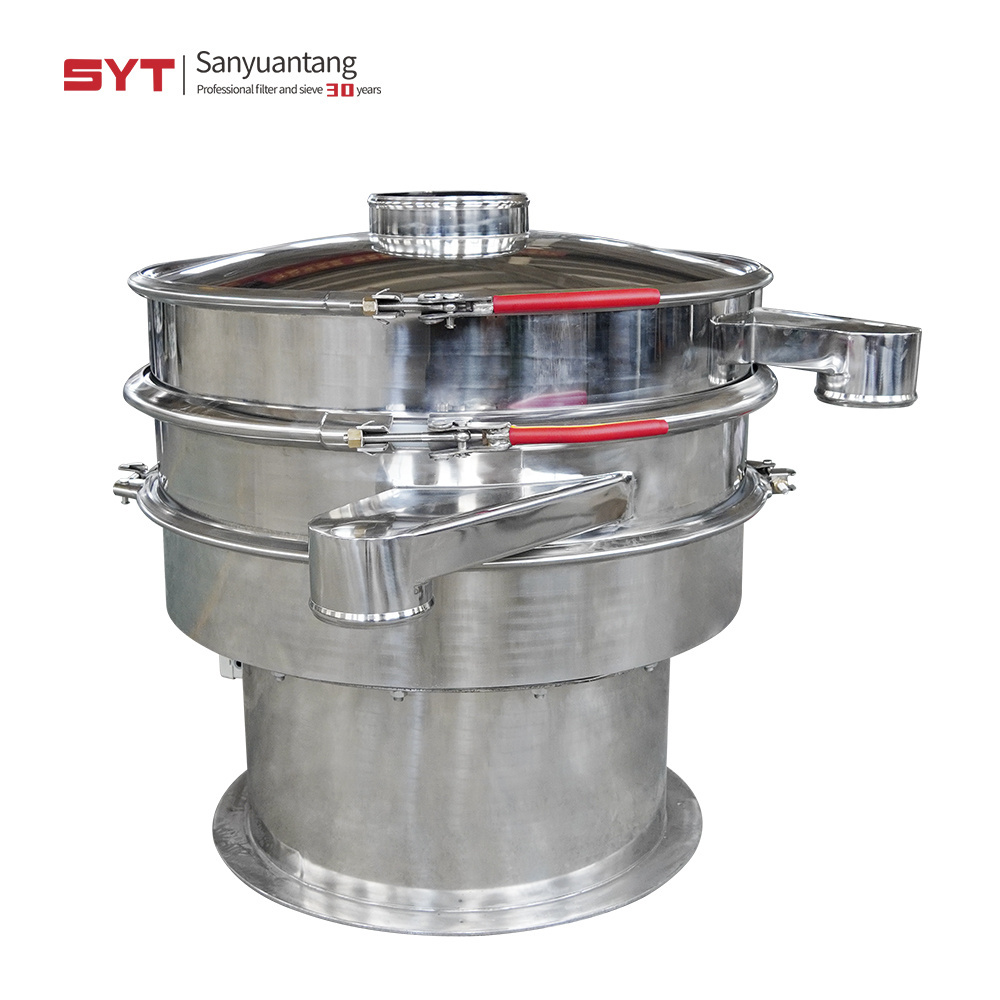

Rotary Vibrating screen
-
Keyword:
-
Rotary Vibrating screen
-
Motor:
-
YZUL
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
10kg-2000kg
-
Diameter:
-
600mm-1800mm
-
Screen Mesh:
-
1-635 mesh
-
Used for:
-
powder screening
-
Feature:
-
screening materials
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
380V/240V/220V/415V
-
Dimension(L*W*H):
-
600*600*110
-
Weight:
-
150 KG
-
Product name::
-
Rotary Vibrating screen
-
Keyword:
-
Rotary Vibrating screen
-
Motor:
-
YZUL
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
10kg-2000kg
-
Diameter:
-
600mm-1800mm
-
Screen Mesh:
-
1-635 mesh
-
Used for:
-
powder screening
-
Feature:
-
screening materials
Product description
Rotary vibrating screen of description:
By means of unbalance hammer installed along the motor shaft, DY series three dimensional vibrating screens convert the rotation of the motor into a 3-D movement, horizontal, vertical and inclined movement, and then the 3-D movement is transferred to the screen surface, which leads to an involutes movement of the materials on the screen surface. That's why it is also called the rotary vibrating screen. Rotary vibrating screen can handle the material into the precision screening or probability screening by adjust the upper and lower ends of the phase angle of the hammer so as to change the movement trajectories of materials on the screen surface. It has the feature of long trajectory of materials and high utilization rate of screen surface.
Product Feature :
1.Easy to change the net, simple operation, convenient cleaning.
2.Unique frame design, long screen use time. It only takes 3-5 minutes to change the network.
3.Small size, does not take up space, easy to move
4.High efficiency, exquisite design durable, any powder, mucus can be screened
5.Automatic removal of impurities and coarse material, can be continuous operation
6. The material can be customized according to the material screened, including carbon steel and 304/316 stainless steel.
3.Small size, does not take up space, easy to move
4.High efficiency, exquisite design durable, any powder, mucus can be screened
5.Automatic removal of impurities and coarse material, can be continuous operation
6. The material can be customized according to the material screened, including carbon steel and 304/316 stainless steel.
|
Model
|
Effective diameter
|
Screen size
|
Layer
|
Power(KW)
|
|
SY-400
|
380 mm
|
2-500 mesh
|
1-3 layers
|
0.25 kw
|
|
SY-600
|
580 mm
|
|
1-3 layers
|
0.55 kw
|
|
SY-800
|
780 mm
|
|
1-4 layers
|
0.75 kw
|
|
SY-1000
|
970 mm
|
|
1-4 layers
|
1.1 kw
|
|
SY-1200
|
1170 mm
|
|
1-5 layers
|
1.5 kw
|
|
SY-1500
|
1470 mm
|
|
1-5 layers
|
2.2 kw
|
|
SY-1800
|
1770 mm
|
|
1-5 layers
|
3 kw
|
Product show
FAQ
Q: What are you mainly specilized in?
A: Our company is a professional manufacture of vibrating screen sifter equipments(like rotary vibrating
screen,ultrasonic sieving machine,linear vibrating screen,test sieve machine,trumbler screem,drum screen,
direct discharge screen,airflow sieving machine,450 filter machine and so on);conveying equipment (like
screw conveyor,bucket elevator,vertical vibration elevator and so on);honey machine(honey processing
machine,honey filling machine)
Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.
Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
A:Ususlly 7-10 working days,if the order is large,the time should be longer.
Q:What's the advantage compared to other suppliers?
A:We are a factory,We have business directly with our customers,there isn't any link between customers,so we can offer competitive
price for you.
A: Our company is a professional manufacture of vibrating screen sifter equipments(like rotary vibrating
screen,ultrasonic sieving machine,linear vibrating screen,test sieve machine,trumbler screem,drum screen,
direct discharge screen,airflow sieving machine,450 filter machine and so on);conveying equipment (like
screw conveyor,bucket elevator,vertical vibration elevator and so on);honey machine(honey processing
machine,honey filling machine)
Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.
Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
A:Ususlly 7-10 working days,if the order is large,the time should be longer.
Q:What's the advantage compared to other suppliers?
A:We are a factory,We have business directly with our customers,there isn't any link between customers,so we can offer competitive
price for you.
Contact us
The proper selection of vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact materials part is 304 stainless steel or all carbon steel?
