Products

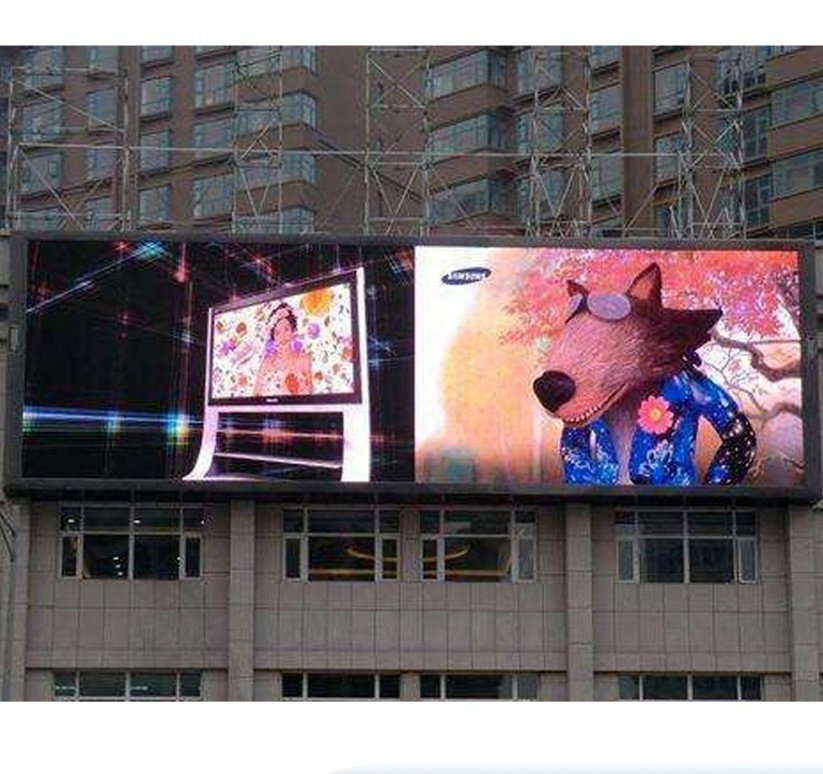

960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5
960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5
960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5
960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5
960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5
960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5
960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5
960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5

960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5

FOB Reference Price: Get Latest Price
≥1 Square meters
US $500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Color:
full color
Panel Size:
320x160mm, 320x160mm
Place of Origin:
Guangdong, China
Model Number:
PG-OFC-P5
HS Code:
8528591090
Resolution:
64x32
Led Chip:
Taiwan Epistar
Protect grade:
IP65
Certification:
CE&ROHS
Warranty:
5 years
Cabinet size:
960*960mm
Refresh rate:
1920Hz
Product name:
outdoor advertising panel led p5

Quick Details

Application:
Outdoor
Type:
LED
Brand Name:
Proge
Color:
full color
Panel Size:
320x160mm, 320x160mm
Place of Origin:
Guangdong, China
Model Number:
PG-OFC-P5
HS Code:
8528591090
Resolution:
64x32
Led Chip:
Taiwan Epistar
Protect grade:
IP65
Certification:
CE&ROHS
Warranty:
5 years
Cabinet size:
960*960mm
Refresh rate:
1920Hz
Product name:
outdoor advertising panel led p5

960x960mm waterproof screen cabinet 7000nits high brightness digital led video wall outdoor advertising panel led p5

Feature
1. Full-color LED display is composed of RGB trichromatic leds, 36 bit color can be shown, and the real-time,

synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content.
2 .Screen after use for a long time still can keep perfect quality and white balance and enough brightness.
3. LED optical design, high precision, the RGB tricolor LED the far field of view perfect match, in order to make sure

from any Angle can be the perfect reappearance of video picture
4. High quality LED chips, anti static, high wavelength stability;
5. Advanced packaging equipment, guarantee the quality and life expectancy;
6. Has a large Angle, color uniformity, low failure rate and easy maintenance.
7. Standard processing technology to ensure that each row and each column tube at the same level,

ensure the stability of the clear picture.

Technical Parameters

Item Specification
Material Iron/Steel
Color Black
Size 960*960mm
Resolution  rate 96*96
Module  quantity 6*6pcs
Density 40000dots/m2
White  balance  luminance 6000cd/m2
Color  temperature 9300K
Horizontal  view  angel 160
Vertical  view  angel 140
Protection  grade Front/Real:IP67/IP65
Non-Flatness < 1mm
Module  interval < 1mm
Weight 55kg
Maximal  power/m2 1000W
Frame  frequency ≥ 60Hz/s
Refresh  frequency 1000-1500Hz
Gray  grade 1073741824
Luminance  adjusted 256  grade  by  auto-optic/color  & 8  grade  by  hand
Input  signal RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc
Control  system

PCTV  non-linear  editing  card  +  DVI  display  card  +

main controller  card  +  optic  fiber  transmisson(Optional)

MTBF > 5000h
Life-span > 100000h
Speckles  rate < 0.0001
